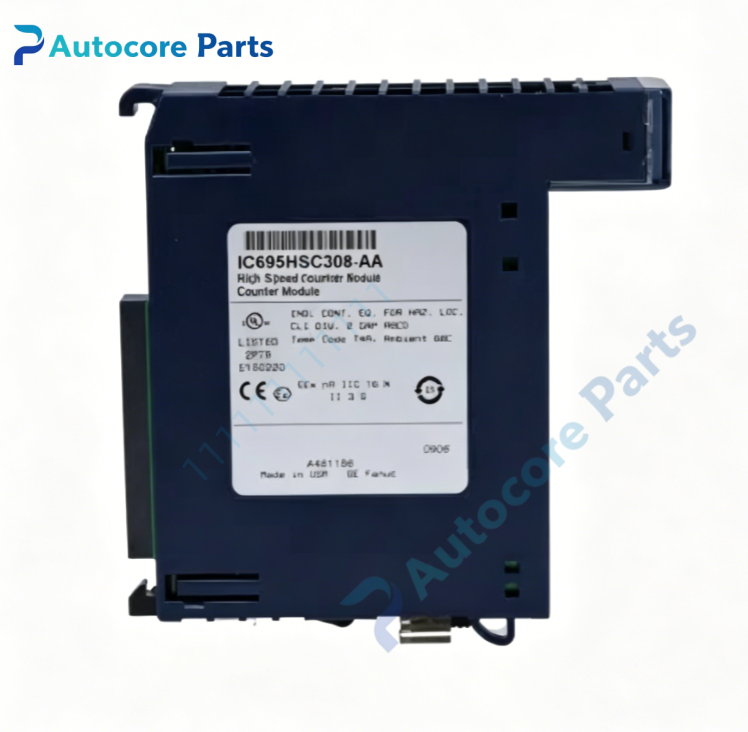

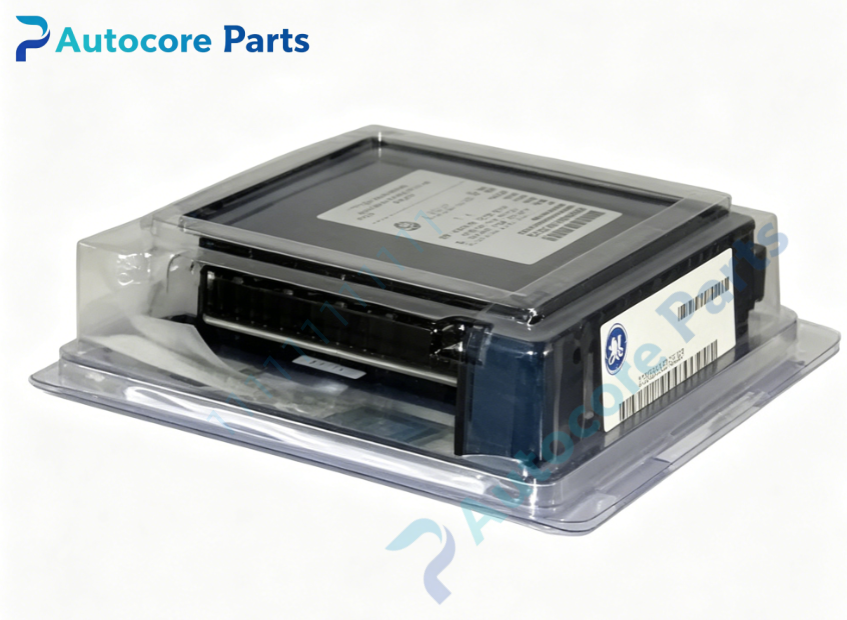

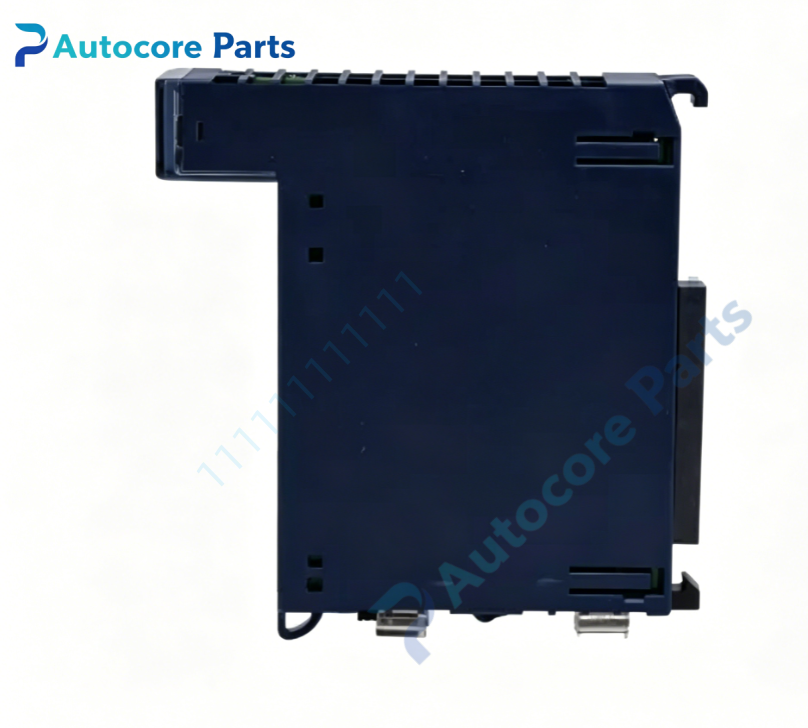

GE Fanuc IC695HSC308 High Speed Counter Module

Technical SpecificationsModel：IC695HSC308 Brand：GE Fanuc Product Type: Single-slot plug-in high speed counter module for PACSystems RX3i universal backplane

Module Feature:Function: High-speed counter module for motion control, captures incremental encoder pulse signals and executes hardware-level counting, programmable limit switch and camming function independent of PLC scan cycle. Channels:8 independent counter channels,16 inputs,14 outputs Max count frequency:1.5MHz, 750kHz for Type C or custom counter mode Count range:32-bit signed integer from -2147483648 to 2147483647 Counter modes: Type A,B,C,D,E,Z and user-defined, support quadrature A/B encoder Input voltage:5VDC or 12~24VDC, single-ended / differential signal LED indicators: MODULE OK, FIELD STATUS, channel diagnostic lights Hot-swap capable under qualified system configuration Hardware self-diagnosis: overrange detection, input wiring fault, backplane bus monitoring Programming software: Proficy Machine Edition

Electrical ParametersBackplane supply:+5VDC 94mA max; +3.3V 561mA max Power consumption:Max 3.2W

Mechanical & Structure:Mounting:Plug-in installation into RX3i universal backplane single slot Weight:0.38kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695HSC308 belongs to GE Fanuc PACSystems RX3i I/O family. Compatible with RX3i CPU, power supply and other RX3i I/O modules. Widely used for packaging machine, material handling and positioning motion control systems.

FunctionIC695HSC308 is 8-channel high speed counter module for RX3i PACSystems. It processes high-speed encoder pulse signals by hardware, avoiding PLC scan delay impact. It supports programmable limit switch and electronic cam function. It can capture position value and trigger output instantly according to preset count value. Built-in channel diagnostics quickly locate field wiring fault. Hot-swap capability supports module replacement without rack shutdown.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack backplane power. Insert IC695HSC308 into RX3i backplane slot and lock retainer. Connect encoder and field control wiring to terminal block. Configure counter mode, frequency filter and cam parameters in Proficy Machine Edition. Power on and verify pulse counting and hardware output action.

InterfaceRX3i backplane gold-edge connector,field encoder terminal block,on-board MODULE OK / FIELD STATUS LED indicators for GE Fanuc IC695HSC308.

DiagnosticModule cannot online:Check backplane power,module seating and backplane contact condition. Pulse counting abnormal:Inspect encoder wiring,signal shielding and input voltage. FIELD STATUS alarm:Open circuit,short circuit or overrange pulse input fault.

Product BriefIC695HSC308 is GE Fanuc legacy PACSystems RX3i 8-channel high speed counter module,with 1.5MHz pulse acquisition and electronic cam function for encoder position measurement,discontinued motion control spare card.
