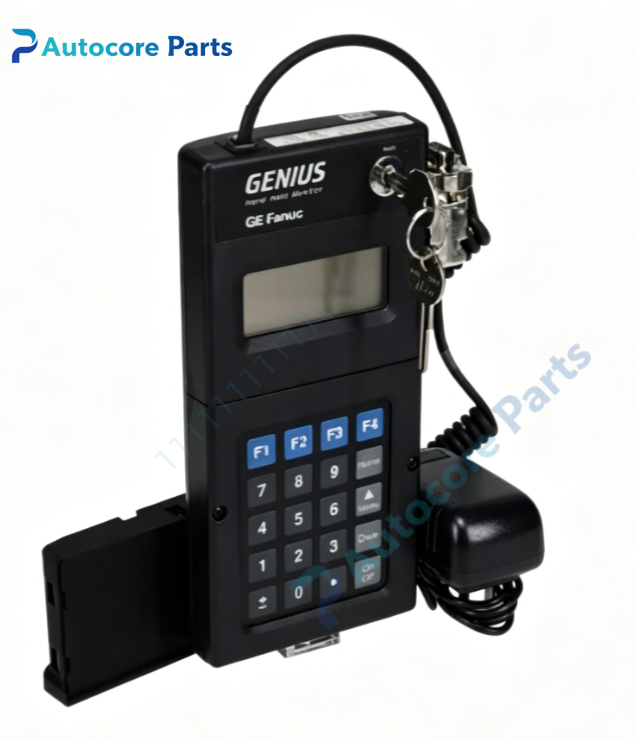

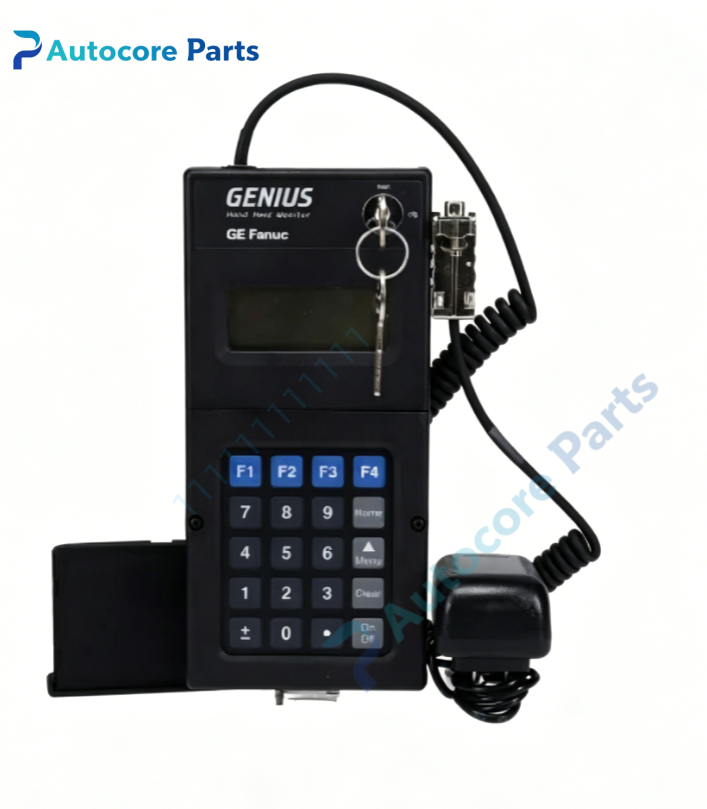

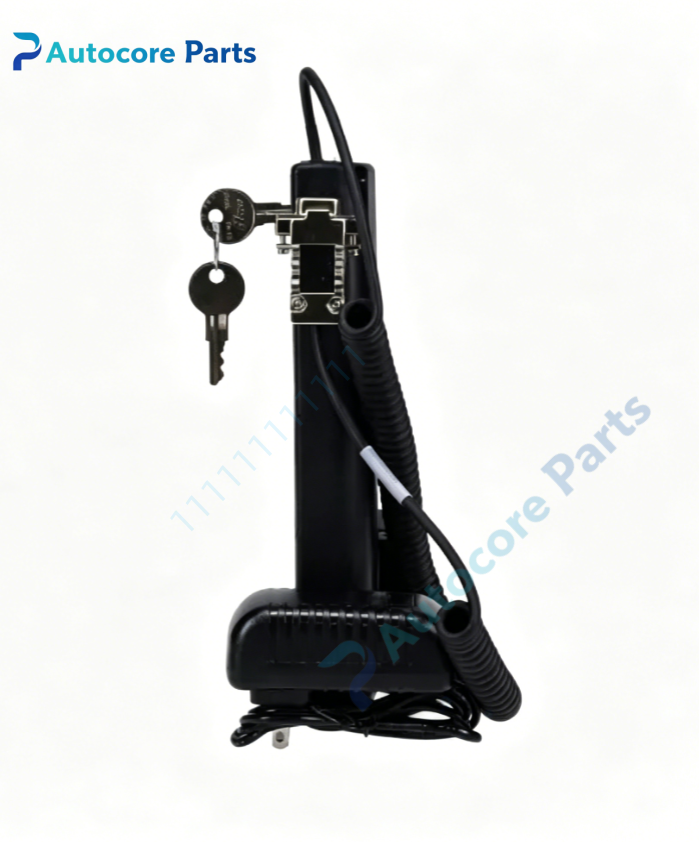

GE Fanuc IC660HHM501 Hand Held Monitor

Technical SpecificationsModel：IC660HHM501 Brand：GE Fanuc Product Type: Portable handheld monitor for Genius distributed I/O system

Module Feature:Function: Portable on-site service tool for Genius bus network, used for Genius I/O block configuration, real-time signal monitoring, bus diagnosis and I/O force operation without PC. Display:4-line ×16-character LCD screen, multi-language support: English, Spanish, French, Italian Keypad:20-key sealed membrane keypad, security key switch for access control Power supply: Built-in rechargeable battery or external AC adapter Communication interface: Genius bus dedicated connection cable Supported operation: Read/write I/O status, force discrete outputs, check bus communication, view fault codes, set Genius block address Versions: B/D/E/G different firmware revisions Hardware self-diagnosis: Genius bus link test, I/O status reading and internal device self-check

Electrical ParametersBattery: Rechargeable NiCd battery pack External adapter input:115/230VAC

Mechanical & Structure:Mounting: Handheld portable, with protective leather carrying case Weight:0.73kg Protection class:IP20 for front panel

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC660HHM501 belongs to GE Fanuc Genius distributed I/O family. Compatible with all Genius I/O blocks including IC660BBD, IC660BMD series. Widely used for on-site commissioning, troubleshooting and maintenance of Genius bus distributed automation system.

FunctionIC660HHM501 is portable Genius handheld monitor. It connects directly to Genius bus or individual Genius I/O block. Field technicians can check I/O signal status, modify bus parameters and perform fault diagnosis on site without laptop. Security key switch prevents unauthorized modification of control parameters.

InstallationFollow lockout/tagout safety procedure before operation. Connect IC660HHM501 to Genius bus or I/O block via dedicated communication cable. Power on handheld unit via battery or AC adapter. Select bus address and enter diagnostic menu. Verify I/O reading and bus communication.

InterfaceGenius bus dedicated port, external DC charging port,on-board LCD screen and membrane keypad for GE Fanuc IC660HHM501.

DiagnosticCannot connect to Genius bus:Check communication cable, bus terminator and bus address. Screen no display:Inspect battery charge status or AC adapter power. I/O readback abnormal:Genius bus noise, wrong block address or field wiring fault.

Product BriefIC660HHM501 is GE Fanuc legacy Genius handheld monitor,used for on-site commissioning, signal monitoring and fault diagnosis of Genius distributed I/O network,discontinued industrial maintenance spare tool.
