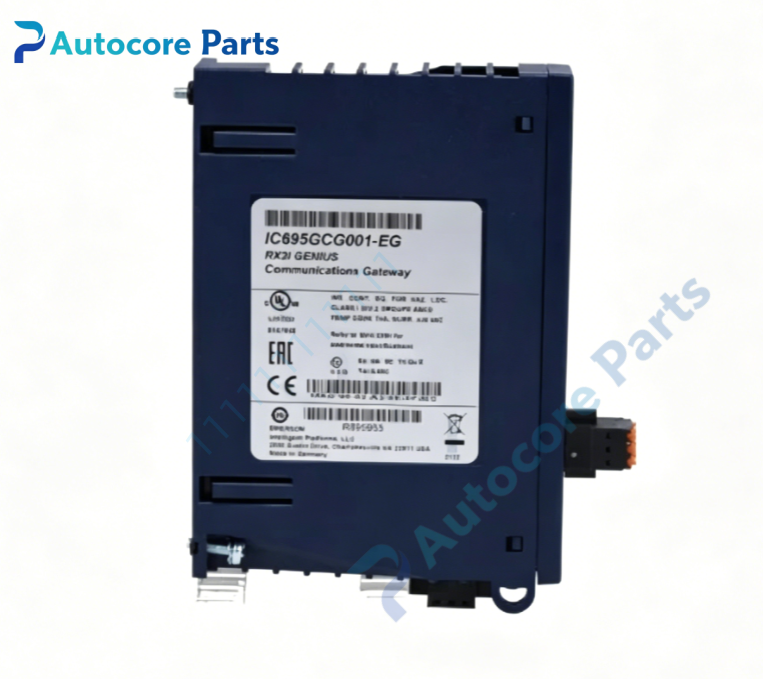

GE Fanuc IC695GCG001 Communications Gateway

Technical SpecificationsModel：IC695GCG001 Brand：GE Fanuc Product Type: Genius communications gateway module for PACSystems RX3i system

Module Feature:Function: Bridge module converting Genius serial bus to PROFINET IO network, scans Genius distributed I/O blocks and exchanges real-time I/O data with PROFINET IO controller. Ports: Dual 10/100Mbps RJ45 Ethernet ports, Genius bus terminal connector Network redundancy: Support Media Redundancy Protocol (MRP) for ring topology Genius bus: Simplex Genius serial bus interface SD card slot: For firmware and configuration backup USB port: Local service and firmware update LED indicators: MODULE OK, GENIUS BUS, LAN, STATUS diagnostic lights Hardware self-diagnosis: Genius bus integrity, Ethernet link monitoring, I/O watchdog and internal circuit fault detection Programming software: Proficy Machine Edition

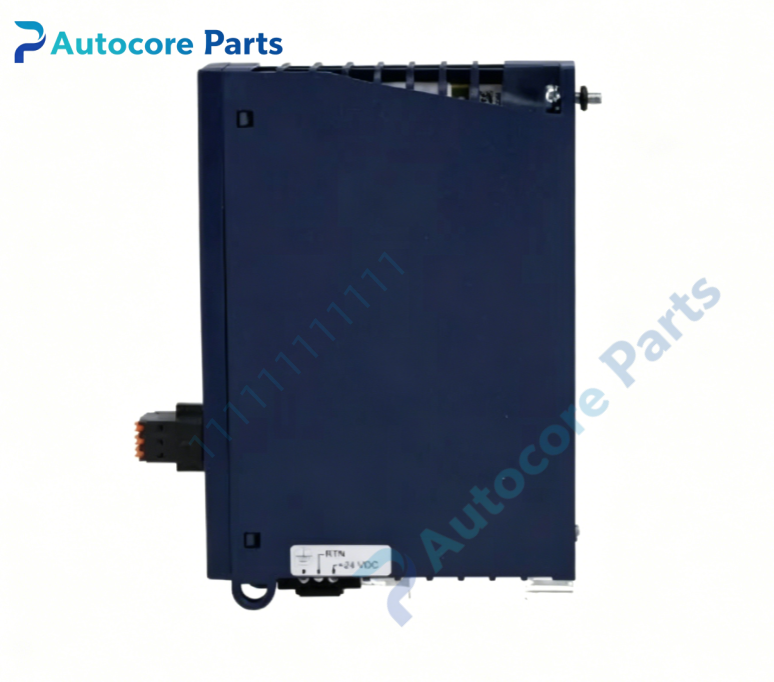

Electrical ParametersExternal power supply:24VDC, 0.5A max This module does NOT draw power from RX3i backplane

Mechanical & Structure:Mounting: RX3i backplane rightmost expansion slot or standalone panel mount Dimension:177.2mm ×51mm ×35mm Weight:0.28kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695GCG001 belongs to GE Fanuc PACSystems RX3i family. Compatible with Genius I/O blocks and RX3i rack system. Widely used in factory and process automation to migrate legacy Genius distributed I/O into modern PROFINET IO network.

FunctionIC695GCG001 is Genius communications gateway for GE Fanuc PACSystems RX3i. It acts as PROFINET IO device and Genius bus controller simultaneously. It collects data from Genius remote I/O blocks and transmits data to PROFINET IO controller. Dual Ethernet ports support ring redundancy via MRP. SD card saves configuration for quick module replacement. Front LEDs show bus, network and module health status.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off power supply. Install IC695GCG001 to RX3i expansion slot or cabinet panel. Connect 24VDC external power, Genius bus wiring and Ethernet cables. Configure Genius device list and PROFINET parameters in Proficy Machine Edition. Power on and verify Genius bus scan and PROFINET cyclic data exchange.

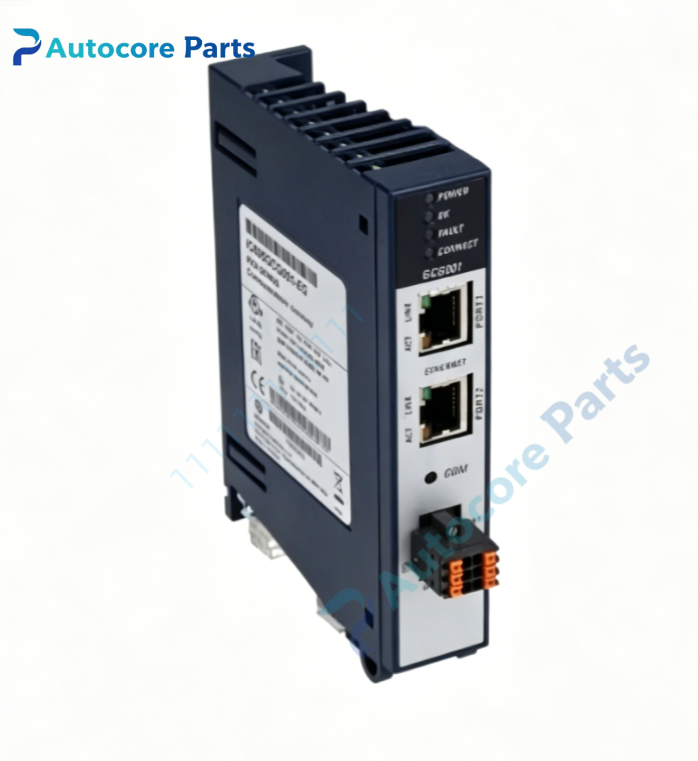

InterfaceGenius bus terminal block,dual RJ45 Ethernet port,SD card slot,USB service port,on-board MODULE OK / GENIUS / LAN LED indicators for GE Fanuc IC695GCG001.

DiagnosticModule cannot online:Check 24VDC external power supply and wiring condition. Genius bus communication lost:Inspect bus cable,terminator and Genius address setting. PROFINET link fault:Check Ethernet cable,network topology and MRP configuration.

Product BriefIC695GCG001 is GE Fanuc legacy PACSystems RX3i Genius to PROFINET IO communications gateway,used to connect classic Genius distributed I/O to PROFINET network,discontinued communication spare card.
