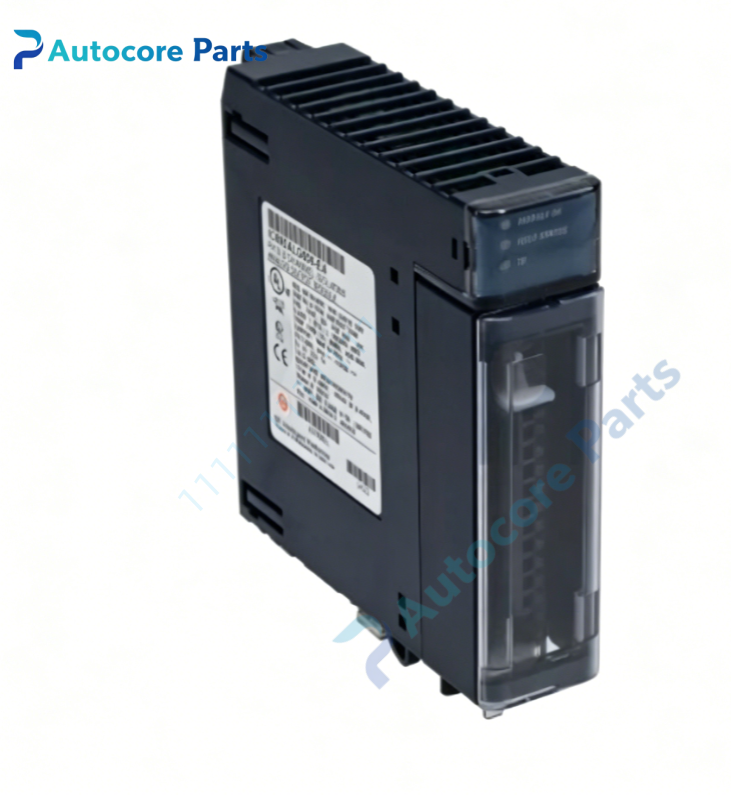

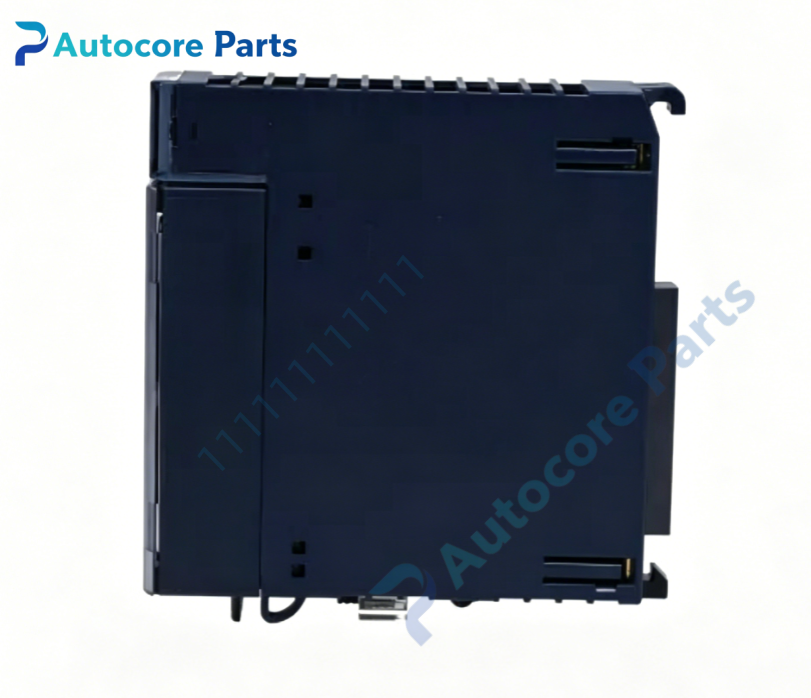

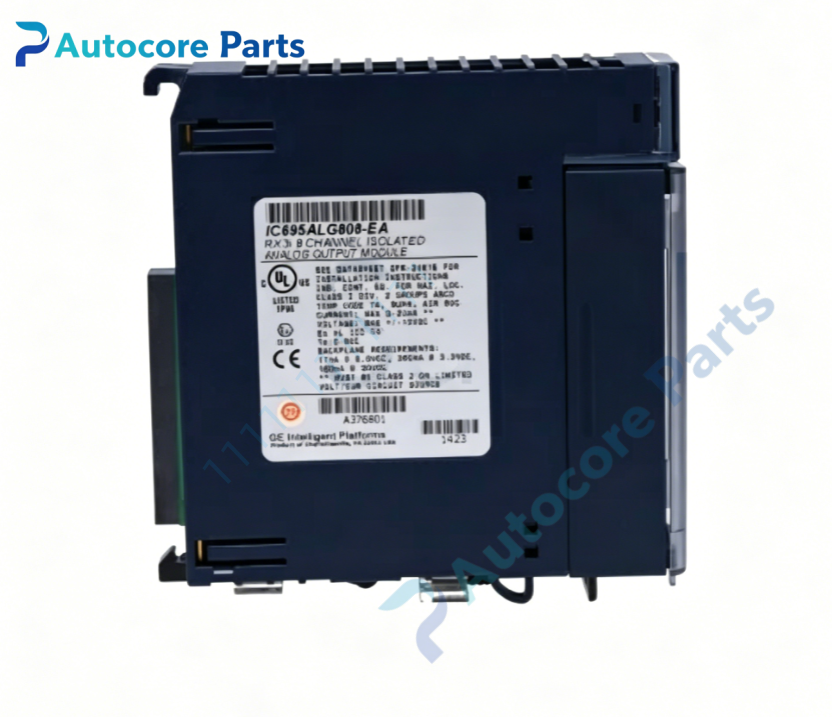

GE Fanuc IC695ALG808 Analog Output Module

Technical SpecificationsModel：IC695ALG808 Brand：GE Fanuc Product Type: Single-slot plug-in analog output module for PACSystems RX3i universal backplane

Module Feature:Function: Convert digital values from RX3i CPU to standard analog voltage and current signals for control valves, variable frequency drives and field actuators. Channels:8 analog output channels Signal Ranges: ±10V,0~10V voltage; 0~20mA,4~20mA current Resolution:16-bit D/A conversion Isolation: Group isolation between field side and PLC logic backplane Load capacity: Voltage output ≥1kΩ load; Current output max 750Ω load LED indicators: MODULE OK, channel fault diagnostic lights Hot-swap replacement available under qualified system configuration Hardware self-diagnosis: overrange, open load, short circuit, backplane communication monitoring Programming software: Proficy Machine Edition

Electrical ParametersBackplane supply:+5VDC, max 300mA Power consumption:Max 3.6W Field actuator power supplied externally

Mechanical & Structure:Mounting:Plug-in installation into RX3i universal backplane single slot Protection class:IP20 Weight:0.36kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695ALG808 belongs to GE Fanuc PACSystems RX3i I/O family. Compatible with RX3i CPU, power supply and other RX3i I/O modules. Widely used for chemical, power plant, water treatment and process automation analog control applications.

FunctionIC695ALG808 is 8-channel 16-bit analog output module for GE Fanuc RX3i PACSystems. It generates standard analog signals to regulate field control devices. Group isolation eliminates ground loop interference between field equipment and PLC. Built-in channel fault detection quickly identifies open load or short circuit wiring issues. Hot-swap capability enables module replacement without rack shutdown.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack backplane power. Insert IC695ALG808 into RX3i backplane slot and lock retainer. Connect shielded control cables to terminal block. Configure signal range and failsafe values in Proficy Machine Edition. Power on and verify analog output performance.

InterfaceRX3i backplane gold-edge connector,field analog output terminal block,on-board MODULE OK / channel status LED indicators for GE Fanuc IC695ALG808.

DiagnosticNo analog output:Check backplane power,field actuator wiring,channel range configuration and load condition. Output signal fluctuation:Inspect cable shielding and grounding wiring. Channel fault alarm:Open load,short circuit or overrange output fault.

Product BriefIC695ALG808 is GE Fanuc legacy PACSystems RX3i 8-channel 16-bit analog output module,for driving process valves and field actuators,discontinued I/O spare card.
