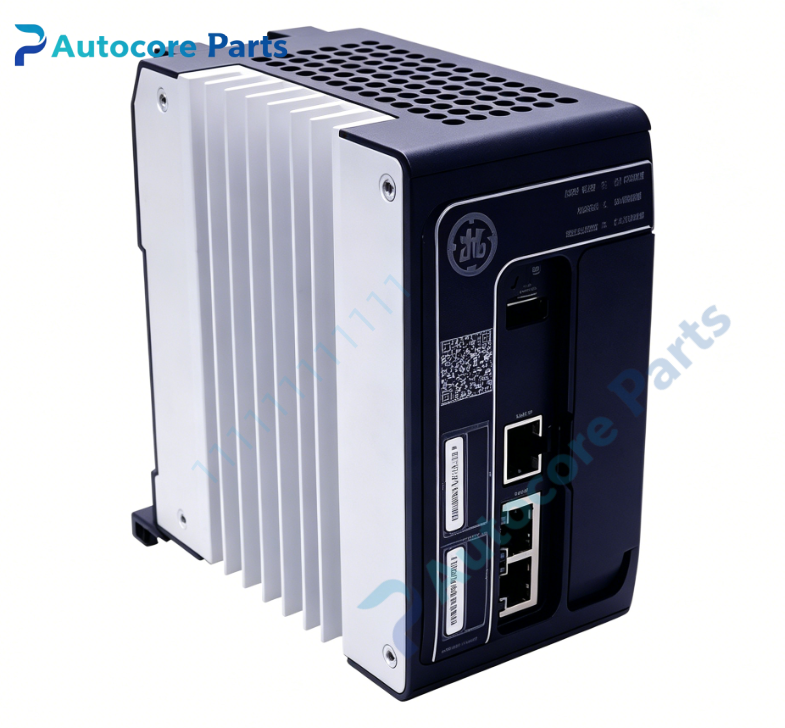

GE Fanuc IC695CPE330 CPU Processor Module

Technical SpecificationsModel：IC695CPE330 Brand：GE Fanuc Product Type: Single-slot plug-in high-performance CPU processor module for PACSystems RX3i universal backplane

Module Feature:Function: High-end main processor controller for PACSystems RX3i rack, executes user control logic, handles large-scale I/O scanning and multi-protocol industrial communication, supports hot standby redundancy. Processor speed:1GHz dual-core microprocessor User memory:64MB configurable program and data memory Max discrete I/O:32K bits Max analog I/O:32K words Onboard ports:3×10/100/1000Mbps Ethernet (LAN1 single RJ45; LAN2 dual RJ45 with embedded switch),1×USB2.0 Type A port,1×CFast memory card slot Supported protocols:Modbus TCP, SRTP, OPC UA, EGD, DNP3, IEC 104, PROFINET LED indicators:CPU OK, RUN, FORCE, OUT EN, SYS FLT, RDSD diagnostic lights Hardware self-diagnosis:Logic execution monitoring, memory check, backplane bus detection, communication port self-test, secure firmware authentication Programming software:Proficy Machine Edition

Electrical ParametersBackplane supply:+5V and +3.3V from RX3i backplane 24VDC relay load:0.625A max (without energy pack) Power consumption:Max 6W

Mechanical & Structure:Mounting:Plug into RX3i universal backplane single slot Weight:0.29kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE, Achilles Level 2 Status:Manufacturer discontinued legacy spare part

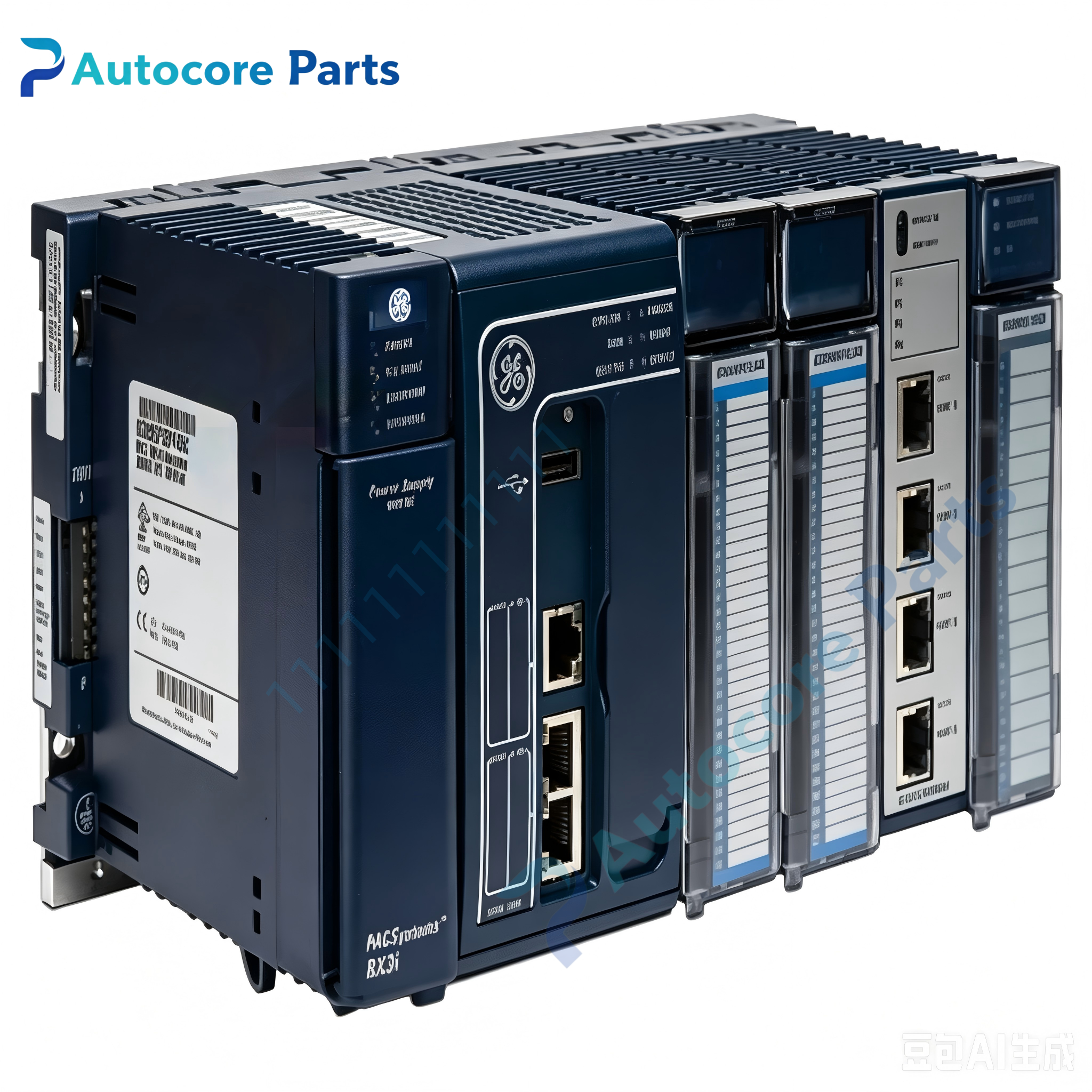

System compatibilityIC695CPE330 belongs to GE Fanuc PACSystems RX3i platform. Compatible with RX3i backplane, power supply and full series IC695 I/O and communication modules. Supports hot standby redundancy configuration, widely used in power, petrochemical and large process control systems requiring high reliability.

FunctionIC695CPE330 is high-performance CPU controller for PACSystems RX3i. It adopts 1GHz dual-core processor and 64MB large user memory for complex control programs. Dual independent gigabit Ethernet network design supports network redundancy and multi-network segmentation. Built-in CFast slot and USB port facilitate program backup, restore and firmware upgrade. It supports hot standby redundancy to improve system availability for critical process applications.

InstallationFollow lockout/tagout safety procedure before installation. Cut off rack backplane power. Insert IC695CPE330 into RX3i backplane slot and lock retainer. Connect gigabit Ethernet, USB and CFast storage as required. Download hardware configuration and user program in Proficy Machine Edition. Power rack on and switch CPU to RUN mode.

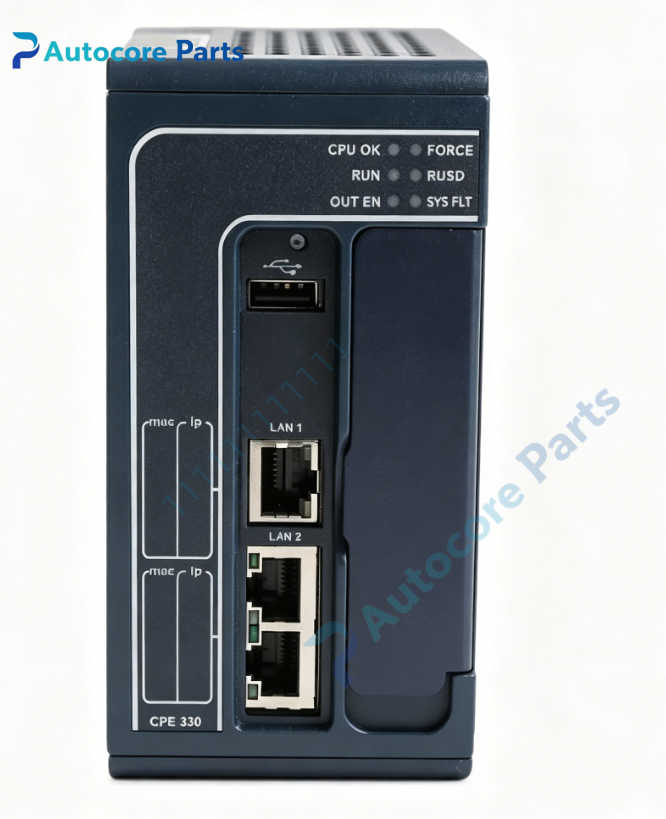

InterfaceRX3i backplane gold-edge connector,3× Gigabit Ethernet RJ45 ports,USB2.0 port,CFast card slot,on-board multi-status LED indicators for GE Fanuc IC695CPE330.

DiagnosticCPU unable to enter RUN mode:Program error, hardware configuration mismatch or I/O module fault. SYS FLT LED lit:Memory fault, backplane communication error or hardware malfunction. Ethernet communication failure:Network cable fault, incorrect IP address or network topology error.

Product BriefIC695CPE330 is GE Fanuc legacy PACSystems RX3i high performance 1GHz dual-core CPU module,with 64MB memory and triple gigabit Ethernet ports,supports hot standby redundancy for critical industrial control,discontinued industrial CPU spare card.
