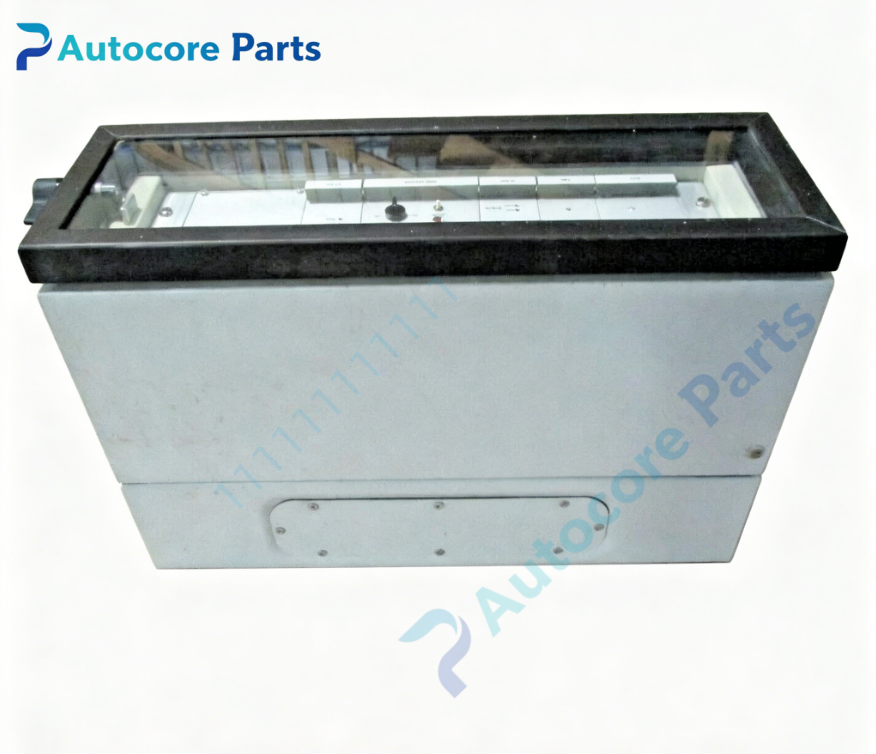

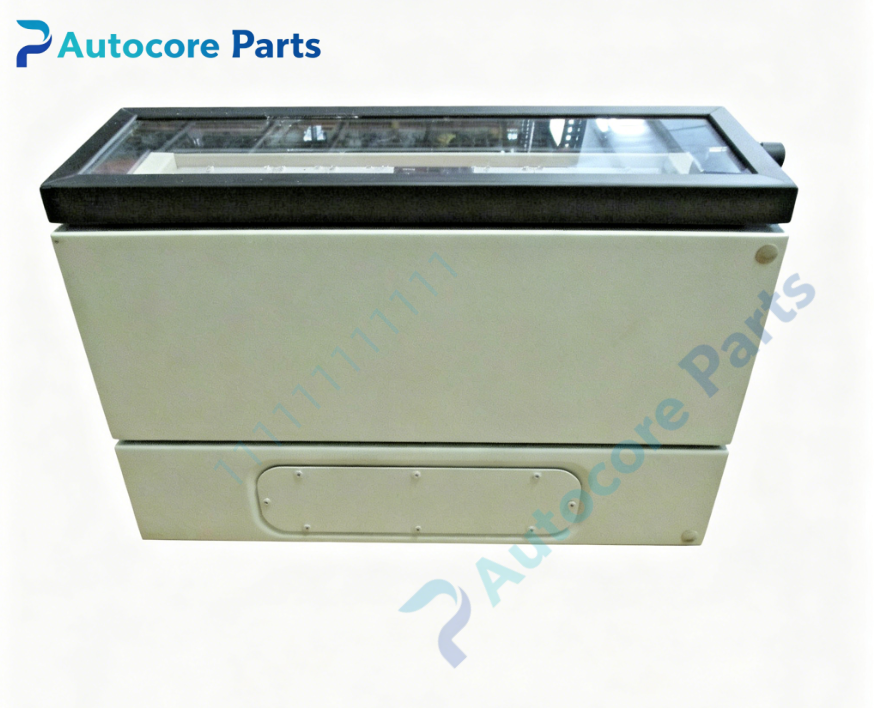

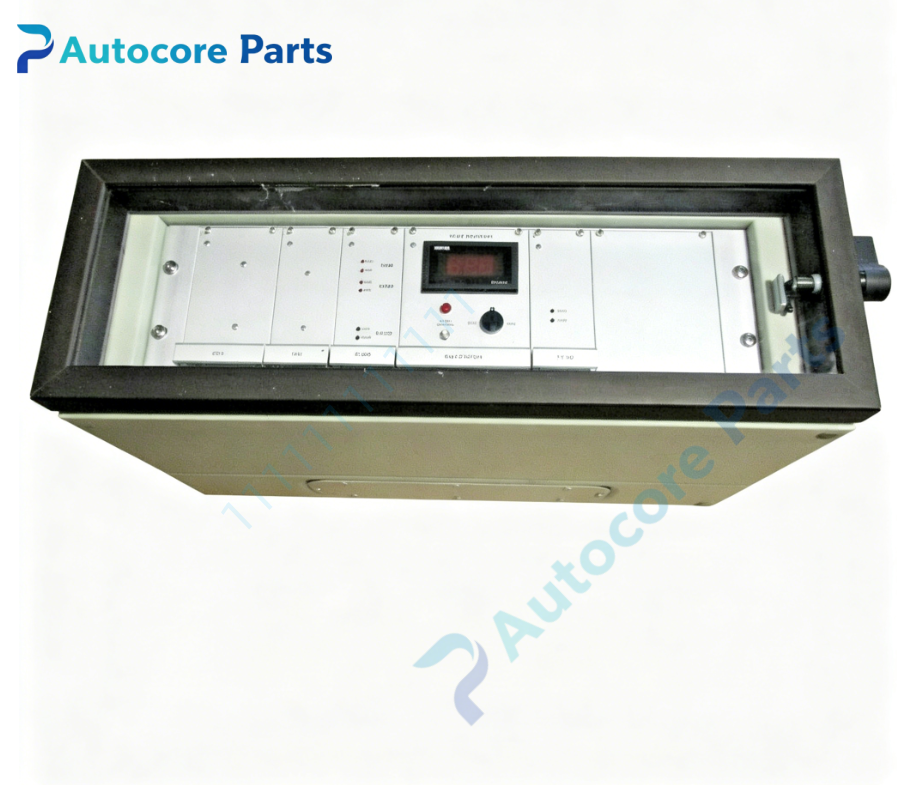

Fisher IC-2000 Stepmotor Interface Module

Technical Specifications

Model：IC-2000 Brand：Fisher Product Type: Stepmotor interface control module

Module Feature

Fisher IC-2000 is a dedicated step motor interface module for Fisher electric valve actuators. It receives analog control signal and converts signal to drive commands for stepper motor. It provides closed-loop stroke position feedback, over-travel protection and motor fault monitoring. Modular cabinet mounting design, easy integration with DCS control system. Widely used in power, chemical and pulp & paper plant modulating control valve with electric step motor actuators.

Working principle: Receive 4-20mA setpoint signal, generate pulse signal to drive stepper motor, read valve position for closed loop regulation Onboard components: Main control board, signal terminal block, power circuit, position feedback interface, metal enclosure, status indicator lights

LED indicatorsPower and fault LED indicators on front panel

Hardware self-diagnosis

Power supply inspection, input signal test, motor drive test, valve stroke feedback check, fault alarm test

Programming software

Special Fisher configuration software for parameter setting and diagnostic reading

Electrical Parameters

Input signal:4~20mA DC setpoint Power supply:24V DC or 110/220V AC according to variant Output:Stepper motor driving pulse signal

Mechanical & Structure

Mounting: Cabinet DIN rail or panel mounting Protection class:IP20 (enclosed cabinet installation)

Environmental

Operating temperature:-20℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:CE Status:Fisher electric actuator stepmotor interface module

System compatibility

Matched with Fisher electric stepper motor actuators and modulating control valves, connect to plant DCS system.

Function

IC-2000 is stepper motor interface module manufactured by Fisher. It converts 4-20mA control signal into pulse sequence to drive valve step motor, realizes precise linear or rotary valve stroke adjustment. It continuously reads valve actual position and compares with setpoint to correct motor movement. It provides protection functions including over travel, motor overload and position loss alarm. It is core control unit for Fisher electric modulating valve actuators.

Installation

Follow lockout/tagout safety procedure before installation. Cut off power supply. Mount IC-2000 module inside control cabinet. Wire power cable, 4-20mA control signal cable and motor feedback cable. Configure valve stroke parameters, perform auto calibration and full stroke test. Restore power and verify valve position control and fault alarm function.

Interface

Terminal block for power, 4-20mA input, motor drive and position feedback, power/fault LED on IC-2000.

Diagnostic

Valve no response: Module power loss or signal wiring fault. Position deviation: Stroke parameter misconfiguration or feedback signal failure. Motor overload alarm: Valve mechanical jam or drive circuit defect. No position feedback: Broken position sensor wiring.

Product Brief

IC-2000 Fisher stepper motor interface control module,converts 4-20mA signal to drive electric valve actuator,for industrial modulating electric control valve stroke regulation and fault monitoring,cabinet mounted actuator control unit.
