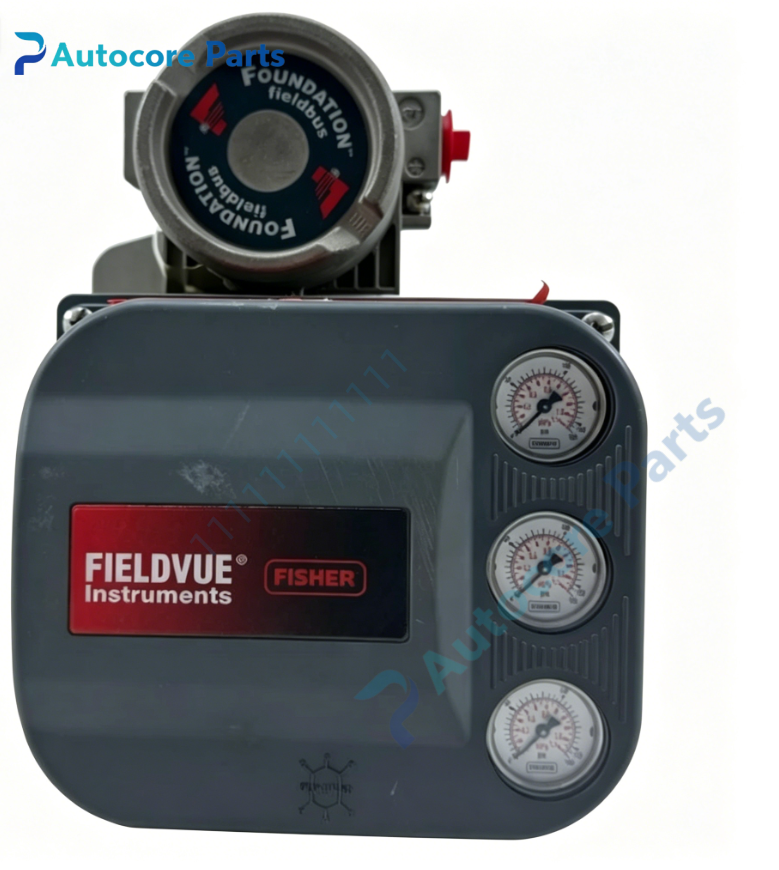

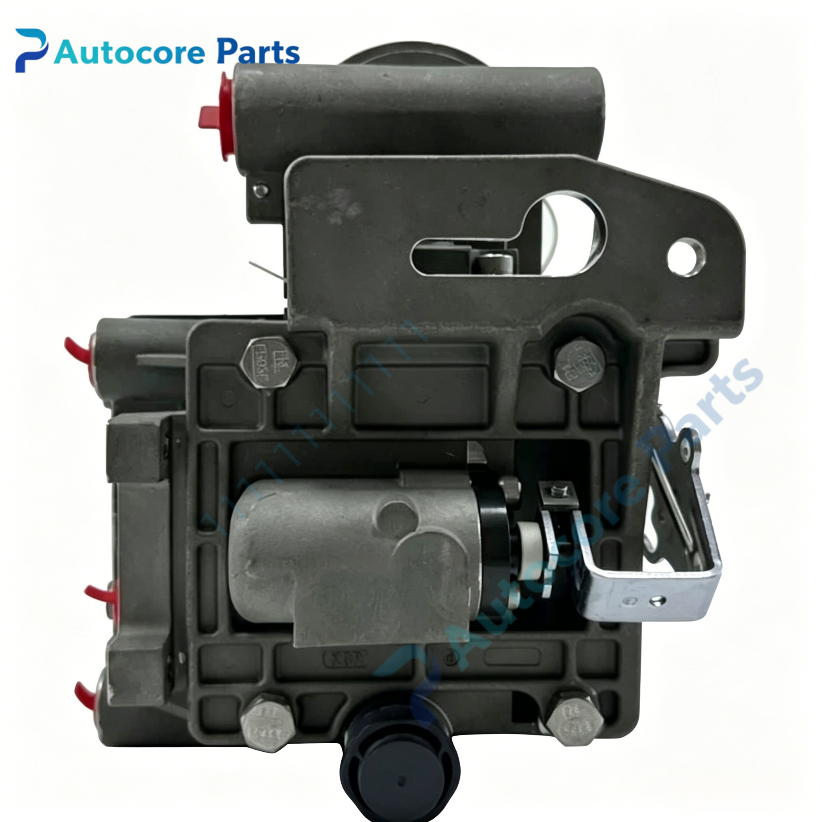

Fisher DVC6010FS Digital Valve Controller

Technical Specifications

Model：DVC6010FS Brand：Fisher Product Type: HART digital valve positioner

Module Feature

Fisher DVC6010FS belongs to FIELDVUE DVC6000 series digital valve controller. It converts 4-20mA HART control signal to pneumatic output for valve actuator positioning. It adopts linkage-less non-contact position feedback design. FS version with special corrosion-resistant housing suitable for harsh field environment. Widely applied in oil,gas,chemical and power plant process control valves. Working principle: Electro-pneumatic conversion Communication:HART Onboard components: Main electronic board, I/P converter, pneumatic relay, non-contact position sensor, terminal block

LED indicators

Front panel LED indicators for power, status and fault alarm

Hardware self-diagnosis

4-20mA loop test, supply air pressure inspection, auto stroke calibration, valve signature diagnostic test

Programming software

AMS ValveLink software for configuration, calibration and advanced valve diagnostic

Electrical & Pneumatic Parameters

Input signal:4~20mA HART Supply air:20~150psi Application:Industrial pneumatic control valve actuator

Mechanical & Structure

Mounting:Direct mount on Fisher linear and rotary actuators Protection class:IP66

Environmental

Operating temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,ATEX,IECEx,SIL capable Status:Fisher FIELDVUE DVC6000 series

System compatibility

DVC6010FS is compatible with Fisher 657,667 series pneumatic actuators and globe/rotary control valves for industrial process control system.

Function

DVC6010FS is smart digital valve controller manufactured by Fisher. It precisely controls valve stroke according to 4-20mA HART command. It monitors forward/reflected air pressure, valve travel and actuator health continuously. It supports online valve diagnostic, partial stroke test and remote parameter setup. FS version improves corrosion resistance for coastal and corrosive gas site. It reduces valve maintenance downtime.

Installation

Follow lockout/tagout safety procedure before installation. Cut off instrument air and electric power. Mount positioner on valve actuator, connect instrument air tubing and HART signal cable. Run auto calibration and full stroke test. Restore power and air supply, run valve function and alarm inspection.

Interface

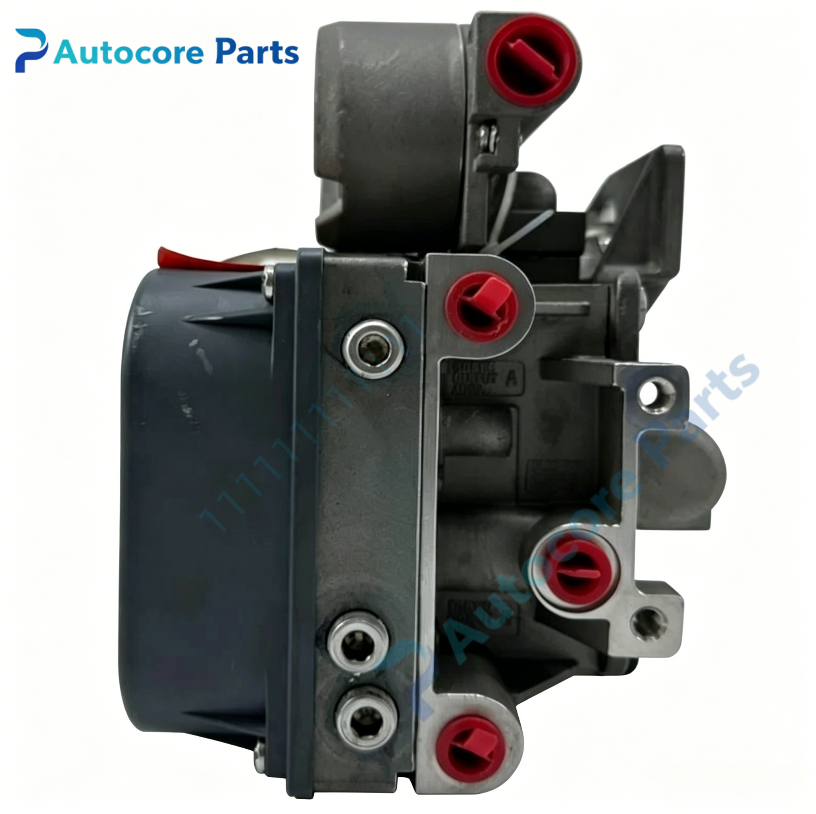

1/4"NPT pneumatic ports, 1/2"NPT electrical conduit port, two-wire HART signal terminals on DVC6010FS.

Diagnostic

No valve movement: Safety interlock active or loss of 4-20mA signal. Position deviation: Position sensor drift or calibration lost. High air consumption: Internal pneumatic relay wear.

Product Brief

DVC6010FS Fisher FIELDVUE digital valve controller,used for industrial control valve actuator positioning and online valve health monitoring,corrosion resistant smart HART positioner.
