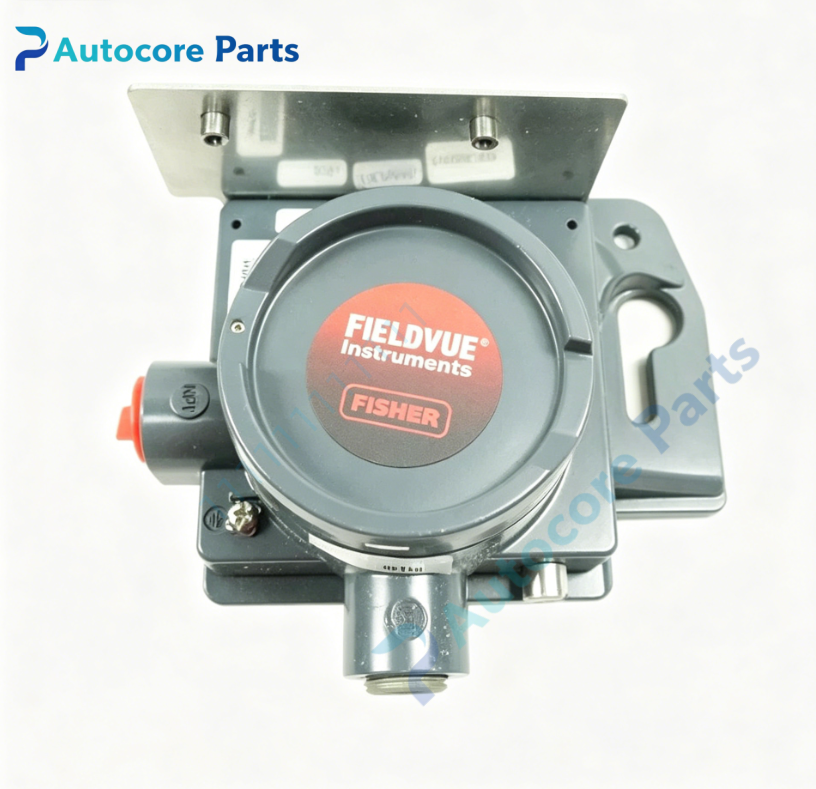

Fisher 49B7986X012 DVC6015 Digital Valve Positioner

Technical Specifications

Model：49B7986X012 Brand：Fisher Product Type: Fieldvue DVC6015 digital electro-pneumatic valve positioner

Module Feature

Fisher 49B7986X012 is DVC6015 series Fieldvue smart digital valve positioner. It accepts 4-20mA DC signal with HART communication protocol. It can be used for single-acting or double-acting pneumatic actuators, linear and rotary type. It has on-board diagnostic function, can monitor valve travel, actuator pressure and positioner health status. Widely used in oil,gas,chemical and power plant smart control valve loop.

Working principle: Digital HART signal processing + electro-pneumatic feedback control Onboard components: Main electronic board, I/P converter, pressure sensors, travel feedback sensor, pneumatic relay, terminal block, gaskets

LED indicatorsStatus LED indicator on housing

Hardware self-diagnosis

Supply air inspection, 4-20mA signal check, automatic valve stroke calibration, HART communication test, actuator pressure test

Programming software

ValveLink software for configuration, calibration and advanced diagnostic

Pneumatic & Electrical Parameters

Input signal:4~20mA DC with HART Supply air:20~150psi Actuator type:Single acting / Double acting, linear or rotary

Mechanical & Structure

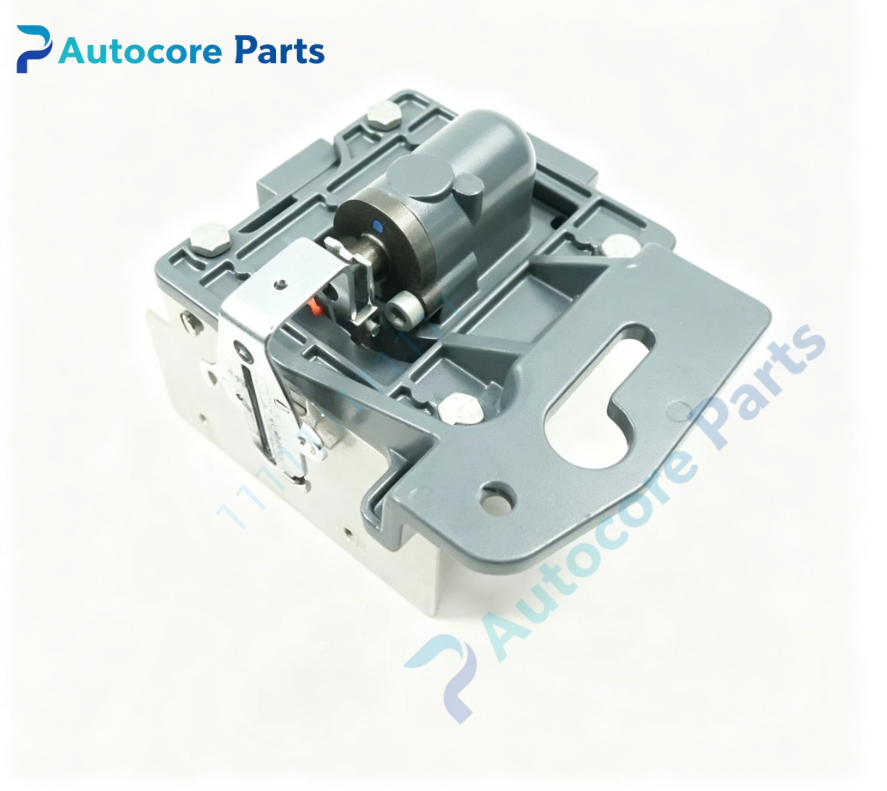

Mounting:Direct mount on Fisher control valve actuator Protection class:IP66

Environmental

Operating temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,ATEX,IECEx Status:Fisher Fieldvue DVC6000 series positioner

System compatibility

Compatible with Fisher 657/658 linear diaphragm actuators and rotary piston actuators,works with globe/rotary control valves for HART digital control system.

Function

49B7986X012 is smart digital positioner manufactured by Fisher. It receives 4-20mA+HART setpoint signal, compares with real valve travel and adjusts pneumatic output pressure to drive actuator. Built-in diagnostics can detect valve friction, leakage, dead band and travel deviation. It supports remote configuration and monitoring via HART communicator or ValveLink. It is widely used for intelligent modulating control valve in process industry.

Installation

Follow lockout/tagout safety procedure before installation. Cut off instrument air and electric signal. Mount positioner bracket on valve actuator, connect instrument air tubing and 4-20mA HART signal cable. Perform auto-calibration and full stroke test. Restore air and power supply, run HART communication and valve function inspection.

Interface

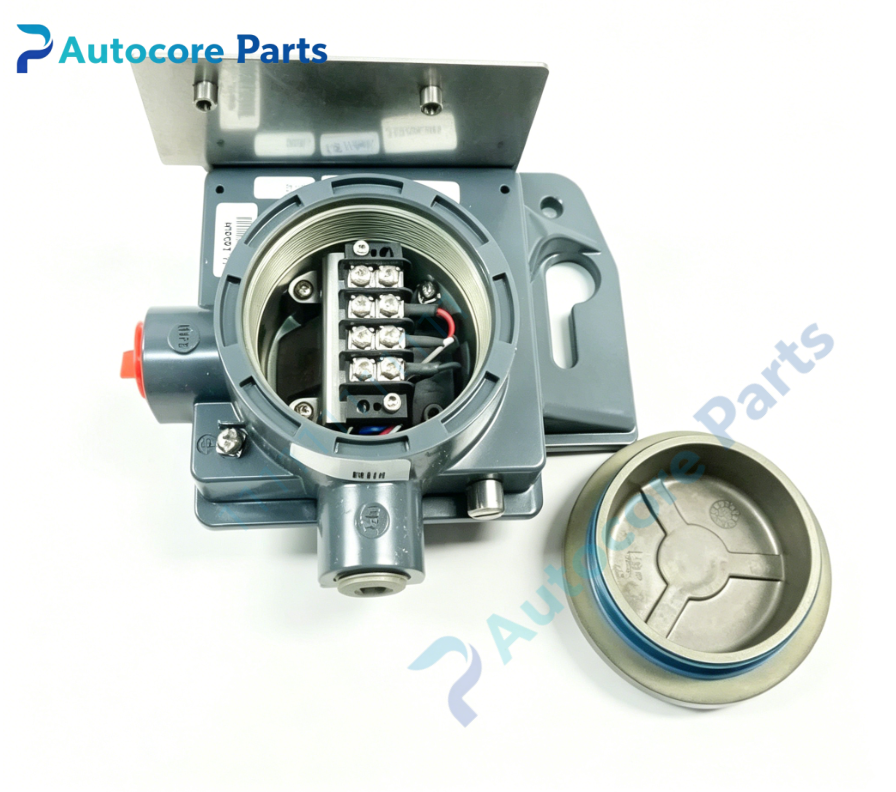

1/4"NPT pneumatic supply and output ports, electrical signal terminal port, pressure gauge ports, mounting bracket, status LED on 49B7986X012.

Diagnostic

Valve no movement: Loss of supply air or 4-20mA signal fault. Positioning drift: Travel sensor fault or pneumatic relay wear. HART communication failure: Wiring fault or electronic board damage. Diagnostic alarm: Valve friction abnormal or actuator leakage.

Product Brief

49B7986X012 Fisher DVC6015 Fieldvue smart digital valve positioner,with 4-20mA+HART communication,for industrial control valve intelligent positioning and online diagnostic,digital electro-pneumatic positioner.
