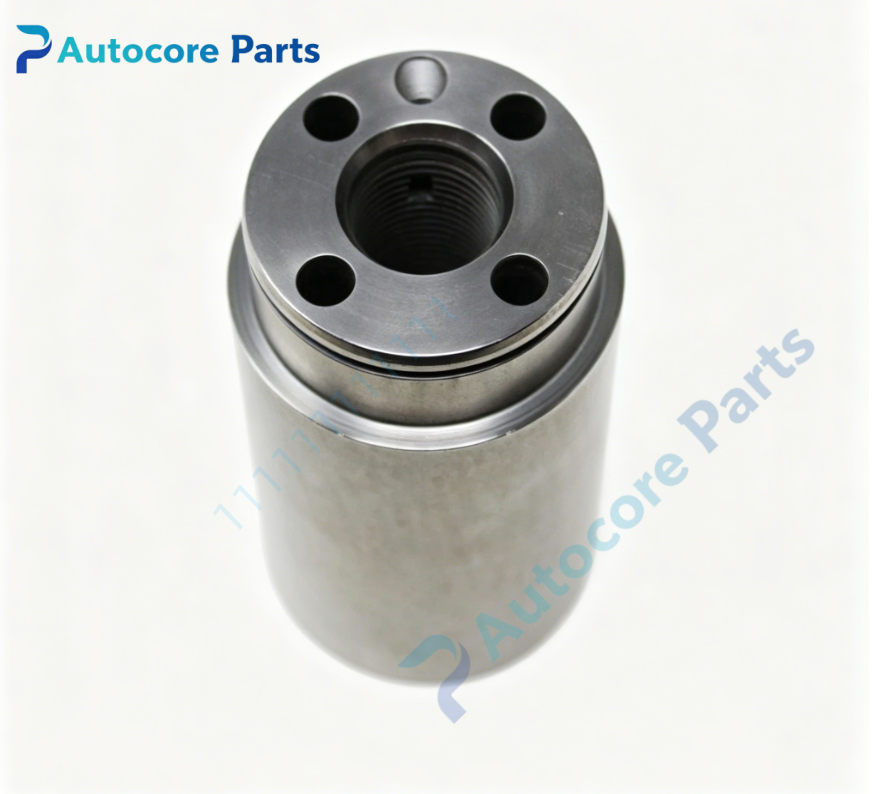

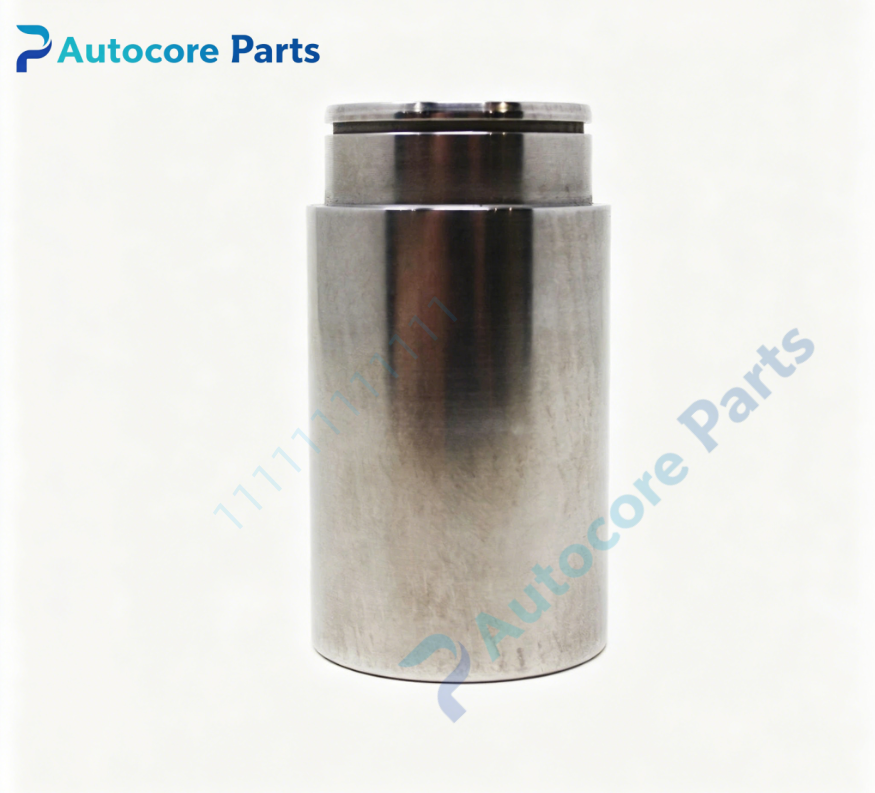

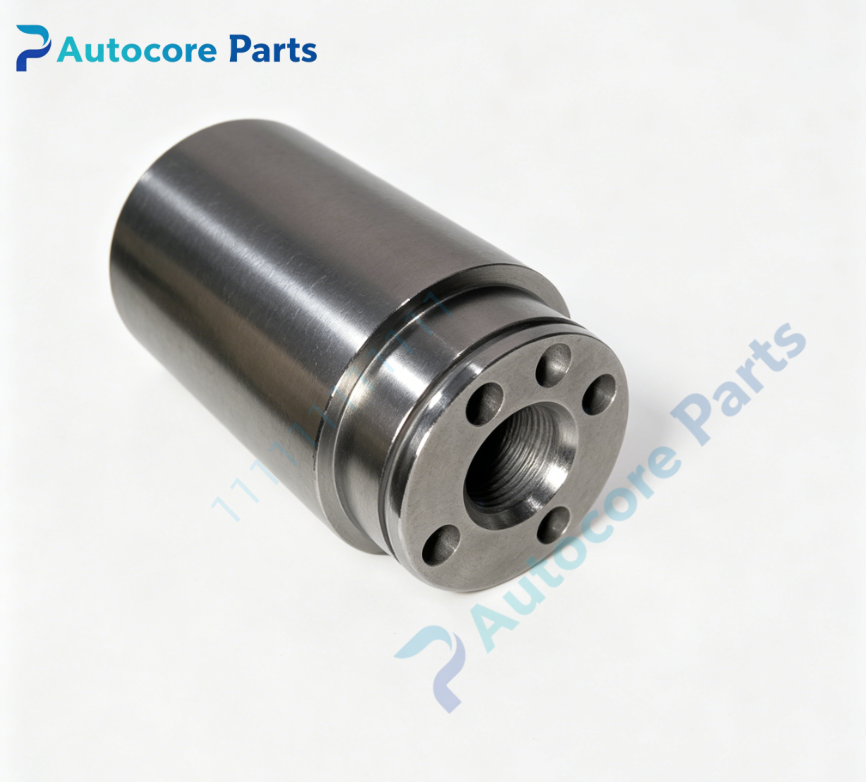

Fisher 37A4321X022 Spare Component37A4321X022 Spare Component

Technical Specifications

Model：37A4321X022 Brand：Fisher Product Type: Valve positioner spare component

Module Feature

Fisher 37A4321X022 is precision spare component designed for Fisher pneumatic valve positioner assembly. It cooperates with Fisher actuator and positioner to maintain stable valve stroke feedback. It adopts anti-corrosion alloy material with wear-resistant property. Widely applied in oil, gas, chemical and power plant process control valves. Working principle: Position feedback auxiliary transmission Onboard components: Alloy mechanical part, sealing washer, fixing fasteners

LED indicators

Not equipped

Hardware self-diagnosis

Visual inspection, dimensional check, stroke movement inspection, sealing performance test

Programming software

No dedicated software required

Mechanical & Structure

Mounting: Installed on valve positioner assembly Protection class:IP66

Environmental

Operating temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE Status:Fisher positioner spare part

System compatibility

Compatible with Fisher pneumatic actuator and 3700/3710/3720 series valve positioner for industrial process control system.

Function

37A4321X022 is positioner spare component manufactured by Fisher. It transfers valve stem rotary/linear movement to position feedback cam, ensures accurate position feedback signal. It reduces mechanical clearance and vibration during valve modulation. It is essential spare part for valve positioner maintenance and overhaul.

Installation

Follow lockout/tagout safety procedure before installation. Cut off instrument air supply. Disassemble positioner housing, replace the old 37A4321X022 component. Check feedback linkage clearance. Reassemble positioner, restore instrument air and run valve stroke calibration test.

Interface

Positioner internal mounting structure, fixed mounting holes, no LED indicators on 37A4321X022.

Diagnostic

Valve stroke unstable: Worn spare component or loose fastener. Position feedback abnormal: Component deformation or installation clearance abnormal. Valve positioning drift: Feedback linkage mechanical wear.

Product Brief

37A4321X022 Fisher valve positioner spare component,matched with Fisher pneumatic actuator and 3700 series positioner,used for industrial process control valve maintenance,positioner spare part.
