Fireye ZB110UVSC BurnerLogix Burner Management Chassis

Technical Specifications

Model：ZB110UVSC Brand：Fireye Product Type: BurnerLogix Z series microprocessor burner control chassis with built-in UV self-check flame amplifier

Control Feature:

• Amplifier type: UV self-check flame amplifier

• Sequence control: Pre-purge, ignition trial, flame supervision, post-purge and safety lockout

• Support burner modes: on/off, high-low-off and modulating burner

• Compatible flame detector: Fireye UV self-check series flame scanners

• Built-in PID boiler modulation control, pressure/temperature limit monitoring

• Cold start thermal shock protection

• Fault log storage for lockout history review

Electrical Parameters:

• Supply voltage: 120 VAC, 50/60Hz

• Power consumption: 25VA

• Flame input terminal: Dedicated UV self-check scanner wiring terminals

• Relay outputs: Fuel valve, ignition, alarm and auxiliary relay outputs

• Digital inputs: Safety interlock, pressure switch, temperature switch inputs

• Communication: Optional Modbus communication module

Mechanical & Structure:

• Mounting: DIN rail installation inside control cabinet

• Housing: NEMA1 metal chassis

• Front panel: LED status indicators, manual reset button

• Expansion slot: for plug-in YP programmer module

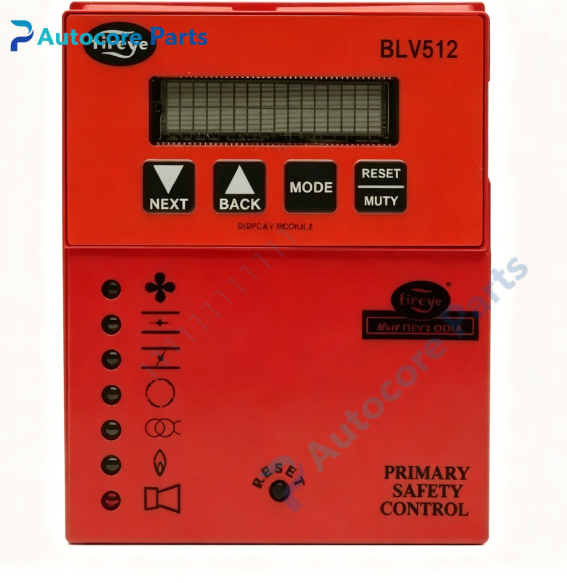

• Optional display: BLV512 OLED or BLL510 LCD display (sold separately)

Environmental:

• Operating temperature: -20℃ ~ +60℃

• Ambient humidity: 0~90% non-condensing

• Certification: UL, FM approved

• Weight: Approx 1.45kg

System compatibility

ZB110UVSC belongs to Fireye BurnerLogix Z series burner management family. Compatible with Fireye UV self-check flame scanners such as UV90L-1. Matches YP series programmer modules, BLV512 / BLL510 display units and standard wiring bases. Widely used for gas, oil boiler and furnace burner combustion safety control and spare replacement.

Function

ZB110UVSC is BurnerLogix integrated burner control chassis manufactured by Fireye. It combines burner sequencing logic and UV self-check flame amplifier in one compact chassis. The UV self-check circuit continuously monitors flame scanner health status during burner operation to prevent false flame signal caused by sensor failure. It executes full burner cycle including pre-purge, ignition trial, flame supervision and post purge. When flame loss or scanner fault is detected, the controller triggers safety lockout and cuts fuel supply to avoid unburned fuel accumulation and explosion hazard. It supports boiler modulating control and thermal shock protection. Fault history records can be retrieved for maintenance troubleshooting. Widely deployed on industrial boilers and furnaces for burner safety control spare replacement.

Installation

Follow lockout/tagout safety procedure before installation. Mount ZB110UVSC chassis inside control cabinet on DIN rail. Install YP programmer module and optional display module. Wire 120VAC power, safety interlock switches, ignition transformer and fuel valve relays. Connect UV self-check flame scanner wiring strictly following Fireye official wiring diagram. Complete burner cold test and firing commissioning, verify flame signal and safety lockout function.

InterfaceAC power terminal block,flame scanner input terminals,digital interlock inputs,relay output terminals,YP programmer module slot,LED indicators & reset button for Fireye ZB110UVSC.

FeatureOriginal Fireye ZB110UVSC BurnerLogix chassis,120VAC power,built-in UV self-check flame amplifier,supports UV self-check scanners,integrated boiler modulation control,UL & FM safety certified. This spare unit is used for industrial boiler burner sequence and flame safety system maintenance and hardware replacement.

DiagnosticFlame lockout: Inspect UV scanner lens contamination, optical alignment, scanner wiring and flame signal level. Scanner self-check fault: Verify UV scanner model matching, supply voltage and sensor aging. Interlock lockout: Check external pressure/temperature limit switches and interlock loop continuity. No power: Check 120VAC supply voltage and internal fuse integrity. Cannot reset lockout: Review fault history log and eliminate root cause before manual reset.

Product BriefZB110UVSC is Fireye BurnerLogix Z series 120VAC burner management chassis with integrated UV self-check amplifier, used for gas/oil boiler burner sequencing and flame safety interlock,classic spare for industrial furnace combustion control.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
