Fireye YP148 BurnerLogix Programmer Module

Technical Specifications

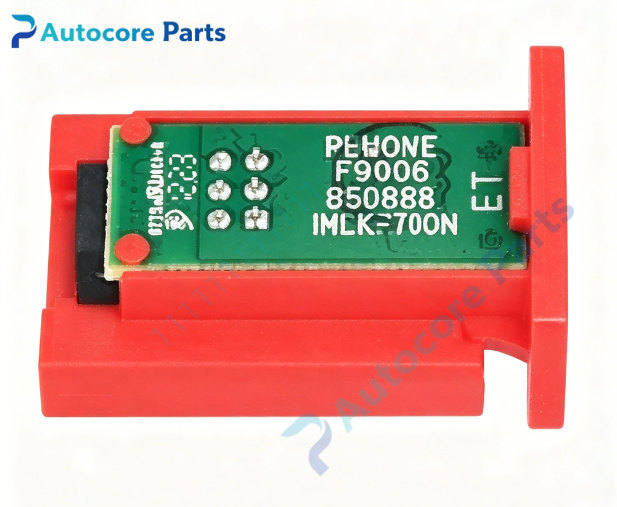

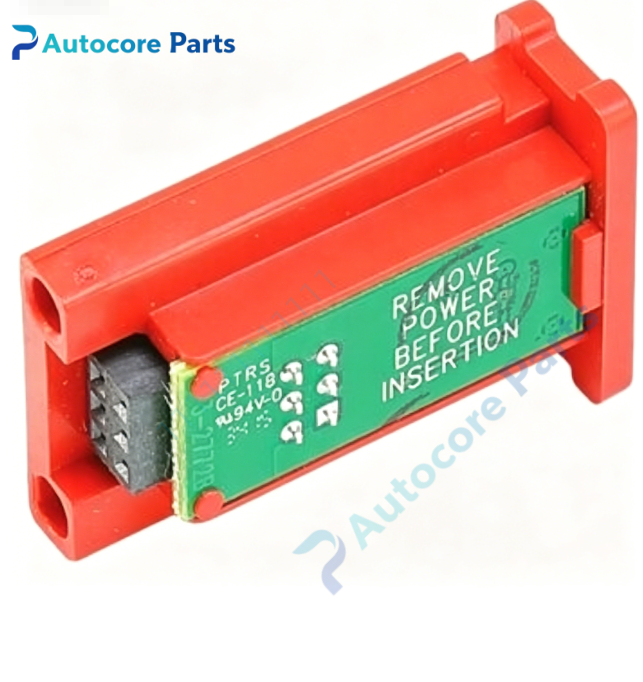

Model：YP148 Brand：Fireye Product Type: Plug-in programmer timing module for BurnerLogix ZB/YB series burner management chassis

Sequence Feature:

• FFRT (Flame Failure Response Time): 4 seconds

• Application: Dual fuel (Gas / Light Oil) burners

• Pilot mode: Selectable interrupted or intermittent pilot

• Timing configuration: Pre-purge, PTFI, MTFI, post-purge timing defined by YP148

• Valve logic: VP at pre-purge or VP at post-purge configurable

• Fuel selection terminal: Terminal 16 for gas/oil fuel switching

Mechanical & Structure:

• Form: Plug-in card, directly inserted into YB / ZB BurnerLogix chassis programmer slot

• Installation: Hot swap not permitted, power off chassis before replacement

• Compatible chassis: ZB110, ZB230, YB110, YB230 BurnerLogix chassis

Environmental:

• Operating temperature: -20℃ ~ +60℃

• Ambient humidity: 0~90% non-condensing

• Certification: cULUS listed

• Weight: Approx 0.18kg

System compatibility

YP148 belongs to Fireye BurnerLogix YP programmer family. Compatible with ZB110, ZB230, YB110, YB230 burner control chassis. Works with UV self-check, standard UV, IR auto-check flame amplifier chassis. Matches BLV512 / BLL510 display units. Designed for dual fuel gas / light oil industrial boiler and furnace burners. Widely used for combustion safety system spare replacement.

Function

YP148 is plug-in programmer timing module manufactured by Fireye. It defines the full burner operating sequence and safety timing parameters for BurnerLogix chassis. It supports dual fuel gas and light oil burner operation. User can configure interrupted or intermittent pilot ignition mode, and select main valve energize timing. The module controls pre-purge period, pilot flame trial time (PTFI), main flame trial time (MTFI) and post-purge sequence. If flame loss occurs during firing, 4s FFRT triggers safety lockout to cut fuel supply. Fuel selection signal on terminal 16 switches between gas and oil fuel profiles. Widely deployed for dual fuel boiler burner sequence control and spare replacement.

Installation

Follow lockout/tagout safety procedure before installation. Cut off power supply of BurnerLogix chassis. Insert YP148 programmer module firmly into chassis programmer slot. Restore power, configure pilot mode and valve timing via BLV512 or BLL510 display. Execute cold sequence test and burner firing commissioning, verify purge, ignition trial and flame loss lockout timing.

InterfaceGold edge connector for chassis slot,fuel selection logic pins,sequence control logic circuit for Fireye YP148.

FeatureOriginal Fireye YP148 BurnerLogix plug-in programmer module,4 second FFRT,dual fuel gas/light oil support,selectable pilot mode,configurable main valve timing,cULUS safety certified. This spare unit is used for industrial dual-fuel boiler burner sequence timing configuration maintenance and hardware replacement.

DiagnosticSequence wrong timing: Check YP module model match, recheck display configuration parameters. No ignition output: Verify pilot/intermittent pilot setting and interlock status. Fuel selection malfunction: Inspect terminal 16 fuel selection wiring and signal level. Chassis cannot recognize programmer: Power down chassis, re-seat YP148 module, inspect edge connector contamination.

Product BriefYP148 is Fireye BurnerLogix series plug-in programmer module with 4s FFRT, dedicated for dual fuel gas and light oil burners, defines burner purge, ignition and safety sequence timing,classic spare for industrial furnace combustion control system.
