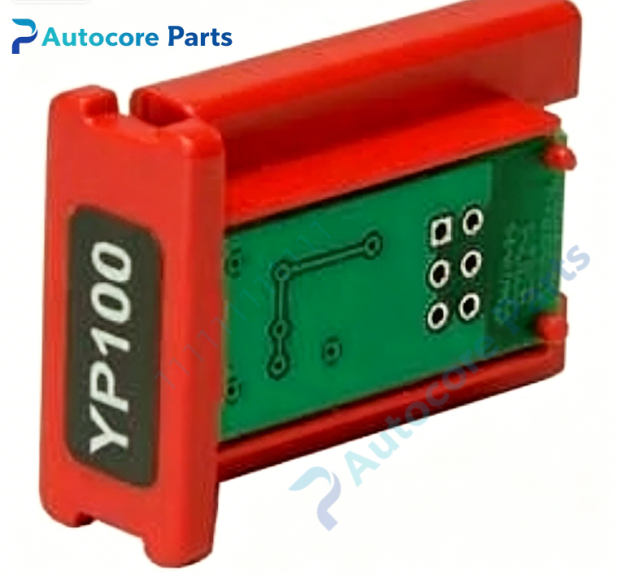

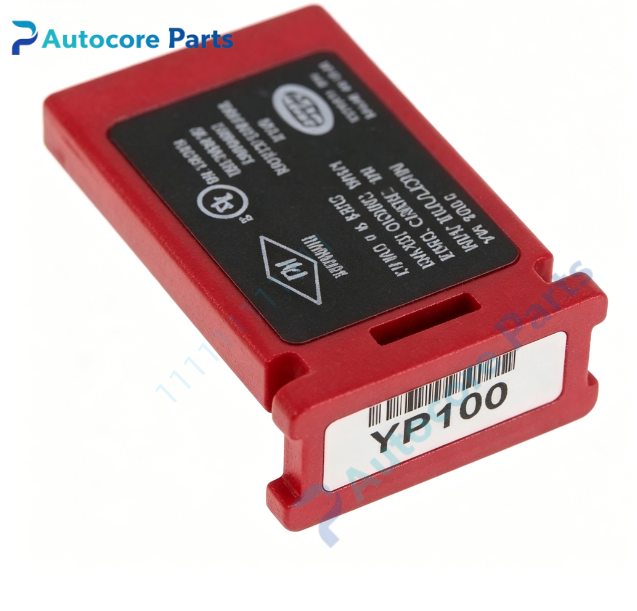

Fireye YP100 BurnerLogix Programmer Module

Technical Specifications

Model：YP100 Brand：Fireye Product Type: Plug-in programmer timing module for BurnerLogix ZB/YB series burner management chassis

Sequence Feature:

• FFRT (Flame Failure Response Time): 4 seconds

• Operation mode: Non-recycle, modulating burner control

• Core function: Open damper proving before light-off

• Timing: Keypad configurable pre-purge, PTFI, MTFI and post-purge timing

• Pilot type: Interrupted pilot, factory default

• Support proven high fire and proven low fire interlock verification

Mechanical & Structure:

• Form: Plug-in card, directly inserted into YB / ZB BurnerLogix chassis programmer slot

• Installation: Power off chassis before replacement, hot swap prohibited

• Compatible chassis: ZB110, ZB230, YB110, YB230 BurnerLogix chassis

Environmental:

• Operating temperature: -40℃ ~ +60℃

• Ambient humidity: 0~90% non-condensing

• Certification: cULUS listed

• Weight: Approx 0.18kg

System compatibility

YP100 belongs to Fireye BurnerLogix YP programmer family. Compatible with ZB110, ZB230, YB110, YB230 burner control chassis. Works with UV self-check, standard UV, IR auto-check flame amplifier chassis. Matches BLV512 / BLL510 display units. Designed for gas or oil industrial boiler and furnace modulating burners. Widely used for combustion safety system spare replacement.

Function

YP100 is plug-in programmer timing module manufactured by Fireye. It defines full burner operating sequence and safety timing parameters for BurnerLogix chassis. It supports non-recycle modulating burner operation with open damper proving function to confirm air damper opens prior to ignition. The module controls pre-purge, pilot trial for ignition (PTFI), main flame trial for ignition (MTFI) and post-purge cycle. If flame loss occurs during firing, 4s FFRT triggers safety lockout and cuts fuel supply immediately to avoid unburned fuel accumulation and explosion risk. All timing parameters can be edited via BurnerLogix display. Widely deployed for gas and oil modulating boiler burner sequence control and spare replacement.

Installation

Follow lockout/tagout safety procedure before installation. Cut off power supply of BurnerLogix chassis. Insert YP100 programmer module firmly into chassis programmer slot. Restore power, configure purge timing and damper proving function via BLV512 or BLL510 display. Execute cold sequence test and burner firing commissioning, verify damper proof and flame loss lockout timing.

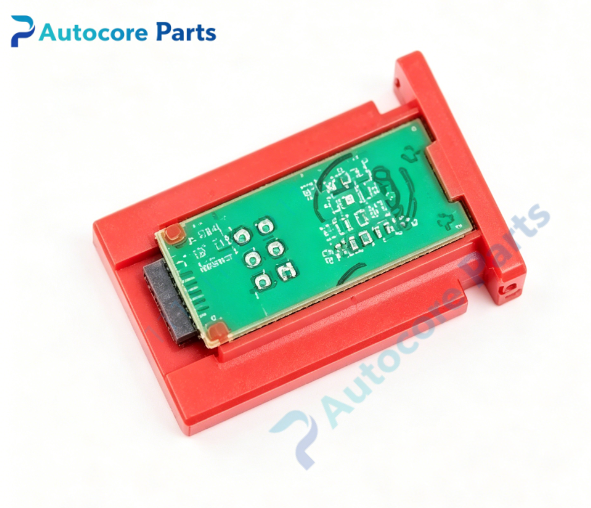

InterfaceGold edge connector for chassis slot,sequence control logic circuit,interlock logic pins for Fireye YP100.

FeatureOriginal Fireye YP100 BurnerLogix plug-in programmer module,4 second FFRT,non-recycle modulating burner logic,open damper proving support,interrupted pilot default,cULUS safety certified. This spare unit is used for industrial boiler burner sequence timing configuration maintenance and hardware replacement.

DiagnosticSequence wrong timing: Check YP module model match, recheck display configuration parameters. Damper proving fault: Inspect damper limit switch, wiring and air damper mechanical travel. No ignition output: Verify pilot mode setting and safety interlock status. Chassis cannot recognize programmer: Power down chassis, re-seat YP100 module, inspect edge connector contamination.

Product BriefYP100 is Fireye BurnerLogix series plug-in programmer module with 4s FFRT, non-recycle logic and open damper proving, dedicated for gas/oil modulating burners, defines burner purge, ignition and safety sequence timing,classic spare for industrial furnace combustion control system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
