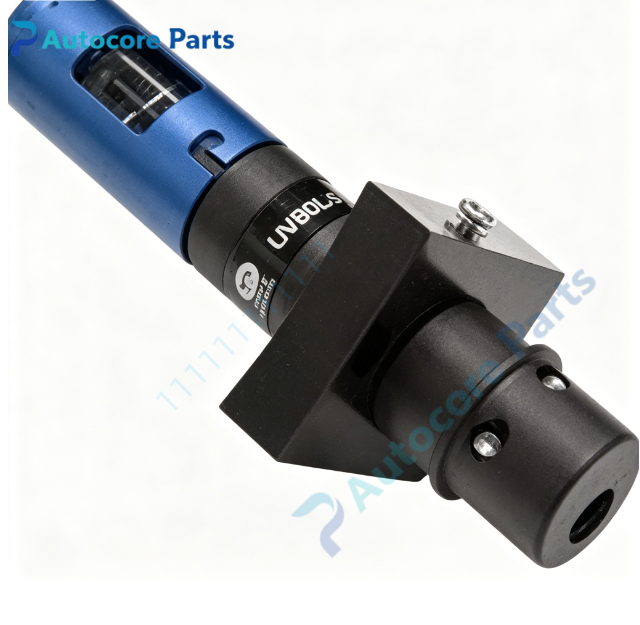

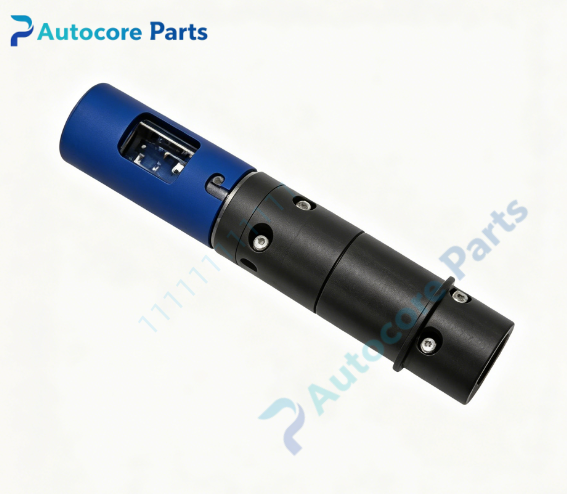

Fireye UV90L-1 Ultraviolet Flame Detector

Technical Specifications

Model：UV90L-1 Brand：Fireye Product Type: Ultraviolet self-checking flame detector for industrial burner combustion monitoring

Detection Feature:

• Detection spectrum: Ultraviolet UV band, insensitive to visible light and infrared heat

• Self-check function: Built-in automatic self-test circuit to verify sensor health

• Response time: Fast flame response for flame loss protection

• Detectable fuel: Natural gas, propane, light fuel oil, heavy oil

Electrical Parameters:

• Operating voltage: 24V DC

• Output: Flame signal for Fireye burner control chassis

• Wiring: 2-wire / multi-wire connection matched with Fireye amplifier modules

• Protection: Reverse polarity protection

Mechanical & Optical:

• Viewing angle: Standard field of view for burner sighting window

• Lens: Quartz UV transparent lens

• Housing: Aluminum alloy, flameproof construction

• Sight tube mounting interface for boiler burner assembly

Environmental:

• Operating temperature: -40℃ ~ +85℃ (sensor head)

• Ambient humidity: 0~95% non-condensing

• Protection class: IP66

• Weight: Approx 0.58kg

System compatibility

UV90L-1 belongs to Fireye UV flame scanner series. Compatible with Fireye burner control amplifiers and chassis systems. Matches standard sight tubes and mounting adapters for boiler, furnace, kiln burners. Widely used in industrial combustion safety monitoring and spare replacement.

Function

UV90L-1 is ultraviolet flame detector manufactured by Fireye. It captures ultraviolet radiation generated by combustion flame. The built-in self-check circuit continuously validates sensor function to prevent false flame indication caused by sensor failure. It sends flame present / flame loss signal to burner controller. When flame out occurs, the system triggers safety shutdown to avoid unburned fuel accumulation and explosion risk. Widely deployed for gas and oil boiler burner combustion safety monitoring and spare replacement.

Installation

Follow site safety lockout/tagout procedure before installation. Mount UV90L-1 on burner sight port with matching sight tube. Align sensor viewing window towards flame area. Complete wiring according to Fireye wiring diagram. Confirm wiring polarity. Power on and perform flame simulation test and burner ignition test. Verify flame signal strength during commissioning.

InterfaceQuartz optical lens, mounting thread interface, electrical terminal block for Fireye UV90L-1.

FeatureOriginal Fireye UV90L-1 self-checking UV flame detector,ultraviolet spectrum detection,built-in automatic self-test,anti visible light interference,IP66 housing. This spare unit is used for industrial boiler and furnace burner flame safety monitoring maintenance and hardware replacement.

DiagnosticNo flame signal: Check sight window contamination, lens dirt, alignment of viewing angle, wiring continuity. False flame alarm: Verify sunlight/arc light interference, check self-check circuit status. Self-check fault alarm: Confirm supply voltage, inspect sensor aging, replace detector if persistent fault. Intermittent flame signal: Check loose wiring, vibration at mounting position or lens condensation.

Product BriefUV90L-1 is Fireye self-check ultraviolet flame detector for gas and oil burners, used for boiler flame presence monitoring and combustion safety interlock,classic spare for industrial furnace combustion control.
