Fireye UV1ALCEX UV Flame Scanner

Technical Specifications

Model：UV1ALCEX Brand：Fireye Product Type: Non self-checking ultraviolet flame scanner for industrial burners in hazardous explosive environments

Detection Feature:

• Detection spectrum: 190~270nm ultraviolet UV band

• Self-check function: NO continuous built-in sensor self-test

• Flame target: Natural gas, propane, light oil industrial burner flame

• Operating principle: Geiger-Muller UV tube detects flame UV flicker radiation

• Safety verification: Scanner circuit health verified at burner startup and shutdown cycle

Electrical Parameters:

• Cable assembly: 72 inch (1830mm) integrated #18AWG shielded cable

• Max total wiring length: Up to 250ft

• Signal output: UV flame flicker signal to matched non-self-check UV flame amplifier

• Wiring terminals: S1 / S2, no polarity requirement

Mechanical & Structure:

• Housing: Explosion-proof metal housing

• Mounting thread: 1/2" FNPT insulated nylon coupling

• Window: UV transparent fused silica quartz lens

• Cable shield: Shield drain wire bonded to metal coupling for grounding

Environmental:

• Operating temperature: -40℃ ~ +93℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM, explosion-proof hazardous area approval

• Weight: Approx 0.4kg

System compatibilityUV1ALCEX belongs to Fireye UV1AL series flame scanner family. Compatible with Fireye MB series, MicroM, YB110UV, ZB110UV non-self-check UV burner chassis. Matches YP programmer modules, ED510 display. Designed for gas and light oil boiler and furnace burners installed in hazardous classified locations. Widely used for combustion safety system spare replacement.

FunctionUV1ALCEX is explosion-proof non self-check ultraviolet flame scanner manufactured by Fireye. It uses Geiger-Muller UV tube to capture ultraviolet flicker radiation from combustion flame and transmits flame signal to matched flame safeguard amplifier. This model has no continuous real-time self-check function, burner controller will check scanner integrity during each burner start and stop cycle. When flame extinguishes, flame signal disappears, burner system triggers safety lockout and cuts fuel supply to eliminate explosion risk. Explosion-proof housing is suitable for combustible gas hazardous zone. 72-inch pre-assembled shielded cable simplifies site wiring. Widely deployed for industrial boiler and furnace flame continuous monitoring in hazardous areas.

InstallationFollow lockout/tagout safety procedure before installation. Mount UV1ALCEX onto burner sight port via 1/2 inch FNPT insulated coupling, align quartz viewing window toward flame. Keep lens free of soot and dust. Route 72-inch shielded cable to non-self-check UV burner chassis, strictly follow Fireye wiring schematic. Complete burner cycling test and flame signal strength calibration during commissioning. Verify hazardous area installation requirements are fully complied.

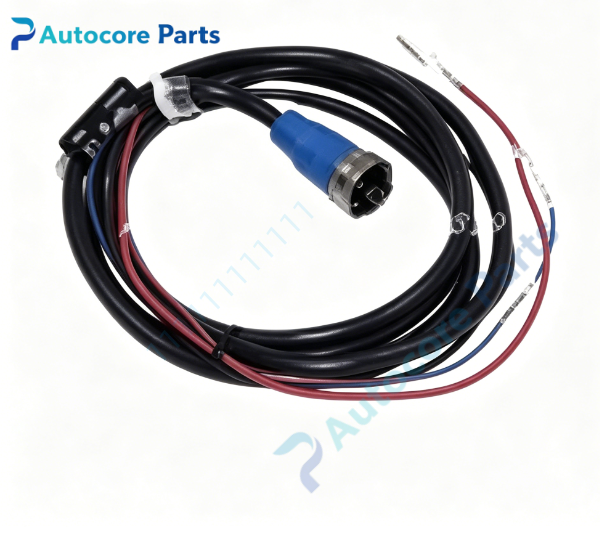

InterfaceFused silica quartz viewing window,1/2" FNPT insulated nylon coupling,72 inch integrated shielded signal cable,explosion-proof metal housing for Fireye UV1ALCEX.

FeatureOriginal Fireye UV1ALCEX non self-check explosion-proof UV flame scanner,72 inch shielded cable,1/2"NPT mounting,Geiger-Muller UV tube,UL & FM explosion-proof certified. This spare unit is used for industrial boiler burner flame detection maintenance in hazardous explosive locations and hardware replacement.

DiagnosticNo flame signal: Inspect quartz window soot contamination,optical alignment,cable continuity. No continuous self-test: This is non-self-check UV scanner,health verification only on burner startup and shutdown cycle. Intermittent flame signal: Check lens dirt,mechanical vibration and cable shielding integrity. False flame indication: Eliminate external UV interference source near burner sight port.

Product BriefUV1ALCEX is Fireye explosion-proof non-self-check UV flame scanner with 72 inch shielded cable,1/2" FNPT thread for hazardous area installation,works with MB/MicroM/YB110UV burner chassis,classic spare for industrial furnace combustion control system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
