Fireye PXMS-15K Pressure Transmitter

Technical Specifications

Model：PXMS-15K Brand：Fireye Product Type: Piezoresistive pressure transmitter for combustion control system

Measurement Feature:

• Pressure range: 0 ~ 15 PSI (0 ~ 1 bar)

• Output signal: 4-20mA linear analog output

• Process connection: 1/2" NPT male thread

• Circuit type: Non self-check design

• Wetted material: 316L stainless steel, meets NACE MR01-75

Electrical Parameters:

• Supply voltage: 24VDC

• Operation: Two-wire loop powered

• Signal definition: 4mA @0PSI, 20mA @15PSI full scale

• Anti-interference: Built-in temperature compensated circuit, high EMI/RFI resistance

Mechanical & Structure:

• Sensing element: Silicon piezoresistive chip, oil-filled isolation diaphragm

• Housing: 316L stainless steel compact enclosure

• Cable: Integral signal cable assembly

• Media compatibility: Steam, gas and compatible non-corrosive fluid

Environmental:

• Operating temperature: -40℃ ~ +85℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 0.34kg

System compatibilityPXMS-15K belongs to Fireye PXMS-K pressure transmitter family. Compatible with Fireye NX6100, NX6300 Nexus integrated burner controllers. Applied on low-pressure steam boilers, hot water boilers and process furnaces for low pressure monitoring. Non self-check design, suitable for burners cycling periodically to validate safety circuit. Widely used as spare replacement for combustion pressure measurement system.

FunctionPXMS-15K is pressure transmitter manufactured by Fireye for burner control systems. It captures medium pressure through 316L stainless steel isolation diaphragm, converts pressure reading into standard 4-20mA signal and transmits to Nexus series burner controller. Built-in temperature compensation minimizes measurement drift under variable temperature conditions. It provides real-time low pressure feedback for fuel-air ratio regulation and boiler pressure interlock protection. Widely deployed for low pressure industrial boiler pressure monitoring and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Mount PXMS-15K on pressure tapping port via 1/2"NPT thread. Keep proper installation orientation to prevent condensate accumulation on sensing diaphragm. Run shielded two-wire signal cable to NX controller terminals strictly follow Fireye wiring schematic. Complete zero point calibration and pressure signal test during commissioning.

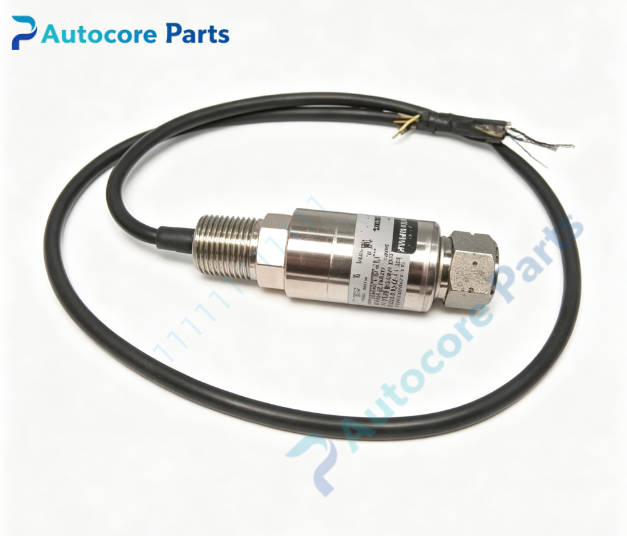

Interface316L stainless steel sensing diaphragm,1/2"NPT process thread,2-core 4-20mA signal cable,stainless steel transmitter housing for Fireye PXMS-15K.

FeatureOriginal Fireye PXMS-15K pressure transmitter,0-15PSI low measuring range,4-20mA two-wire output,NACE compliant wetted parts,UL & FM safety certified. This spare unit is used for low pressure industrial boiler burner steam pressure measurement,combustion control maintenance and hardware replacement.

DiagnosticNo output signal: Inspect 24VDC power supply,cable breakage and terminal connection. Inaccurate pressure reading: Perform zero calibration,check diaphragm soot clogging or media coating. Unstable signal: Check cable shielding, furnace vibration and temperature fluctuation. Signal stuck at low value: Inspect diaphragm damage caused by overpressure.

Product BriefPXMS-15K is Fireye PXMS-K series 0~15PSI pressure transmitter with 4-20mA output,paired with NX6100/NX6300 burner controllers,classic spare for low-pressure boiler steam pressure monitoring system.
