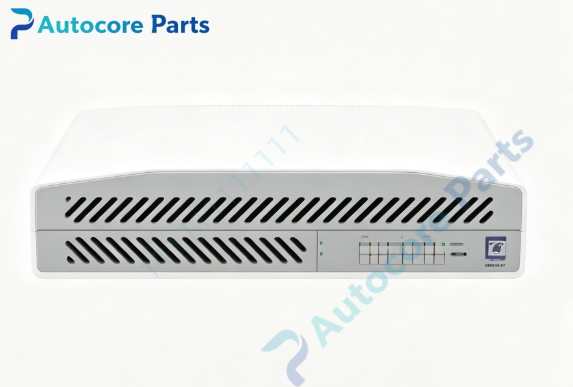

Extreme Networks XA1440 ExtremeAccess Platform 1440 Branch Gateway

Technical Specifications

Model：XA1440 Brand：Extreme Networks Product Type: Compact x86 hardware branch gateway / fabric access appliance (XA1400 family)

Front Ports:

• 6 × 10/100/1000BASE-T RJ45 copper ports

• 2 × 1/10G SFP+ fiber uplink slots for optical transceivers or DAC/AOC cables

• RJ45 serial console port

• USB port for external storage and firmware upload

• LED indicators for power, system health, port link and fault alarm

Hardware Base:

• CPU: 4-core Intel processor

• Memory: 8GB RAM

• Storage: 32GB SSD

• Max WAN throughput: 100 Mbps

• MAC Address Table: 2K entries

Switching & Security Features:

• OS: VOSS operating system

• Supports SPBM Fabric Connect

• IPsec VPN tunnel, site-to-site encryption

• VLAN: Up to 4094 802.1Q tagged VLAN

• Routing: IPv4 / IPv6 static & dynamic routing

• Security: 802.1X, ACL, firewall functions

• QoS: Hardware L2-L4 classification, 8 priority queues

Power & Mechanical:

• Power supply: External DC power adapter

• Operating temperature：0℃ ~ +40℃

• Dimension: 44mm(H) ×250mm(W) ×252mm(D)

• Weight: Approx 2.3kg

• Mounting: Desktop or optional 2-post rack mount kit

System compatibility

XA1440 belongs to Extreme XA1400 ExtremeAccess appliance family. Compatible with Extreme VSP fabric core/aggregation switches, works with supported SFP+ transceivers including 10G-SR and 10G-LR modules. Designed for small branch offices, remote site fabric extension. Widely used for remote office network deployment and spare replacement.

Function

XA1440 is compact VOSS-based branch gateway appliance. It extends Extreme Fabric Connect services to remote branch locations. The six gigabit copper ports connect local office terminals, while dual 10G SFP+ ports provide high-speed fiber uplink to headquarters. It supports IPsec VPN for secure WAN interconnection, local routing and firewall functions. Built-in SSD stores operating system and configuration. Widely deployed for small branch office, retail site and remote workshop fabric network spare replacement.

Installation

Follow ESD protection procedure. Place appliance on flat surface or install rack mount kit. Connect DC power adapter. Insert SFP+ transceiver and fiber/DAC cable for uplink. Connect local copper terminals to RJ45 ports. Access serial console or OOB management interface for initial VOSS configuration, fabric registration, VPN and VLAN setup. Verify fabric connection and port status after boot-up.

Interface

6×1G RJ45 ports,2×10G SFP+ slots,USB port,serial console port,DC power input,status LED indicators for Extreme Networks XA1440.

Feature

Original Extreme Networks XA1440 branch fabric gateway appliance,compact desktop/rack mount,6×1G copper +2×10G SFP+,4-core CPU,8G RAM,32G SSD,VOSS OS,SPBM fabric and IPsec VPN. This spare unit is used for remote branch office fabric network maintenance and hardware replacement.

Diagnostic

Device fails to boot: Check DC power adapter and power input. Fabric connection down: Verify uplink SFP+ module, fiber cable and fabric configuration match core. VPN tunnel cannot establish: Confirm IPsec policy, pre-shared key and WAN route. High CPU load: Check traffic statistics and firewall rule count. Temperature alarm: Inspect ventilation and ambient room temperature.

Product BriefXA1440 is Extreme Networks XA1400 series compact VOSS branch fabric gateway with 6 gigabit copper and dual 10G SFP+ uplink ports, supports SPBM Fabric Connect and IPsec VPN,classic spare for small remote branch office network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
