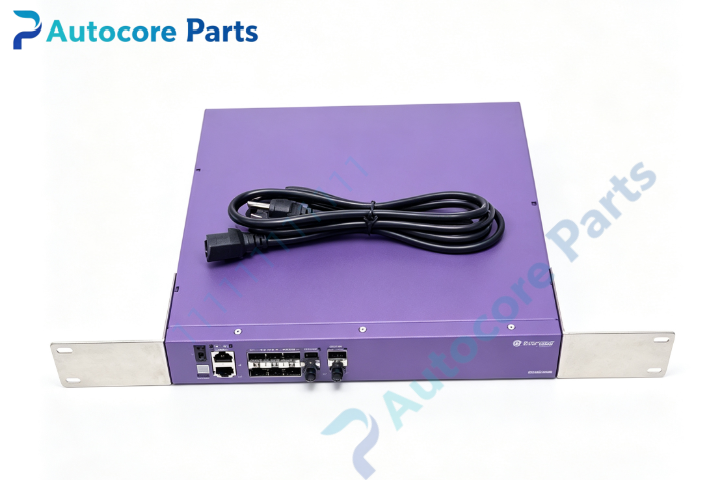

Extreme Networks X620-10X-BASE 10-Port 10G SFP+ Edge Ethernet Switch

Technical Specifications

Model：X620-10X-BASE Brand：Extreme Networks Product Type: 1U compact rack mount Layer2/L3 10G fiber edge switch (X620 family base unit)

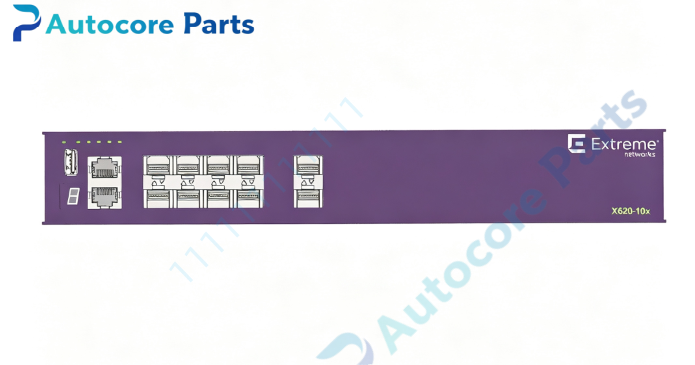

Front Ports:

• 10 × 100M/1G/10G SFP+ slots, auto-speed sensing, for transceivers / DAC / AOC cables

• RJ45 serial console port for local CLI management

• 1×10/100/1000BASE-T OOB management RJ45 port

• USB 2.0 port for firmware upgrade and configuration backup

• LED indicators for stack ID, port link, activity, power and fault alarm

Rear Panel Interfaces:

• Integrated internal AC power supply

• Optional external redundant power connector for backup power

• Equipment grounding lug

Switching & Layer Features: Switch Fabric: Non-blocking wire-speed performance Forwarding Rate: Wire-speed forwarding MAC Address Table: 128K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static & dynamic routing, policy-based routing Security: 802.1X, ACL, storm control, MAC filtering QoS: Hardware L2-L4 classification, multiple priority queues Stacking: SummitStack-V, stack up to 8 X620 switches as one logical device OS: ExtremeXOS operating system

Power & Mechanical: Power Supply: Built-in AC power supply, optional external redundant PSU Cooling: Integrated fixed fan module Operating temperature：0℃ ~ +40℃ Dimension: 44mm(H) ×305mm(W) ×261mm(D) Weight: Approx 2.77 kg Mounting: Standard 19-inch 1U rack bracket

System compatibility

X620-10X-BASE belongs to Extreme X620 high-speed edge switch family. Compatible with Extreme certified SFP+ transceivers, DAC and AOC fiber cables. Supports SummitStack-V stacking with other X620 series switches. Designed for high-performance workgroup, server and storage access. Widely used for enterprise high-speed edge network spare replacement.

Function

X620-10X-BASE is compact 10-port 10G SFP+ edge switch manufactured by Extreme Networks. It delivers wire-speed 10G fiber connectivity for servers, storage and high-end workstations. ExtremeXOS supports full L2 switching and L3 IPv4/IPv6 routing. SummitStack-V stacking combines up to 8 units for simplified centralized management. Built-in power supply reduces hardware complexity, and external redundant power option improves uptime for critical networks. Widely deployed for studio, lab, server room high-speed edge network spare replacement.

Installation

Follow ESD protection procedure. Mount switch into standard 19-inch rack. Insert SFP+ transceivers or DAC/AOC cables. Connect AC power cord. Access console port for initial ExtremeXOS configuration, set VLAN, routing, ACL and SummitStack-V stacking policy. Verify port link and stack status after power-up.

Interface

10×SFP+ slots,USB 2.0 port,RJ45 serial console port,1G OOB management port,internal AC power input,redundant power connector,status LED indicators for Extreme Networks X620-10X-BASE.

Feature

Original Extreme Networks X620-10X-BASE compact 1U 10G edge switch,10×multi-speed SFP+ ports,ExtremeXOS OS,SummitStack-V stacking support,integrated AC power. This spare unit is used for high-speed server,storage and workgroup edge network maintenance and hardware replacement.

Diagnostic

Switch boot failure: Check AC power cord and wall outlet. SFP+ port link down: Verify transceiver compatibility, optical power and fiber connector cleanliness. Stack split fault: Confirm stacking cable and match ExtremeXOS firmware version between stack members. High temperature alarm: Inspect fan operation and rack ventilation. Cannot access CLI: Check console cable and terminal baud settings.

Product BriefX620-10X-BASE is Extreme Networks X620 series compact 1U edge switch with 10 multi-speed SFP+ ports, ExtremeXOS and SummitStack-V stacking,classic spare for high-speed server and storage access network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
