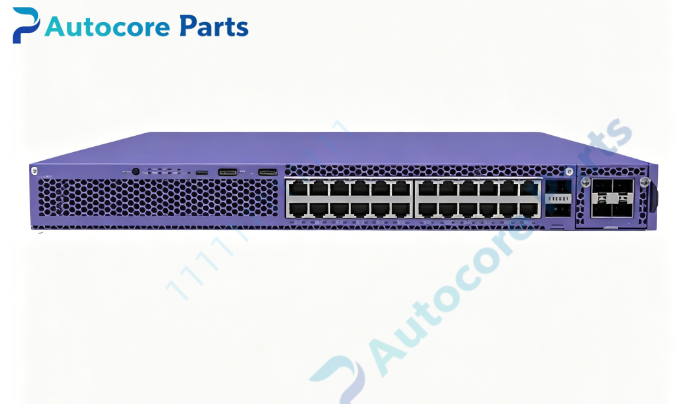

Extreme Networks X465-24MU-24W High Power Multi-Gigabit PoE Edge Switch

Technical Specifications

Model：X465-24MU-24W Brand：Extreme Networks Product Type: 1U rack mount Layer2/L3 stackable multi-gigabit high-power PoE enterprise edge switch

Front Ports:

• 24 × 100M/1G/2.5G/5GBASE-T multi-gigabit RJ45 ports, IEEE802.3bt Type3, max 60W per port

• 24 × 10/100/1000BASE-T RJ45 ports, IEEE802.3bt Type4, max 90W per port, MACsec supported

• 1 × USB 2.0 port

• 1 × Micro-B USB console port

• LED indicators for port link, activity, power, fan and system health

Rear Panel Interfaces:

• 1 × OOB 10/100/1000BASE-T management port

• 1 × VIM5 modular uplink slot, compatible with 10G/25G/40G modules

• Dual hot-swappable AC PSU slots, optional 1100W / 2000W power supply

• 3 hot-swappable fan modules, front-to-back airflow

• SSD slot for Integrated Application Hosting

Switching & Layer Features: Switch Fabric: 336 Gbps full duplex Forwarding Rate: 249 Mpps MAC Address Table: 128K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static & dynamic routing, VRF support Security: 802.1X, MAC authentication, storm control, ACL, MACsec link encryption QoS: Hardware L2-L4 classification, 8 priority queues Stacking: Support stacking, up to 8 switches form single logical unit Fabric: Compatible with Extreme Fabric Connect Management: ExtremeXOS OS, SNMP, SSH, Web GUI, ExtremeCloud IQ, Extreme Management Center Onboard Hardware: Integrated Application Hosting support with SSD

Power & Mechanical: Power Supply: Dual hot-swappable AC PSU slots, optional 1100W or 2000W PoE power module Cooling: 3 hot-swappable fan modules, front-to-back airflow Operating temperature：0℃ ~ +50℃ Dimension: 442mm × 43.6mm × 425mm Weight: Approx 9.7 kg (chassis without PSU) Mounting: Standard 19-inch 1U rack bracket Software OS: ExtremeXOS

System compatibility

X465-24MU-24W belongs to Extreme X465 premium OmniEdge switch family. Compatible with VIM5 series uplink modules and certified optical transceivers. Supports stacking with other X465 series switches. Built for high-density Wi-Fi6/7 AP, PTZ camera, IoT terminal requiring high PoE power. Widely used for high-end campus, smart building and factory edge network spare replacement.

Function

X465-24MU-24W is 1U high-performance multi-gigabit high-power PoE edge switch manufactured by Extreme Networks. It combines 24 multi-gig 60W PoE ports and 24 1G 90W high-power PoE ports, supplying data and power to high-performance wireless APs and industrial cameras. VIM5 modular slot provides flexible high-speed uplink choices. MACsec enables secure link encryption. Integrated Application Hosting supports onboard service deployment. Stacking and Fabric Connect simplify large campus network management. Hot-swappable power and fan modules guarantee high availability. Widely deployed for smart campus, commercial building and industrial high-power PoE access network spare replacement.

Installation

Follow ESD protection procedure. Mount switch to standard 19-inch 1U rack. Install matched AC power supply and fan modules. Install VIM5 uplink module and transceiver if fiber uplink needed. Use Cat6A/Cat7 copper cables for multi-gigabit PoE terminals. Access console port for initial ExtremeXOS configuration, set VLAN, PoE profile, stacking, routing and Fabric Connect. Verify port connectivity and PoE power output after power-up.

Interface

24×Multi-Gig 60W PoE RJ45 ports,24×1G 90W PoE RJ45 ports,VIM5 modular uplink slot,USB port,Micro-B console port,OOB management port,dual hot-swap PSU slots,3 hot-swap fan trays,SSD slot,LED indicators for Extreme Networks X465-24MU-24W.

Feature

Original Extreme Networks X465-24MU-24W premium multi-gigabit PoE edge switch,1U,24×5G 60W PoE +24×1G 90W PoE,VIM5 modular uplink,MACsec encryption,Fabric Connect,IAH,ExtremeXOS OS,support hot-swappable redundant power and fan. This spare unit is used for high-power multi-gigabit enterprise edge network maintenance and hardware replacement.

Diagnostic

Switch boot failure: Check AC power input and PSU installation status. PoE port no power: Verify total PoE power budget, cable grade and powered device compatibility. Multi-gig port link abnormal: Confirm Cat6A/Cat7 cable and cable length limitation. Uplink port down: Check VIM5 module and transceiver compatibility, inspect fiber. Overheat alarm: Check fan modules running status and rack ventilation.

Product BriefX465-24MU-24W is Extreme Networks X465 series 1U premium multi-gigabit high-power PoE stackable edge switch with mixed 60W/90W PoE ports and VIM5 modular uplink, MACsec and IAH capability,classic spare for smart building and high-density Wi-Fi edge network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
