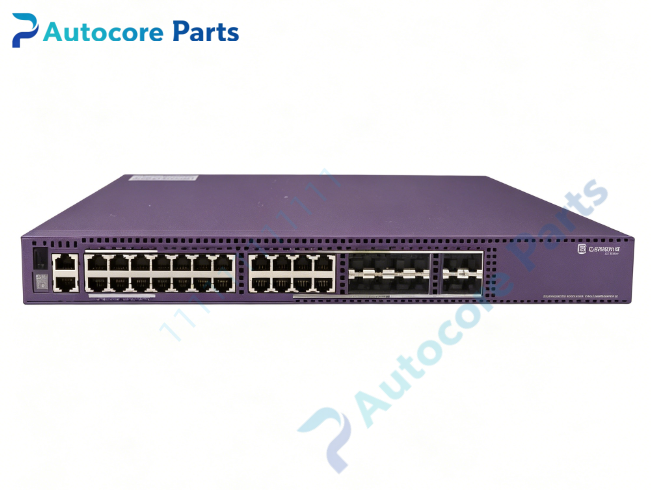

Extreme Networks X460-G2-24t-10GE4 Gigabit Edge Access Switch

Technical Specifications

Model：X460-G2-24t-10GE4 Brand：Extreme Networks Product Type: 1U rack mount Layer2/L3 stackable gigabit enterprise edge switch

Front Ports:

• 24 × 10/100/1000BASE-T RJ45 auto-sensing copper ports, 4 ports combo shared with SFP

• 4 × 10GBASE-X SFP slots for high-speed uplink or stacking

• 1 × USB 2.0 port

• 1 × RJ45 serial console port

• LED indicators for port link, activity, power and fault alarm

Rear Panel Interfaces:

• 1 × OOB 10/100/1000BASE-T management port

• 1 × VIM modular slot for optional 10G/40G uplink module

• 1 × timing clock module slot

• Dual hot-swappable PSU slots, support AC / DC power modules

• Hot-swappable fan tray, airflow direction optional

Switching & Layer Features: Switch Fabric: 296 Gbps full duplex Forwarding Rate: 220.2 Mpps MAC Address Table: 128K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static & dynamic routing Security: 802.1X, MAC authentication, storm control, bidirectional ACL QoS: Hardware L2-L4 classification, 8 priority queues Stacking: SummitStack-V, up to 8 switches stacked as one logical unit Management: ExtremeXOS OS, SNMP, SSH, Web GUI, Extreme Management Center Time Sync: SyncE, IEEE1588 PTP support

Power & Mechanical: Power Supply: Dual hot-swappable 300W AC / DC PSU modules (sold separately) Cooling: Hot-swappable fan tray, front-to-back or back-to-front airflow optional Operating temperature：0℃ ~ +50℃ Dimension: 442mm × 44mm × 380mm Weight: Approx 5.86 kg Mounting: Standard 19-inch 1U rack bracket Software OS: ExtremeXOS

System compatibility

X460-G2-24t-10GE4 belongs to Extreme X460-G2 enterprise edge switch family. Compatible with Extreme certified SFP and SFP+ transceivers, DAC cables. Supports SummitStack-V stacking with other X460-G2 switches. VIM slot supports optional high-speed uplink module. Designed for enterprise campus, office building and factory gigabit access and small aggregation network. Widely used for network upgrade and spare replacement.

Function

X460-G2-24t-10GE4 is 1U stackable gigabit edge switch manufactured by Extreme Networks. It provides 24×1G copper ports for desktop and terminal access, with 4×10G SFP+ high-speed uplink ports to aggregation or core switch. SummitStack-V combines multiple physical switches into one logical device for simplified centralized management. Supports IPv4/IPv6 routing, 802.1X port security, VLAN segmentation and hardware QoS. Modular power and fan design improves system reliability and allows online maintenance. PTP and SyncE timing function fit industrial and precise clock network. Widely deployed for campus, factory and commercial building access network spare replacement.

Installation

Follow ESD protection procedure. Mount switch to standard 19-inch 1U rack. Install matched AC/DC power supply and fan tray. Insert SFP/SFP+ transceivers or DAC cables. Use Cat5e/Cat6 copper cables for gigabit terminals. Access serial console port for initial ExtremeXOS configuration, set VLAN, stacking, routing and QoS policy. Verify port connectivity and stack status after power-up.

Interface

24×1G RJ45 ports,4×10G SFP+ slots,USB port,serial console port,OOB management port,VIM module slot,timing slot,dual hot-swap PSU slots,hot-swap fan tray,LED indicators for Extreme Networks X460-G2-24t-10GE4.

Feature

Original Extreme Networks X460-G2-24t-10GE4 gigabit edge switch,1U,24×1G copper +4×10G SFP+,SummitStack-V stacking,ExtremeXOS OS,support hot-swappable modular power and fan,SyncE / PTP timing. This spare unit is used for enterprise campus and industrial gigabit access network maintenance and hardware replacement.

Diagnostic

Switch boot failure: Check AC/DC power input and PSU installation status. Copper port link down: Inspect Cat5e/Cat6 cable quality and termination. 10G port no link: Confirm SFP+ transceiver/DAC compatibility, inspect fiber end face. Stack split fault: Verify stacking cable and module, match ExtremeXOS firmware version. Overheat alarm: Check fan tray running status and rack ventilation.

Product BriefX460-G2-24t-10GE4 is Extreme Networks X460-G2 series 1U stackable gigabit access switch with 24 copper ports and quad 10G SFP+ uplink, modular power and fan, PTP timing,classic spare for enterprise edge and small aggregation network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
