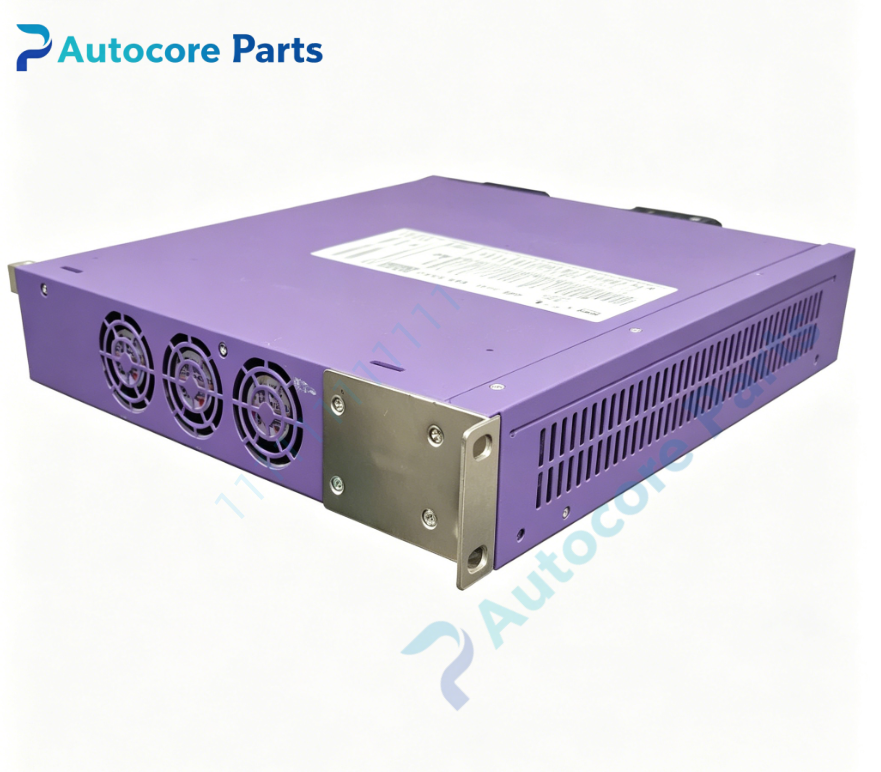

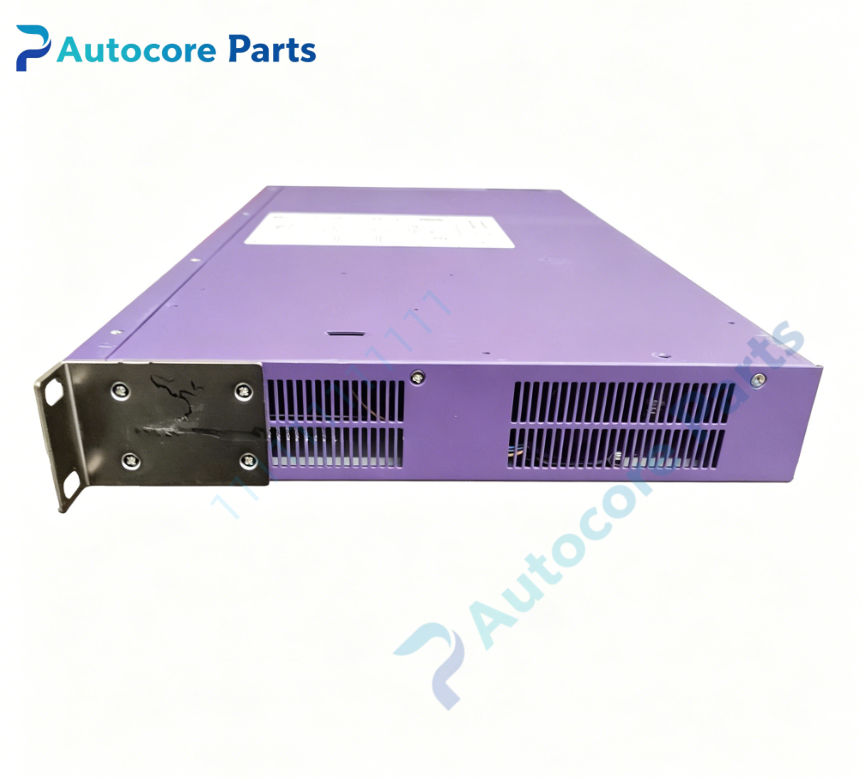

Extreme Networks X440-G2-24P-10GE4 Gigabit PoE+ Access Switch

Technical SpecificationsModel:X440-G2-24P-10GE4 Brand: Extreme Networks Product Type: Enterprise Stackable Gigabit PoE+ Access Switch Ports:

• 24 × 10/100/1000BASE-T RJ45, 802.3at PoE+ (30W per port)

• 4 × SFP+ slots, 1G by default, 10G enabled via license; 2 ports support stacking Management ports:

• 1 × RJ45 serial console port

• 1 × 10/100/1000M OOB out-of-band management port

• 1 × USB-A port for file storage Redundancy: Supports external RPS redundant power supply Operating system: ExtremeXOS Switching capacity:128 Gbps Forwarding rate:95.2 Mpps PoE budget:380W built-in PoE power Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~95%, non-condensing Weight:3.1 kg

System compatibilityX440-G2-24P-10GE4 belongs to Extreme Networks X440-G2 edge switch series. It can be stacked with other X440-G2 switches. Compatible with Extreme WS series wireless APs, IP phones and PoE cameras. Supports ExtremeCloud IQ and Site Engine management. Widely deployed for campus and office wiring closet access layer, available as network spare replacement.

FunctionX440-G2-24P-10GE4 is cost-effective enterprise access layer PoE+ switch. It provides gigabit wired access and up to 30W PoE+ power for wireless APs, IP phones and surveillance cameras. It supports L2 switching, static routing, ACL, QoS, VLAN and stacking. It monitors port status, PoE power consumption, internal temperature and power supply status. It triggers alarms for port down, PoE overload and over-temperature. Used to replace faulty PoE+ access switches for campus wiring closet overhaul.

InstallationPower off before installation. Mount the switch on 19-inch rack. Connect AC power cord; connect external RPS for redundancy if required. Connect RJ45 cables to PoE endpoints. Insert SFP+ transceivers into uplink/stacking slots. Connect console cable for initial configuration. Verify boot, PoE allocation and port online status before putting into production.

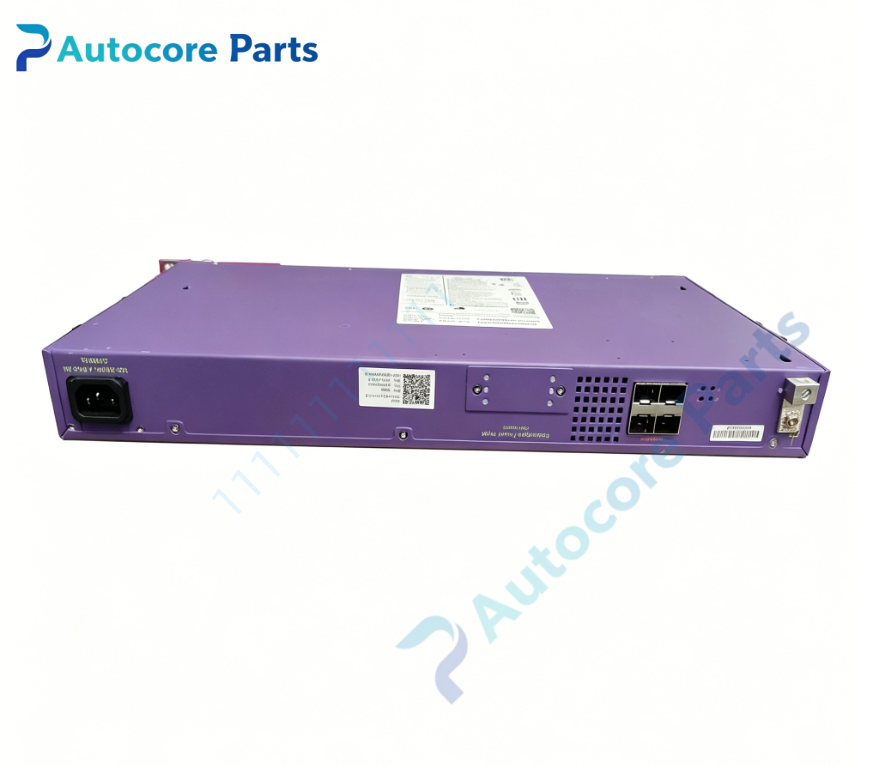

Interface24×PoE+ RJ45 ports,4×SFP+ slots, RJ45 serial console, OOB management port, USB-A, status LEDs, rack mounting ears for Extreme Networks X440-G2-24P-10GE4.

FeatureOriginal Extreme Networks X440-G2 PoE+ switch, ExtremeXOS OS, 802.3at 30W PoE+, 10G SFP+ uplink via license, stacking capability, external redundant power support, built-in self-diagnostic function. This spare supports cost-sensitive enterprise campus edge deployment.

DiagnosticSwitch fails to boot: check AC power and power cord. No PoE output: verify PoE budget and port PoE enable configuration. Port link down: check cable, SFP+ transceiver and port admin status. Stacking failure: confirm stacking transceivers, firmware version match and stacking configuration. Over-temperature alarm: inspect chassis ventilation.

Product BriefX440-G2-24P-10GE4 is Extreme Networks 24-port gigabit PoE+ stackable access switch with 4×SFP+ uplink ports (10G license optional), 380W PoE budget, classic spare part for cost-effective campus wiring closet network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
