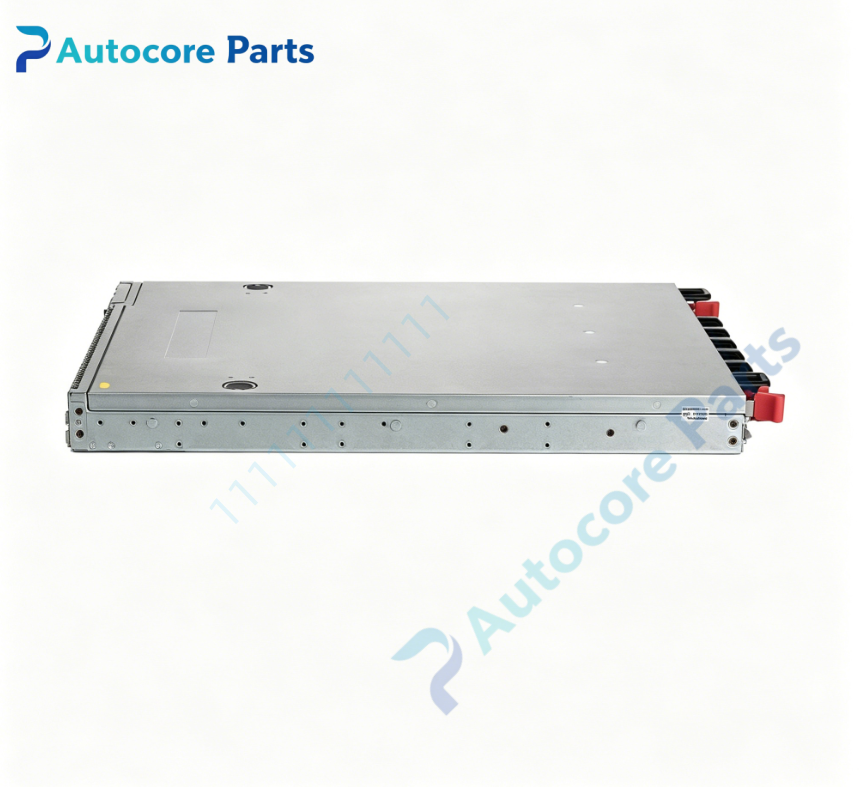

Extreme Networks VSP7400-48Y-8C-AC-F Ethernet Switch

Technical SpecificationsModel: VSP7400-48Y-8C-AC-F Brand: Extreme Networks Product Type: 1U Layer2/3 Fabric Leaf & Aggregation Switch Mounting: 19-inch rack mount Operating temperature: 0℃ ~ +45℃ Storage temperature: -40℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 Ports:

• 48 × SFP28 ports (1G/10G/25G)

• 8 × QSFP28 ports (40G/100G)

• 1 × RJ45 console port

• 1 × USB port Switching capacity: 4.0 Tbps CPU: Octal-core processor Memory: 16GB RAM +128GB SSD Power supply: 1×750W AC power supply, one spare PSU slot Fans: 6 built-in fan modules, front-to-back airflow Weight: 7.1 kg

System compatibilityVSP7400-48Y-8C-AC-F belongs to Extreme VSP7400 VOSS fabric switch family. It supports Extreme Fabric Connect, can form spine-leaf architecture with VSP7400, VSP8400 series core switches. Compatible with SFP28,QSFP28,QSFP+ optical transceivers. Widely deployed in data center, cloud computing and high-performance enterprise aggregation network, used for network upgrade and spare replacement.

FunctionVSP7400-48Y-8C-AC-F serves as high-density leaf or aggregation switch for data center. It supports 25G server access and 100G uplink to spine layer. It implements Layer2 switching, Layer3 routing, VLAN, VXLAN, EVPN, ACL, QoS and Fabric Connect virtual networking. It monitors transceiver optical power, port link status, fan speed, temperature and power status. It triggers alarm for port down, over-temperature, power failure and optical signal loss. It is used to replace failed aggregation/leaf switch in data center fabric network.

InstallationCut off power before installation. Mount the 1U switch into standard 19-inch rack. Insert SFP28/QSFP28 transceivers into corresponding slots. Connect AC power, fiber cables, console port and ground wire. Boot VOSS operating system, configure fabric, VLAN, routing and EVPN parameters. Verify port status and traffic forwarding before putting into production.

Interface48×SFP28 slots,8×QSFP28 slots,RJ45 console port,USB port,AC power inlet, status LED indicators for Extreme Networks VSP7400-48Y-8C-AC-F.

FeatureOriginal Extreme Networks VSP7400 switch, VOSS operating system, front-to-back airflow, high-density 25G access +100G uplink, EVPN/VXLAN support, fabric connect technology, hot-swappable fans and optional redundant power supply, built-in self-diagnostic function. This spare supports data center and high-speed enterprise network maintenance.

DiagnosticNo power LED: check AC input power and 750W PSU of VSP7400-48Y-8C-AC-F. Port link down: verify transceiver, fiber cable, optical power and port administrative status. Fabric connection failure: check QSFP28 uplink modules, cable and fabric configuration. Over-temperature alarm: check fan operation, air inlet/outlet blockage and cabinet ventilation.

Product BriefVSP7400-48Y-8C-AC-F is Extreme Networks 1U high density fabric switch with front-to-back airflow. It has 48×25G SFP28 ports and 8×100G QSFP28 uplink ports, designed for data center leaf and aggregation layer, classic spare part for data center network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
