Extreme Networks VSP4900-12MXU-12XE-B Ethernet Switch

Technical SpecificationsModel: VSP4900-12MXU-12XE-B Brand: Extreme Networks Product Type: Fixed-port Layer 2/3 Fabric Ethernet Switch Mounting: 19-inch rack mount Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 Ports:

• 12 × 100M/1/2.5/5/10GBASE-T RJ45, IEEE802.3bt Type3 60W PoE

• 12 × 1/10G SFP+ fiber ports, MACsec 256-bit encryption

• 1 × RJ45 console port

• 1 × 10/100/1000M out-of-band management port

• USB Micro-B + dual USB-A

• 1 × VIM5 modular uplink slot Weight: 6.2 kg

System compatibilityVSP4900-12MXU-12XE-B belongs to Extreme VSP4900 VOSS fabric switch family. It supports VIM5 uplink modules including VIM5-2Q, VIM5-4X, VIM5-4YE. Compatible with Extreme Fabric Connect, works with VSP7400, VSP8400 core switches for campus, enterprise and data center edge deployment. Widely used for network upgrade and spare replacement.

FunctionVSP4900-12MXU-12XE-B is enterprise multi-gigabit fabric switch for network edge and aggregation. It delivers 60W high-power PoE for wireless AP, IP camera and desktop terminals. It supports Layer2 switching, Layer3 routing, VLAN, QoS, ACL, MACsec encryption and Fabric Connect virtual networking. It monitors port link status, PoE power consumption, module temperature and fan status. It triggers alarm for power failure, port down, over-temperature and PoE overload. Used for replacing failed switch in enterprise campus network.

InstallationPower off before installation. Mount the unit into standard 19-inch rack. Install SFP transceivers into SFP+ slots and VIM5 uplink module into VIM5 slot. Connect power supply, Ethernet cables, console and management port. Configure VOSS operating system, fabric parameters, PoE profiles and VLAN settings. Verify all port status and network traffic before putting into production.

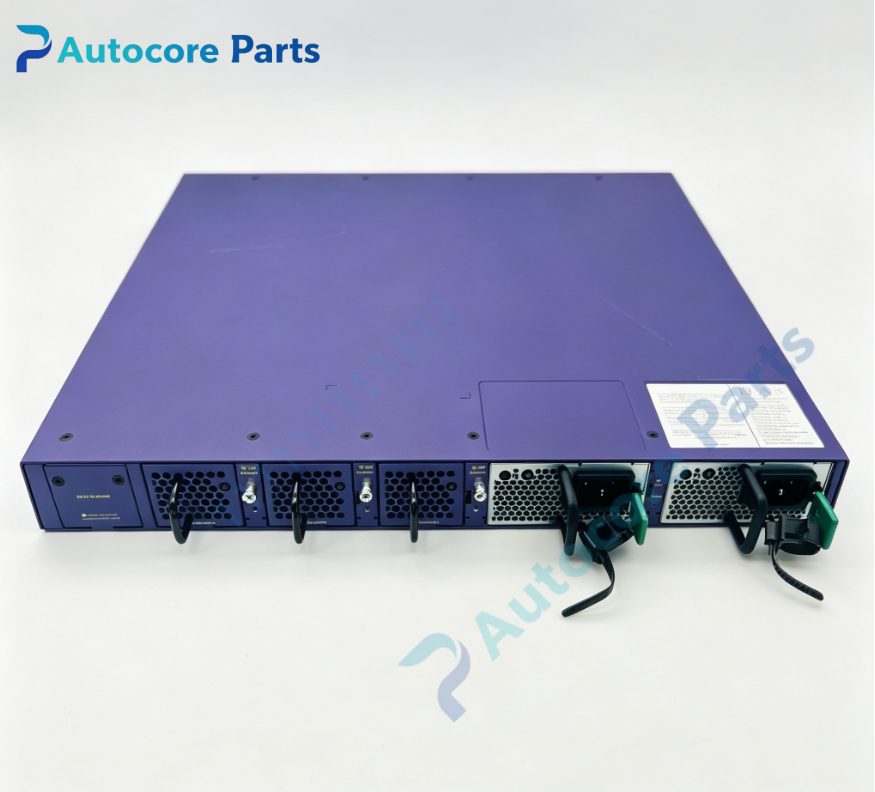

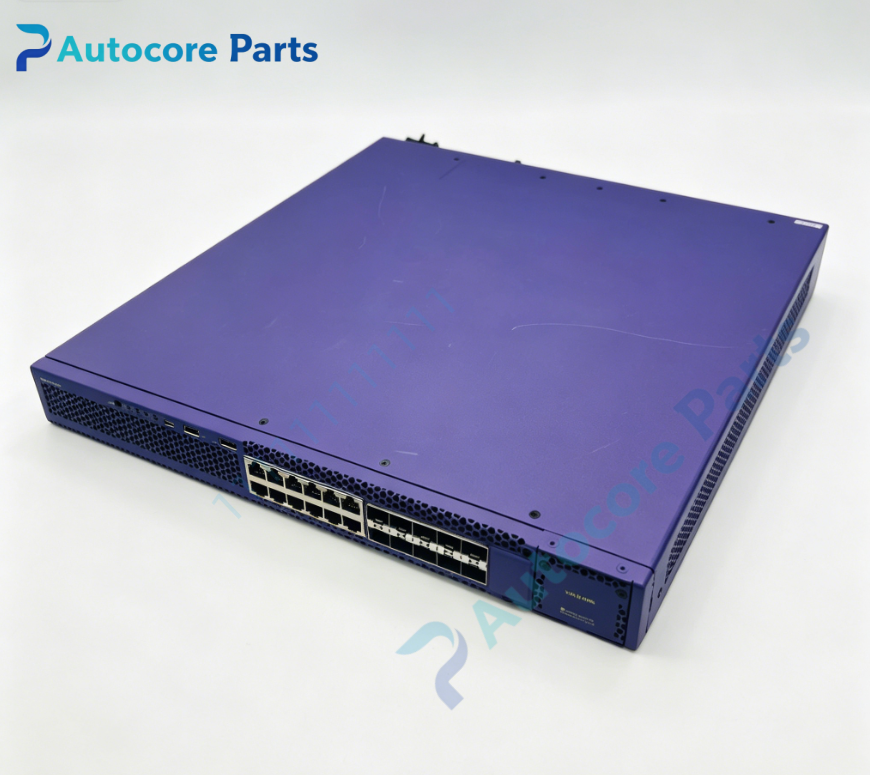

Interface12×RJ45 multi-gig PoE ports, 12×SFP+ slots, VIM5 expansion slot, RJ45 console, 10/100/1000M management port, USB ports, power inlet, status LED indicators for Extreme Networks VSP4900-12MXU-12XE-B.

FeatureOriginal Extreme Networks VSP4900 series switch, VOSS operating system, Fabric Connect technology, 60W high-power multi-gig PoE, MACsec link encryption, modular uplink expansion, built-in fan and power supply redundancy option, rich security and QoS functions. This spare supports enterprise campus and industrial network maintenance.

DiagnosticNo power: check power supply input and internal power module. PoE not output: verify PoE budget, port PoE configuration and cable quality. Port link down: check transceiver, fiber/copper cable, negotiation mode and port shutdown status. Fabric connection failure: check VIM5 module, uplink port and fabric configuration.

Product BriefVSP4900-12MXU-12XE-B is Extreme Networks VSP4900 fabric switch with 12 multi-gig 60W PoE copper ports and 12 MACsec-capable SFP+ fiber ports, plus VIM5 uplink slot, enterprise spare for campus edge network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
