Extreme Networks V400-24t-10GE2 Gigabit Stackable Access Switch

Technical Specifications

Model：V400-24t-10GE2 Brand：Extreme Networks Product Type: 1U rack mount Layer2/L3 stackable gigabit enterprise edge access switch

Front Ports:

• 24 × 10/100/1000BASE-T RJ45 auto-sensing copper ports

• 2 × 10G SFP+ high-speed uplink slots for fiber or DAC cable

• 1 × USB 2.0 port

• 1 × RJ45 serial console port

• LED indicators for port link, activity, power and system health

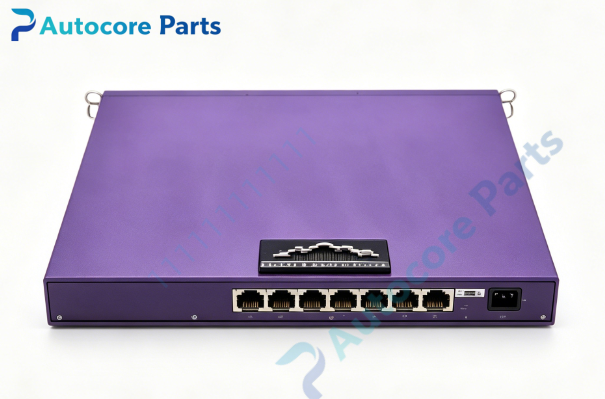

Rear Panel Interfaces:

• 1 × OOB 10/100/1000BASE-T management port

• Built-in fixed AC power supply

• RPS redundant power backup interface

Switching & Layer Features: Switch Fabric: 128 Gbps full duplex Forwarding Rate: 95.2 Mpps MAC Address Table: 128K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static & dynamic routing Security: 802.1X, MAC authentication, storm control, bidirectional ACL QoS: Hardware L2-L4 classification, 8 priority queues Stacking: Support stacking, multiple switches combine into single logical device Management: ExtremeXOS OS, SNMP, SSH, Web GUI, Extreme Management Center

Power & Mechanical: Power Supply: Built-in fixed AC 100-240V power supply Cooling: Internal fixed fan, front-to-back airflow Operating temperature：0℃ ~ +50℃ Dimension: 442mm × 44mm × 300mm Weight: Approx 4.5 kg Mounting: Standard 19-inch 1U rack bracket Software OS: ExtremeXOS

System compatibility

V400-24t-10GE2 belongs to Extreme V400 series enterprise edge switch family. Compatible with Extreme certified SFP+ transceivers and DAC cables. Supports stacking with other V400 series switches. Designed for enterprise office, factory and campus gigabit access layer network. Widely used for LAN upgrade and spare replacement.

Function

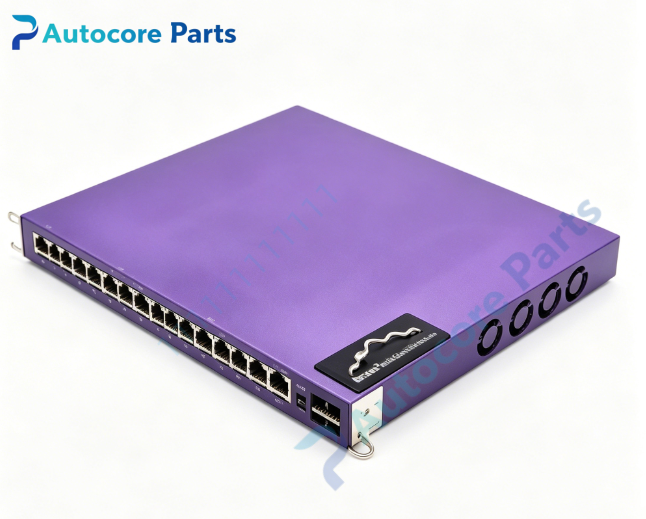

V400-24t-10GE2 is 1U stackable gigabit edge switch manufactured by Extreme Networks. It provides 24 gigabit copper ports for desktop terminal access and 2×10G SFP+ uplink ports to aggregation or core switch. Stacking function combines multiple physical switches as one logical unit to simplify centralized network management. Supports full IPv4/IPv6 routing, 802.1X port authentication, VLAN segmentation and hardware QoS. Built-in power supply reduces deployment complexity. Widely deployed for campus, factory and commercial building access network spare replacement.

Installation

Follow ESD protection procedure. Mount switch to standard 19-inch 1U rack. Connect AC power cord. Insert SFP+ transceivers or DAC cables for high-speed uplink. Use Cat5e/Cat6 copper cables for gigabit terminals. Access serial console port for initial ExtremeXOS configuration, set VLAN, stacking, routing and QoS policy. Verify port connectivity and stack status after power-up.

Interface

24×1G RJ45 ports,2×10G SFP+ uplink ports,USB port,serial console port,OOB management port,RPS backup power interface,built-in AC PSU,LED indicators for Extreme Networks V400-24t-10GE2.

Feature

Original Extreme Networks V400-24t-10GE2 campus edge switch,1U,24×1G copper +2×10G SFP+ uplink,stacking capability,ExtremeXOS OS,fixed internal power. This spare unit is used for enterprise campus gigabit access network maintenance and hardware replacement.

Diagnostic

Switch boot failure: Check AC power input and power cord connection. Copper port link down: Inspect Cat5e/Cat6 cable quality and termination. 10G port no link: Confirm SFP+ transceiver/DAC compatibility, check fiber end face. Stack split fault: Verify stacking cable, match ExtremeXOS firmware version. Overheat alarm: Check internal fan working condition and rack ventilation.

Product BriefV400-24t-10GE2 is Extreme Networks V400 series 1U stackable gigabit access switch with 24 copper gigabit ports and dual 10G SFP+ uplink, ExtremeXOS OS,classic spare for enterprise campus edge network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
