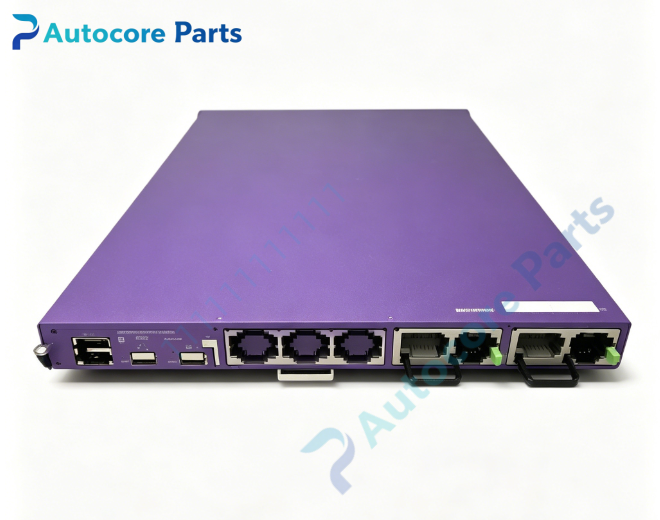

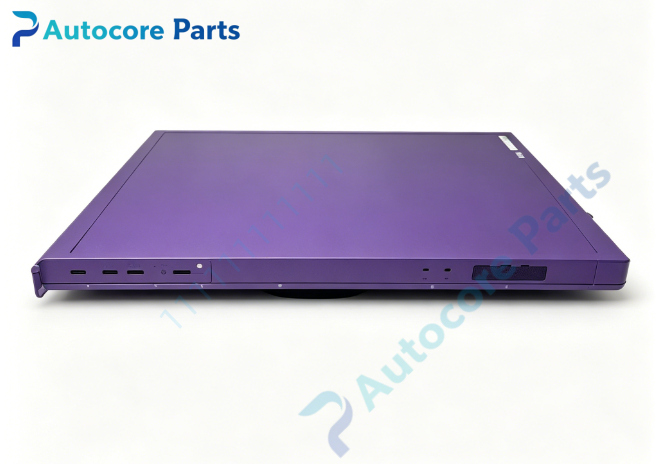

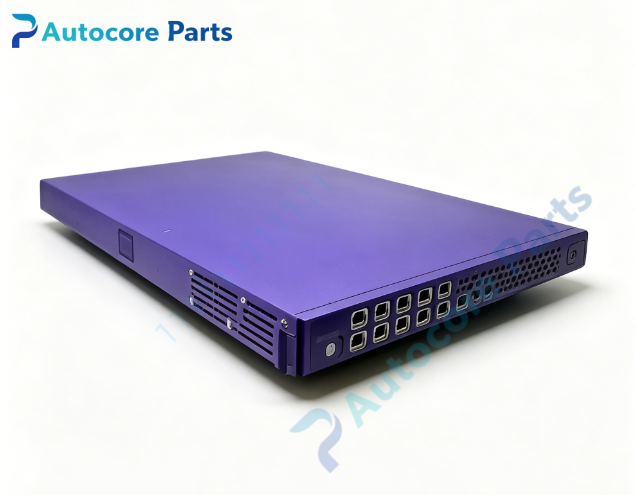

Extreme Networks Summit X650-24t 10G Copper Managed Switch

Technical SpecificationsModel:X650-24t Brand:Extreme Networks Product Type:1U rackmount fixed chassis Layer2/Layer3 managed switch (non-PoE) Ports:

• 24 ×1000/10000BASE-T RJ45 copper ports(10G or 1G auto-negotiation)

• 1 ×10/100/1000BASE-T out-of-band management port

• 1 ×RJ45 serial console port Rear expansion slot:VIM1 versatile interface module slot,supports SummitStack or 4×10G SFP+ uplink module Switching capacity:800Gbps Forwarding rate:596Mpps MAC address table:32000 entries Jumbo frame:9216 bytes Stacking:SummitStack, up to 8 switches stacked CPU/Memory:Dual-core 1GHz 64-bit MIPS CPU,1GB ECC DDR3 RAM OS:ExtremeXOS, supported version 12.2.1 ~15.3.x Power & fan:Dual hot-swappable 850W PSU bays(AC/DC optional),hot-swappable fan tray,front-to-back airflow Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~93%, non-condensing Weight:6.8kg

System compatibilityX650-24t belongs to Extreme Networks Summit X650 high-performance 10G aggregation family. Compatible with X650 series VIM modules including VIM1-SummitStack and VIM340G4X. Can stack with other X650 switches. Widely used for campus core aggregation and data center ToR spare replacement.

FunctionX650-24t is wire-speed Layer3 10G copper aggregation switch. 24×10GBASE-T ports connect to servers or downstream access switches; rear VIM module provides high-speed uplink or stacking. It supports static & dynamic routing,VLAN,STP/RSTP/MSTP,LACP/MLAG,ACL,QoS and multicast snooping. It monitors port link status,module temperature,power and fan health, and sends hardware fault alarms. Used for enterprise campus core and data center top-of-rack networks.

InstallationMount the switch on standard 19-inch 1U rack. Install hot-swappable PSU and fan tray. Install VIM uplink/stacking module as required. Connect 10G copper cables to front ports. Connect console port for ExtremeXOS configuration. Verify boot,port link and stacking function before commissioning.

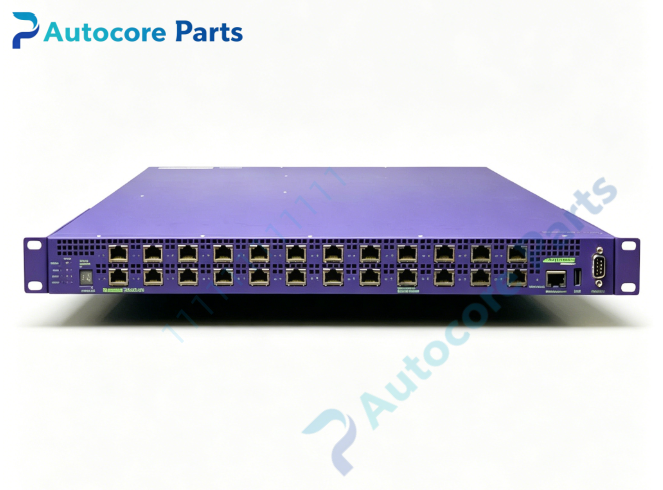

Interface24×10GBASE-T RJ45 ports,1G out-of-band management port,RJ45 serial console,status LEDs,reset button,rear VIM expansion slot,dual PSU bays,fan tray,ground terminal,rack mounting ears for Extreme Networks Summit X650-24t.

FeatureOriginal Extreme Networks Summit X650 1U rackmount 10G copper Layer3 aggregation switch,24 auto-sensing 10G/1G RJ45 ports,modular VIM rear expansion for stacking or 10G uplink,hot-swappable redundant PSU and fan tray,wire-speed non-blocking forwarding,ExtremeXOS operating system,built-in self-diagnostic function. This spare supports enterprise campus core and data center ToR network deployment.

DiagnosticSwitch fails to boot: check AC/DC power input and PSU module health. Copper port link down: inspect Cat6a/Cat7 cable quality and auto-negotiation settings. VIM module not detected: verify VIM compatibility and ExtremeXOS firmware version. Port speed unstable: check cable length limit and cable grade. Over-temperature alarm: check fan tray operation and rack ventilation,remove dust buildup. Stacking failure: verify matching ExtremeXOS firmware and stacking cable integrity.

Product BriefX650-24t is Extreme Networks Summit X650 series 1U rackmount Layer3 managed 10G copper switch with 24×10GBASE-T ports and rear VIM expansion slot,classic spare part for enterprise campus aggregation and data center top-of-rack network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
