Extreme Networks Summit X450e-24p Gigabit PoE Edge Access Switch

Technical SpecificationsModel：Summit X450e-24p Brand：Extreme Networks Product Type: 1U rack mount stackable enterprise Gigabit PoE Layer3 access switch

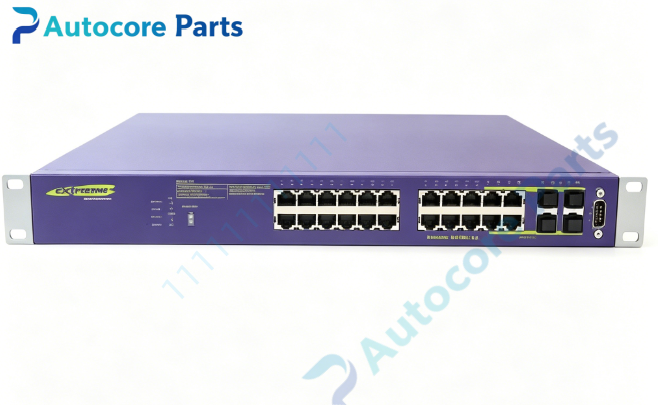

Front Ports:

• 24 × 10/100/1000BASE-T RJ45 PoE ports, IEEE802.3af, max 15.4W per port

• 4 × combo gigabit ports (ports 21-24 shared PHY): either 10/100/1000BASE-T RJ45 or 1G SFP fiber

• 1 × RJ45 serial console port

• LED indicators for port link, activity, stack ID and system health

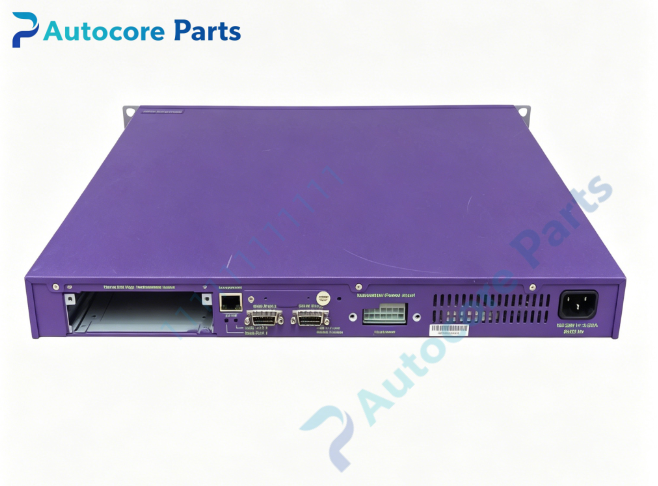

Rear Panel Interfaces:

• 1 × OOB 10/100BASE-T management port

• Expansion slot for XGM2 series dual 10G uplink card

• Dedicated SummitStack stacking ports

• AC power inlet

• External redundant power connector, compatible with EPS-500 external PSU

Switching & Layer Features: Switch Fabric: 128 Gbps Forwarding Rate: 95.2 Mpps MAC Address Table: 8K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static routing Security: 802.1X, MAC filtering, storm control, centralized ACL, DoS protection QoS: Hardware L2-L4 classification, 8 priority queues per port Stacking: SummitStack, combine multiple X450e switches as single logical unit Management: SNMP, SSH, Web GUI, ExtremeXOS CLI

Power & Mechanical: Power Supply: Built-in universal AC 100-240V 50/60Hz, internal PoE budget 370W; full PoE for all ports requires external EPS-500 PSU Cooling: Built-in cooling fan Operating temperature：0℃ ~ +40℃ Dimension: 441mm × 44mm × 432mm Weight: Approx 6.2 kg Mounting: Standard 19-inch 1U rack bracket Software OS: ExtremeXOS, max supported EXOS version 15.3.x

System compatibility

Summit X450e-24p belongs to X450e gigabit edge switch family, PoE L3 model. Compatible with 1G SFP transceivers and XGM2 10G expansion card. Can stack with other X450e series switches. Supports EPS-500 external redundant power supply. End-of-sale platform, widely used for legacy enterprise campus PoE network maintenance replacement.

Function

Summit X450e-24p is 1U stackable Layer3 Gigabit PoE access switch for enterprise campus. 24 PoE ports supply data and power for wireless APs, IP phones and IP cameras. Four combo ports offer flexible uplink selection over copper or fiber. Rear expansion slot accepts XGM2 dual 10G card for high-speed uplink to aggregation/core layer. SummitStack technology merges multiple switches under one management domain. Supports IPv4/IPv6 static routing, 802.1X authentication, VLAN segmentation and hardware QoS to prioritize voice and video traffic. External EPS-500 redundant power interface improves system uptime. Widely deployed for office, school and hospital gigabit PoE access layer spare replacement.

InstallationFollow ESD protection procedure. Mount switch to standard 19-inch 1U rack. Connect AC power cord. Install EPS-500 external redundant PSU if full PoE capacity required. Insert SFP transceiver for fiber uplink or install XGM2 10G card for high-speed uplink. Deploy SummitStack cable for multi-unit stacking. Access serial console port for initial ExtremeXOS configuration, set VLAN, ACL and QoS policy. Verify stack synchronization and port connectivity after power-up.

Interface24×1G PoE RJ45 ports,4×gigabit combo ports,serial console port,OOB management port,XGM2 10G expansion slot,SummitStack stacking ports,AC power inlet,redundant power connector,LED indicators for Extreme Networks Summit X450e-24p.

FeatureOriginal Extreme Networks Summit X450e-24p legacy L3 PoE edge switch,24×1G PoE +4 gigabit combo uplink,optional XGM2 10G uplink,SummitStack stacking,ExtremeXOS OS,support EPS-500 external redundant power. This spare switch is used for enterprise PoE wired access network maintenance and hardware replacement.

DiagnosticSwitch boot failure: Check AC power input and cable, verify EPS-500 redundant power wiring if used. PoE port no power: Confirm external PSU installation, check PoE budget, inspect cable and powered device compatibility. Combo port link down: Confirm SFP compatibility, check cable and combo mode selection. 10G expansion card undetected: Power down and re-seat XGM2 card, check firmware compatibility. Stack split: Inspect stacking cable and match ExtremeXOS firmware version on stack members.

Product BriefSummit X450e-24p is Extreme X450e series 1U 24-port gigabit stackable Layer3 PoE access switch with combo uplink and optional 10G expansion slot,classic spare for legacy enterprise PoE wiring closet network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
