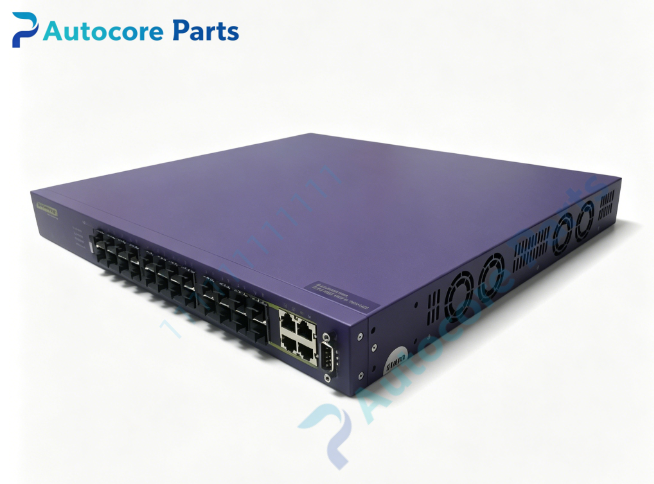

Extreme Networks Summit X450a-24X Gigabit Fiber Stackable Managed Switch

Technical SpecificationsModel:X450a-24X Brand:Extreme Networks Product Type:1U rackmount stackable Layer2/Layer3 managed switch (no PoE) Ports:

• 20 ×1000BASE-X SFP fiber ports

• 4 × combo ports: 10/100/1000BASE-T RJ45 or 1000BASE-X SFP Rear expansion slot:Supports XGM2 dual 10G SFP+ uplink option card Switching capacity:128 Gbps Forwarding rate:95.2 Mpps MAC address table:16000 entries VLAN:4094 VLANs Jumbo frame:9216 bytes CPU/Memory:400MHz CPU,256MB RAM OS:ExtremeXOS, maximum supported version 15.3 Management interfaces:Serial console port,10/100 out-of-band management port Power:Built-in AC power supply; DC version X450a-24XDC available Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:4.8kg

System compatibilityX450a-24X belongs to Extreme Networks Summit X450a legacy stackable family. Compatible with Extreme validated 1G SFP transceivers SX/LX. The rear slot supports XGM2 dual 10G uplink module. Multiple X450/X450a units can be stacked as one logical device. Widely used for enterprise wiring closet fiber access spare replacement.

FunctionX450a-24X is a stackable Layer3 gigabit fiber switch without PoE. It provides high-density SFP fiber ports for long-distance building access, plus four combo ports for flexible copper or fiber connection. It supports static & dynamic routing,VLAN segmentation,STP/RSTP/MSTP,LACP link aggregation,ACL,QoS and multicast control. It monitors SFP DDM optical diagnostics,port link status,system temperature and power health, and sends hardware fault alarms. Used for enterprise campus fiber edge access networks.

InstallationMount the switch on standard 19-inch 1U rack. Connect AC power. Install SFP transceivers and fiber cables. Install XGM2 10G uplink card if required. Connect console port for ExtremeXOS configuration. Verify boot,port optical link and stacking function before commissioning.

Interface20×1G SFP slots,4×combo SFP/RJ45 ports,serial console port,out-of-band management port,status LEDs,reset button,rear 10G option card slot,AC power inlet,ground terminal,rack mounting ears for Extreme Networks Summit X450a-24X.

FeatureOriginal Extreme Networks Summit X450a 1U rackmount stackable Layer3 fiber switch,20 fixed SFP plus 4 combo copper/fiber ports,optional dual 10G uplink expansion,DDM optical monitoring,ExtremeXOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise campus fiber edge access deployment.

DiagnosticSwitch fails to boot: check AC power input and internal power supply status. Fiber port link down: verify SFP transceiver, fiber cable and port admin status. Optical low power alarm: inspect dirty fiber end faces or damaged fiber cable. Combo port cannot switch: check ExtremeXOS configuration for combo mode. Over-temperature alarm: check internal fan operation and rack airflow,remove dust buildup. 10G option card not detected: confirm XGM2 card compatibility and firmware version.

Product BriefX450a-24X is Extreme Networks Summit X450a series 1U rackmount stackable Layer3 managed fiber switch with 20×1G SFP and 4×combo ports,plus rear slot for 10G uplink card,classic spare part for enterprise legacy fiber access network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
