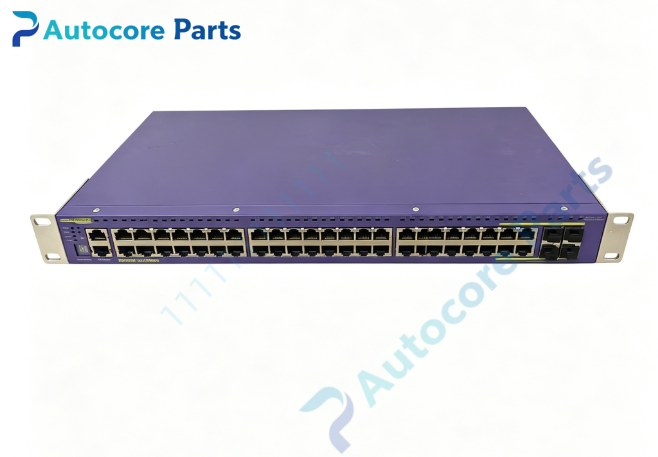

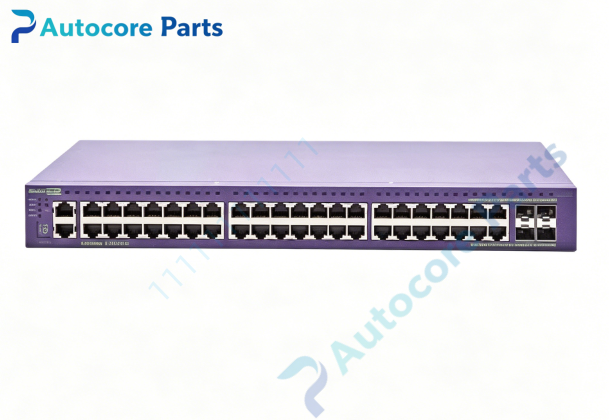

Extreme Networks Summit X440-48p Gigabit PoE+ Managed Switch

Technical SpecificationsModel：X440-48p Brand：Extreme Networks Product Type：1U rackmount Layer2/Layer3 managed PoE+ switch

Ports:

• 48 ×10/100/1000BASE-T RJ45 copper ports, IEEE802.3at PoE+, max 30W per port

• 4 ×combo 100/1000BASE-X SFP shared slots (shared with copper ports 45-48)

• 1 ×10/100BASE-T out-of-band management port

• 1 ×RJ45 serial console port

• External RPS redundant power connector

Switching capacity：104Gbps Forwarding rate：78Mpps MAC address table：32000 entries Jumbo frame：9216 bytes OS：ExtremeXOS Stacking：Supports SummitStack within X440 series PoE total power budget：380W

Power & fan：Built-in AC power supply, variable speed smart fans, front-to-back airflow Operating temperature：0℃ ~ +40℃ Storage temperature：-40℃ ~ +70℃ Relative humidity：10%~90%, non-condensing Weight：5.8kg

System compatibility

X440-48p belongs to Extreme Summit X440 stackable edge switch family. Compatible with Extreme validated 100BASE-FX / 1000BASE-X SFP transceivers. Managed via local CLI / web GUI. Widely used for enterprise campus, smart building PoE access for wireless APs, IP surveillance cameras and IP phones spare replacement.

Function

X440-48p is high-density stackable Layer3 gigabit PoE+ access switch. 48 PoE+ RJ45 ports deliver data and power to powered end terminals. Four combo SFP slots provide flexible gigabit fiber uplink. It supports static & dynamic routing, VLAN, STP/RSTP/MSTP, LACP link aggregation, ACL, QoS and multicast protocols. It monitors port link state, PoE power consumption, system temperature and fan health, and generates hardware fault alarms. Used for enterprise wiring closet high density PoE edge access networks.

Installation

Mount the switch on standard 19-inch 1U rack. Connect AC power cord. Insert SFP transceivers and fiber patch cords for fiber uplink if required. Connect console port for initial configuration and stacking setup. Verify boot,port link and PoE output function before commissioning.

Interface48×PoE+ RJ45 ports,4×combo GE SFP slots,out-of-band management port,RJ45 serial console,status LEDs,stack ID indicator,reset button,AC power inlet,RPS connector,ground terminal,rack mounting ears for Extreme Networks Summit X440-48p.

FeatureOriginal Summit X440 series 1U rackmount Layer3 stackable PoE+ switch,48×802.3at PoE+ ports plus 4 combo SFP fiber slots,380W PoE budget,ExtremeXOS OS,support SummitStack,smart fan cooling,built-in self-diagnostic function. This spare fits enterprise campus high-density PoE edge network maintenance and upgrade.

DiagnosticSwitch fails to boot: Check AC power input and power supply health. PoE port no power: Verify PoE total budget,PD classification and port admin status. Copper port link down: Inspect RJ45 cable quality and auto-negotiation settings. SFP port no link: Check SFP transceiver,fiber cable and peer device configuration. Low optical power alarm: Dirty fiber endfaces or damaged fiber cables. Transceiver undetected: Confirm Extreme compatible SFP module and correct insertion. Over-temperature alarm: Check fan operation and cabinet ventilation,clean dust buildup. Stack group split: Verify stacking cable and matched ExtremeXOS firmware version.

Product BriefX440-48p is Extreme Networks Summit X440 series 1U rackmount Layer3 stackable gigabit PoE+ managed switch with 48 PoE+ RJ45 ports and 4 combo GE SFP slots,classic spare part for enterprise wiring closet high-density PoE edge network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
