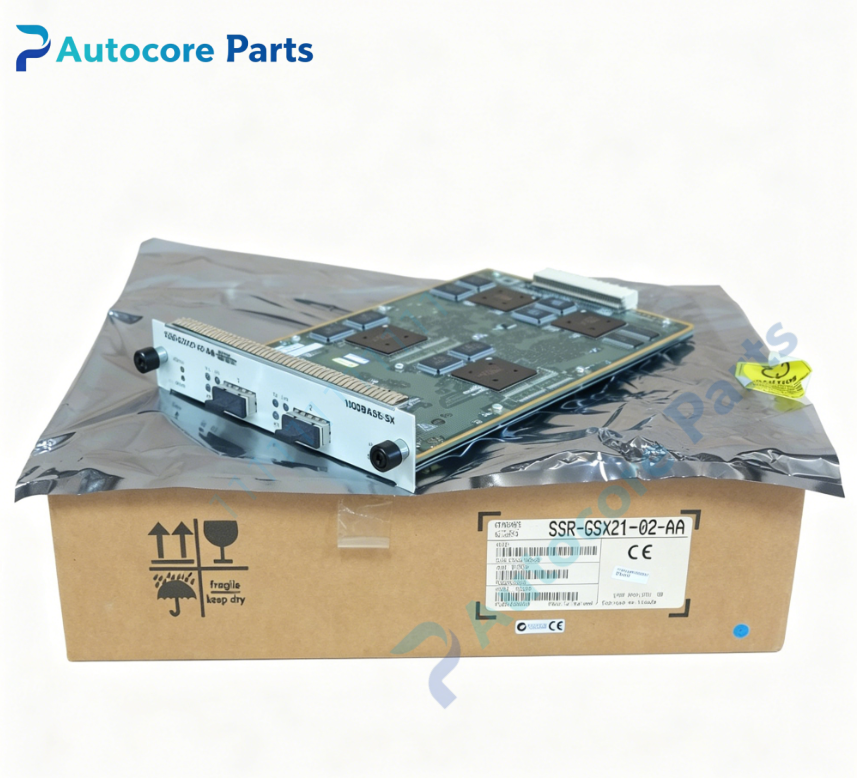

Extreme Networks SSR-GSX21-02-AA Gigabit SX I/O Line Card

Technical SpecificationsModel:SSR-GSX21-02-AA Brand:Extreme Networks Product Type:Hot-swappable I/O line card / blade Compatible chassis:X-Pedition 8000 / 8600 modular chassis router Ports:2 × SC 1000BASE-SX multimode fiber ports Speed:Wire-speed 1G per port Memory:16MB, supports up to 2 million flows Minimum OS:EOS (Enterasys Operating System) Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:1.3 kg

System compatibilitySSR-GSX21-02-AA belongs to Extreme Networks X-Pedition 8000/8600 chassis router family, formerly Enterasys. It plugs into the module slots of X-Pedition 8000 and 8600 chassis. Designed for core and aggregation layer gigabit fiber interconnection. Widely used for legacy enterprise and campus core network spare replacement.

FunctionSSR-GSX21-02-AA provides 1000BASE-SX multimode fiber interfaces for X-Pedition chassis. It supports Layer3 routing, ACL, QoS, multicast and policy-based traffic forwarding. It monitors port status, optical signal parameters, module temperature and power consumption and reports to the chassis management engine. Used for inter-switch and inter-router gigabit fiber uplink for legacy core networks.

InstallationHot-swappable replacement. Insert SSR-GSX21-02-AA into empty module slot of X-Pedition 8000/8600 chassis. Tighten captive screws. Connect multimode fiber patch cords to SC ports. Verify module recognition and port status on EOS before putting into production.

Interface2×SC 1000BASE-SX fiber ports,module status LEDs,ejector latches for Extreme Networks SSR-GSX21-02-AA.

FeatureOriginal Extreme Networks X-Pedition series hot-swappable 2-port 1G SX fiber line card, multimode SC interface, high flow table capacity, real-time port health monitoring,EOS operating system,built-in self-diagnostic function. This spare supports legacy campus core and aggregation layer fiber interconnection deployment.

DiagnosticModule not detected: check blade seating,captive screws and backplane contact. Fiber port link down: verify multimode fiber cable, clean SC connectors and port admin status. Over-temperature alarm: inspect chassis fan tray operation and airflow.

Product BriefSSR-GSX21-02-AA is Extreme Networks hot-swappable 2-port 1000BASE-SX gigabit fiber line card for X-Pedition 8000/8600 chassis routers,classic spare part for legacy enterprise core network fiber uplink overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
