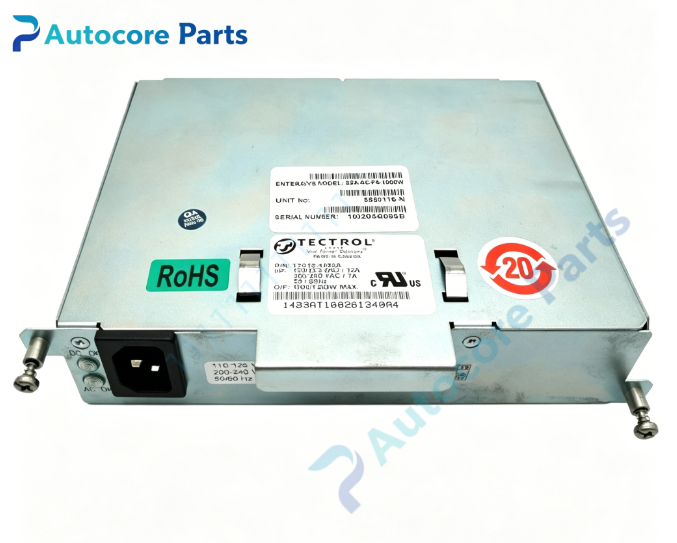

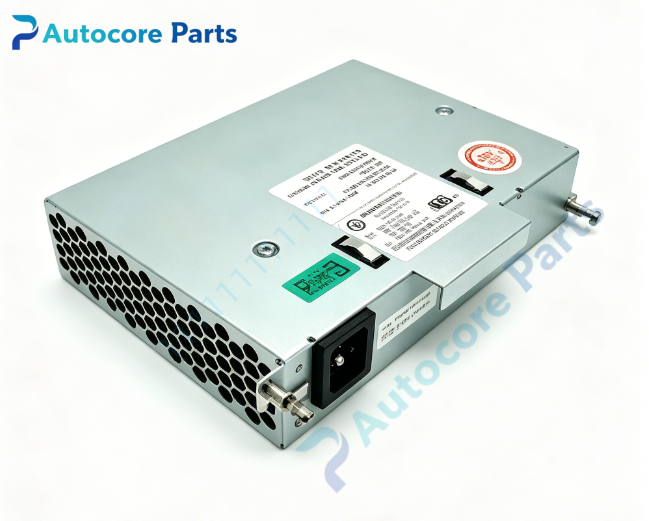

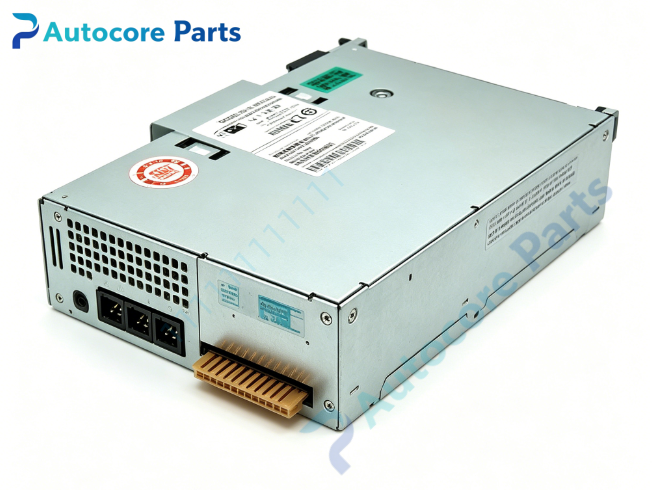

Extreme Networks SSA-AC-PS-1000 AC Power Supply Module

Technical SpecificationsModel：SSA-AC-PS-1000 Brand：Extreme Networks Product Type: Hot-swappable AC power supply module for SSA S-series modular switch chassis

Input Voltage: 110-240V AC universal input Max Output Power: 1000 Watts Current Rating: 15A max Cooling: Built-in internal fan, airflow matched for SSA chassis Protection: Over voltage, over current, over temperature, short circuit protection Status Indicator: LED indicators for power good, fault and active status Installation: Hot-swappable, plug into S-series PSU bay Operating temperature：0℃ ~ +40℃ Weight: Approx 2.1 kg

System compatibility

SSA-AC-PS-1000 belongs to Extreme SSA S-series power family. Compatible with SSA S130, SSA S150 and S1 chassis switches. Multiple PSU modules can be installed for redundant load-sharing power configuration. Used to supply power for mainboard, line cards and PoE load of S-series chassis.

Function

SSA-AC-PS-1000 is 1000W AC hot-swappable power supply for Extreme SSA S-series chassis switch. It provides stable DC power output for chassis control board, I/O line cards and PoE ports. Hot-swap design allows module replacement without powering down the whole chassis, minimizing service interruption. Built-in multiple protection circuits prevent hardware damage caused by short circuit, overheat and overvoltage. Multiple PSUs can work in load-sharing redundant mode to eliminate single power point of failure. Widely used for enterprise campus core and data center S-series chassis power backup and hardware replacement.

InstallationFollow ESD protection procedure. Insert power supply module into empty PSU bay of SSA chassis and lock the latch. Connect AC mains power cord to module inlet. Verify power good LED light up, check chassis power status via switch CLI. Test redundant power failover after installation.

InterfaceAC power inlet,status LED indicators,built-in fan,chassis backplane connector,release latch for Extreme Networks SSA-AC-PS-1000.

FeatureOriginal Extreme Networks SSA-AC-PS-1000 S-series AC power module,1000W output,universal 110-240V AC input,hot-swappable,support load sharing redundancy,multi-protection circuit design. This spare PSU is used for SSA S-series chassis power system maintenance and redundant power expansion.

DiagnosticModule no power: Check AC input voltage and power cord connection, re-seat the power module. Fault LED alarm: Inspect short circuit, over-temperature or over-current event, check chassis ventilation. Redundancy failover abnormal: Verify all PSU modules have same model and correct firmware detection. Fan failure: Replace PSU module if internal fan stops running.

Product BriefSSA-AC-PS-1000 is Extreme SSA S-series 1000W hot-swappable AC power supply module,classic spare for S130/S150 modular chassis redundant power system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
