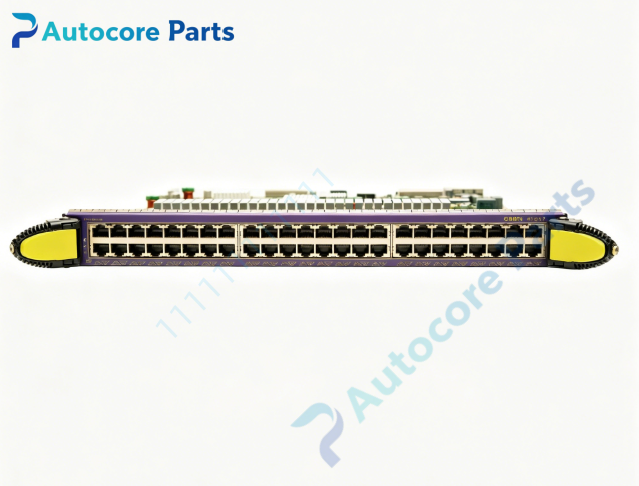

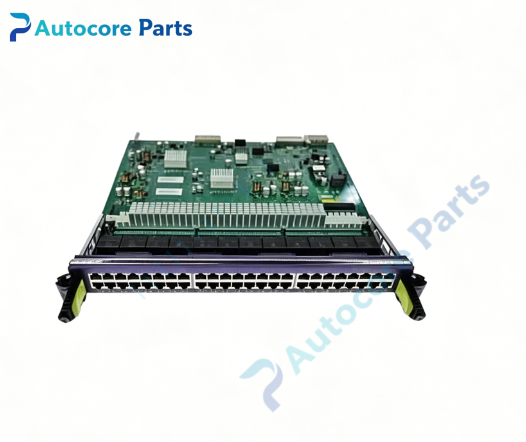

Extreme Networks G48TC-41517 Gigabit Line Card

Technical SpecificationsModel：G48TC-41517 Brand：Extreme Networks (Enterasys legacy) Product Type：Hot-swappable chassis line card for BlackDiamond 8800

Ports:

• 48 ×10/100/1000BASE-T auto-sensing RJ45 copper ports

• Front panel status LED indicators for each port

• Backplane connector for BD8800 chassis fabric

Switching capacity per module：96Gbps Forwarding rate：72Mpps MAC address table：64000 entries Jumbo frame：9216 bytes OS：ExtremeXOS / Enterasys firmware Hot swap：Support hot insertion and removal without chassis power off

Power & fan：Module powered by BD8800 chassis backplane,chassis shared fan cooling Operating temperature：0℃ ~ +40℃ Storage temperature：-40℃ ~ +70℃ Relative humidity：10%~90%, non-condensing Weight：1.45kg

System compatibility

G48TC-41517 belongs to legacy Enterasys BlackDiamond 8800 core chassis platform under Extreme Networks. Only compatible with BlackDiamond 8800 series switch chassis. Managed via chassis main control module CLI / web GUI. Widely used for enterprise campus core, data center access chassis port expansion spare replacement.

Function

G48TC-41517 is hot-swappable gigabit copper line card for BD8800 chassis. It provides 48 gigabit RJ45 access ports to expand wired access capacity for the core chassis. It supports static & dynamic routing, VLAN, STP/RSTP/MSTP, LACP link aggregation, ACL, QoS and multicast protocols. The module monitors port link status, onboard temperature and backplane communication state, and reports fault alarms to chassis management engine. Used for enterprise core chassis gigabit access port expansion.

Installation

Wear ESD anti-static wrist strap. Unpack the line card, remove blank filler panel from target BD8800 slot. Insert module smoothly into slot and tighten captive screws. The chassis will automatically detect and initialize the line card. Connect RJ45 network cables. Verify module recognition and port status via chassis CLI before commissioning.

Interface48×1G RJ45 copper ports,port status LEDs,backplane gold finger connector,locking screws for Extreme Networks G48TC-41517.

FeatureOriginal BlackDiamond 8800 hot-swappable 48-port gigabit copper line card,10/100/1000 auto negotiation,support jumbo frame,full Layer3 function,hot swap maintenance,no chassis shutdown required,built-in port diagnostic monitoring. This spare expands high-density gigabit copper ports for BD8800 core chassis.

DiagnosticModule undetected: Check gold finger cleanliness,slot status and chassis firmware compatibility. Port link down: Inspect RJ45 cable quality,auto-negotiation configuration and peer device status. Port error packet alarm: Verify cable integrity and duplex mode setting. Over-temperature alarm: Check chassis fan group running status and cabinet ventilation,clean dust buildup. Backplane communication failure: Re-seat the line card and tighten front panel screws.

Product BriefG48TC-41517 is Extreme Networks BlackDiamond 8800 series hot-swappable 48×10/100/1000BASE-T gigabit copper line card,classic spare part for enterprise core chassis gigabit port expansion and overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
