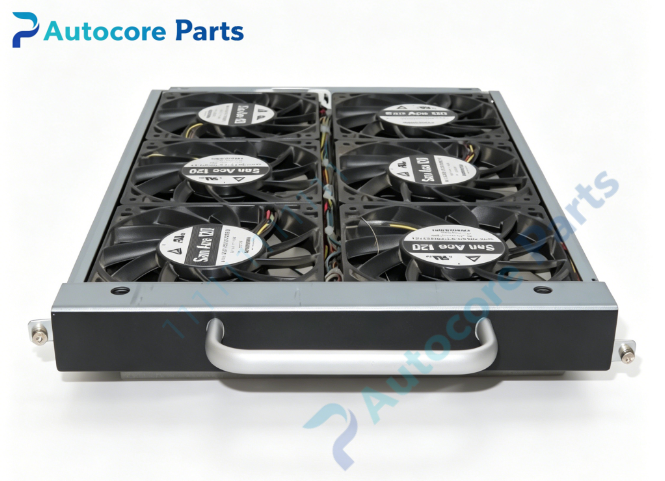

Extreme Networks FT05220-R07 Chassis Fan Tray Module

Technical Specifications

Model：FT05220-R07 Brand：Extreme Networks Product Type: Hot-swappable fan tray assembly for S-series modular switch chassis

Fan Assembly:

• Multiple built-in high-speed fans integrated in one tray

• Front-to-back airflow design

• Fan speed auto-adjust according to internal temperature

• Fan fault alarm signal output to chassis controller

Indicator & Interface:

• Status LED indicators: power, running, fault alarm

• Chassis backplane signal connector

• Metal pull handle for easy extraction

Mechanical & Environmental:

• Hot swap support, replaceable without powering down chassis

• Operating temperature：0℃ ~ +40℃

• Standard S-series chassis fan tray form factor

• Weight: Approx 1.9 kg

System compatibility

FT05220-R07 belongs to Extreme S-series chassis accessory family. It is dedicated cooling fan tray for Extreme S1, S3, S4, S6, S8 modular core switch chassis. Multiple fan trays can be deployed in chassis for redundant cooling. Widely used for data center core network and enterprise campus core switch spare replacement.

Function

FT05220-R07 is hot-swappable fan tray manufactured by Extreme Networks. It provides forced air cooling for S-series modular chassis, dissipates heat generated by mainboard, power supplies and line cards during high load operation. Auto fan speed regulation balances noise and cooling efficiency. When any single fan fails, the chassis will trigger fault alarm. Hot swap design allows online maintenance without shutting down the whole core network device. Widely deployed for data center and enterprise core network spare replacement.

Installation

Follow ESD protection procedure. Hold the metal handle, insert FT05220-R07 fan tray into empty fan slot of S-series chassis, push fully and lock the latch. Check LED status after installation. Verify fan status and temperature information on EOS management console.

Interface

Backplane signal connector,status LED indicators,metal extraction handle,multiple cooling fans for Extreme Networks FT05220-R07.

Feature

Original Extreme Networks FT05220-R07 S-series chassis fan tray,hot swappable,temperature adaptive fan speed,fault alarm output,redundant cooling support. This spare unit is used for modular core switch thermal system maintenance and hardware replacement.

Diagnostic

Fan tray not detected: Check tray fully seated and backplane connector contact. Fan fault alarm: Identify failed fan inside tray, inspect fan blockage or damage. Over-temperature warning: Verify fan tray running status and rack ventilation condition. Abnormal fan noise: Check foreign object blocking fan blades or bearing wear.

Product BriefFT05220-R07 is Extreme Networks hot-swappable fan tray assembly for S-series modular core switch chassis, auto temperature speed control and fault alarm,classic spare for datacenter core network cooling system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
