Extreme Networks ERS 4950GTS-PWR Gigabit PoE+ Routing Switch

Technical SpecificationsModel：4950GTS-PWR Brand：Extreme Networks (Avaya legacy ERS series) Product Type：1U rack mount Layer3 managed PoE+ gigabit switch

Front Ports:

• 48 × 10/100/1000BASE-T PoE+ RJ45 ports (IEEE802.3af/at)

• 2 × SFP+ uplink ports,support 1G /10G transceiver Console: RJ45 serial console port Management: 10/100BASE-T out-of-band management port

Switch Fabric: 104 Gbps Forwarding Rate: 77.4 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 32K MAC entries QoS: 8 hardware priority queues per port PoE Budget: 1025W total PoE power budget Power Module: Dual hot-swappable AC power supply slots,support load sharing and redundancy Software OS: ERS 4900 firmware, support static routing, RIP, OSPF Operating temperature：0℃ ~ +40℃ Mounting: Standard 19-inch 1U rack mount Weight: 8.0 kg Status LED: System, PoE, power supply, port link/activity indicators

System compatibility

4950GTS-PWR belongs to ERS4900 series. It can stack with ERS4926GTS /4950GTS series switches. Compatible with Extreme/Avaya certified SFP / SFP+ optical modules and DAC cables. Supports full Layer 3 routing, OSPF, RIP, VRRP, multicast protocols. Designed for enterprise campus, branch office large-scale wireless AP and IP camera access deployment.

Function

4950GTS-PWR is high power PoE+ gigabit routing switch for enterprise access layer. 48 PoE+ ports supply power and data to wireless access points, IP surveillance cameras and VoIP phones. Two SFP+ slots provide 1G or 10G high-speed fiber uplink to aggregation core switch. Dual hot-swappable power supplies realize power redundancy, avoid single power failure interruption. It supports VLAN, MSTP, 802.1X port security, LLDP, ACL and traffic QoS scheduling. Widely used for campus wireless coverage, multi-building IP video monitoring and large branch office wired network.

Installation

Mount the switch on standard 19-inch rack. Install one or two AC power supplies. Connect power cord. Use console cable for initial configuration. Insert SFP/SFP+ transceiver and fiber/DAC cable for uplink. Configure stacking group, PoE power allocation, VLAN and routing policies. Verify port link, PoE output and power supply status after power on.

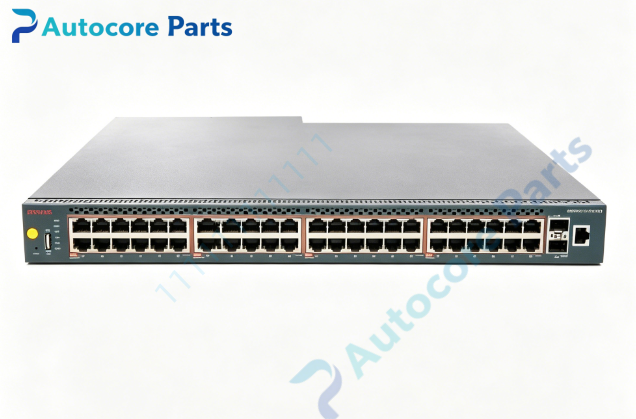

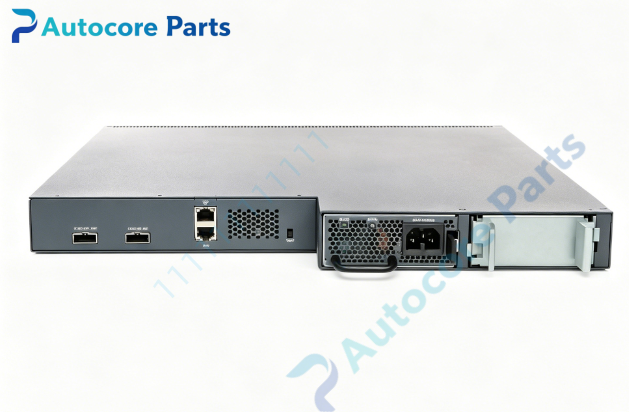

Interface48 PoE+ RJ45 gigabit ports,2 SFP+ 10G uplink slots,serial console port,out-of-band management port,dual PSU bays and system LED indicators for Extreme Networks 4950GTS-PWR.

FeatureOriginal Extreme Networks 4950GTS-PWR PoE+ routing switch,48×PoE+ RJ45 ports,2×SFP+ 10G uplink,1025W PoE budget,hot-swappable redundant power supply,L3 dynamic routing,stackable design,802.1X authentication and hardware ACL. This spare is used for enterprise campus high-density wireless access and surveillance network upgrade & replacement.

DiagnosticSwitch no power: Check AC power cord, power supply insertion and input voltage. PoE port no power: Check total PoE budget remaining, enable PoE function and test copper cable. SFP+ uplink down: Verify optical module compatibility, fiber cleanliness and optical power value. Power supply alarm: Check PSU status, load balance and ventilation inside rack. Stack link failure: Confirm same firmware version for all stack members and stacking cable integrity. Port flapping: Inspect RJ45 cable quality, auto-negotiation and peer device configuration.

Product Brief4950GTS-PWR is Extreme ERS4900 48-port PoE+ Layer3 gigabit switch with dual 10G SFP+ uplink,classic high-power PoE spare for enterprise campus wireless access network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
