Extreme Networks EC8404001-E6 8424XS Ethernet Switch Module

Technical SpecificationsModel：EC8404001-E6 Brand：Extreme Networks Product Type: Hot-swappable I/O interface module for VSP 8404 modular chassis switch

Front Ports:

• 24 × SFP+ slots, support 1GBASE-X /10GBASE-X transceivers, DAC and AOC cables

• Per-port link/activity LED indicators, module health status LED

Max Jumbo Frame: 9216 bytes Forwarding: Hardware wire-speed Layer2 switching and Layer3 routing Supported Protocol Suite: IPv4, IPv6, BGP, OSPF, EVPN, VXLAN, LACP, 802.1Q VLAN QoS: 8 hardware priority queues per port Software OS: VOSS (Virtual Operating System) Power Consumption: 110W typical Operating temperature：0℃ ~ +40℃ Installation: Hot-swappable, plug into VSP8404 chassis ESM slot Weight: Approx 2.2 kg

System compatibility

EC8404001-E6 is 8424XS interface module belonging to VSP8400 series. Compatible with VSP8404 / VSP8404C 4-slot chassis. Works alongside other VSP8400 series ESM modules, such as 8408QQ,8424GS. Compatible with Extreme certified SFP+ optical modules, direct attach copper and active optical cables.

Function

EC8404001-E6 is high-density 1/10G I/O card for VSP8404 modular switch chassis. It provides 24 SFP+ interfaces for connecting servers, storage or access switches. Hot-swappable design allows replacement without powering down the whole chassis, minimizing data center downtime. Supports EVPN-VXLAN overlay virtual network, full L2/L3 routing functions and hardware QoS for traffic scheduling. Widely used in medium data center leaf layer and enterprise core network port expansion.

InstallationPerform ESD protection. Insert module into empty ESM slot of VSP8404 chassis and tighten captive retaining screws. Install SFP+ transceivers or DAC/AOC cables. Verify module detection via VOSS CLI, configure VLAN, routing and EVPN policy. Check port negotiation status after installation.

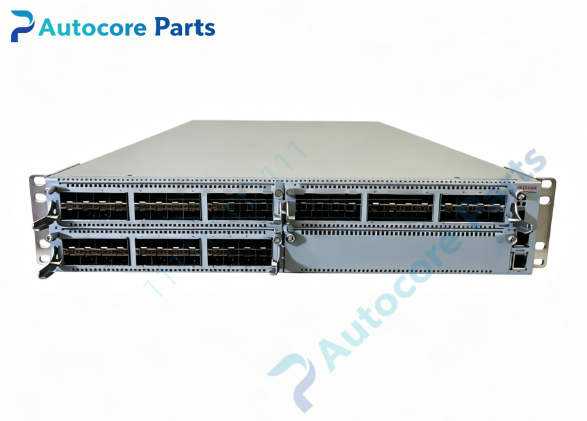

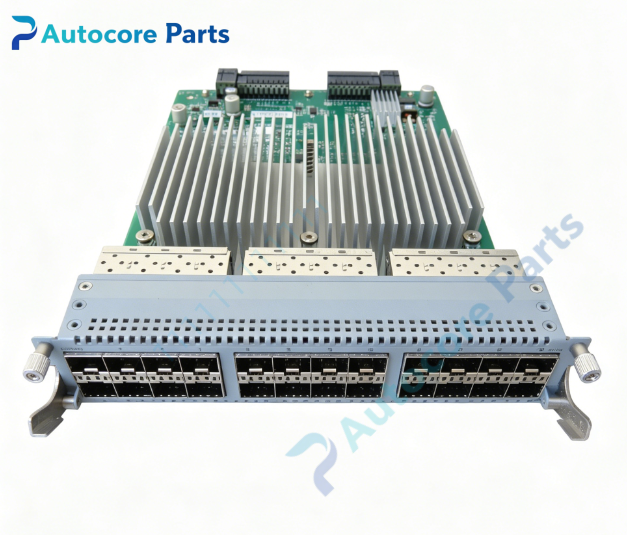

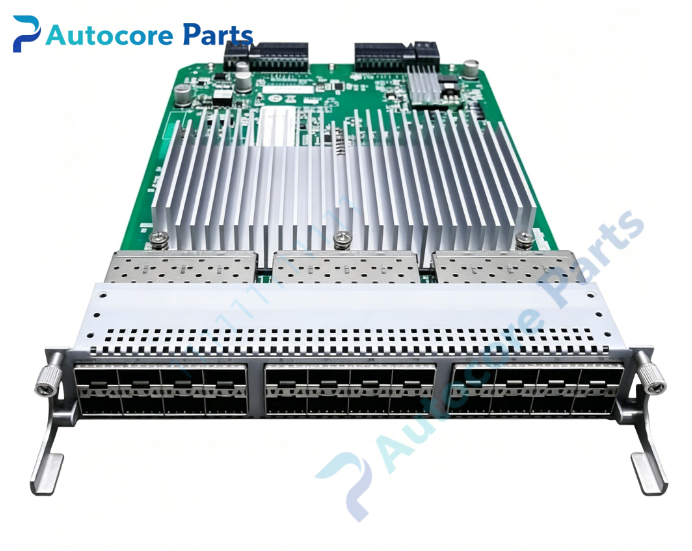

Interface24 × SFP+ cages, per-port LED indicators, module status LED, backplane connector, captive retaining screws for Extreme Networks EC8404001-E6.

FeatureOriginal Extreme Networks EC8404001-E6 8424XS I/O module,24×1G/10G SFP+ ports,hot-swappable hardware,wire-speed forwarding,VOSS OS,support EVPN-VXLAN virtual fabric. This spare module is used for VSP8404 chassis port expansion and hardware replacement.

DiagnosticModule undetected: Confirm module fully seated, tighten retaining screws, verify VOSS firmware compatibility. SFP+ port link down: Check transceiver compatibility, clean fiber connector, read DDM optical power readings. Packet loss: Tune port buffer and QoS queue configuration, inspect fiber attenuation. Overheat alarm: Check chassis fan tray operation and internal airflow.

Product BriefEC8404001-E6 is Extreme VSP8400 series 8424XS 24-port 10G SFP+ hot-swappable I/O module,classic spare for VSP8404 modular data center chassis.
