Extreme Networks EC4400E05-E6 VSP 4450GSX-PWR+ Ethernet Switch

Technical Specifications

Model：EC4400E05-E6 Brand：Extreme Networks Product Type: 1U rack mount Layer2/L3 enterprise aggregation PoE+ switch (VSP4000 series, AU power cord version)

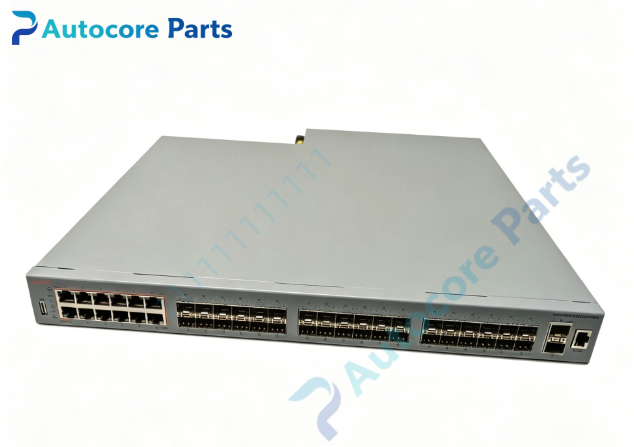

Front Ports:

• 12 × 10/100/1000BASE-T RJ45 ports, IEEE802.3at PoE+ max 30W per port

• 36 × 100/1000BASE-X SFP fiber slots for 1G optical transceivers

• 2 × 1/10G SFP+ high-speed uplink ports, MACsec hardware encryption supported

• RJ45 serial console port

• USB port for firmware upgrade

• LED indicators for port link, activity, power and fault alarm

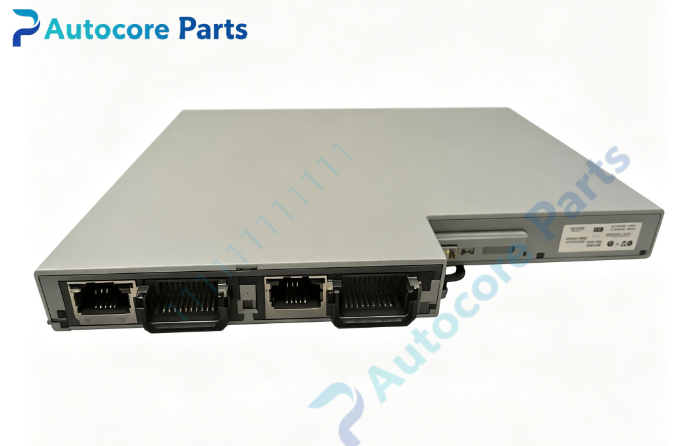

Rear Panel Interfaces:

• 1 × OOB 10/100/1000BASE-T out-of-band management port

• Single hot-swappable 1000W AC power supply (AU power cord included for EC4400E05-E6)

• Shared hot-swappable fan tray

• Equipment grounding terminal

Switching & Layer Features: Switch Fabric: 128 Gbps full duplex Forwarding Rate: 95 Mpps MAC Address Table: 128K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 / IPv6 static & dynamic routing Security: MACsec, 802.1X, ACL, storm control QoS: Hardware L2-L4 classification, 8 priority queues OS: VOSS operating system Virtualization: VRF, virtual switch instance support

Power & Mechanical: Power Input: 100-240V AC, 50/60Hz, 1000W PoE+ power budget Cooling: Shared hot swappable fan tray Operating temperature：0℃ ~ +40℃ Dimension: 442mm × 44mm × 420mm Weight: Approx 7.9 kg Mounting: Standard 19-inch 1U rack bracket

System compatibility

EC4400E05-E6 belongs to Extreme VSP4000 virtual services platform family. Compatible with 1G SFP and 10G SFP+ certified transceivers and DAC cables. Works with VOSS OS stacking and fabric technology. Designed for campus aggregation, building core and PoE access convergence network. Widely used for enterprise network upgrade and spare replacement.

Function

EC4400E05-E6 is VSP4450GSX-PWR+ high-density PoE+ aggregation switch manufactured by Extreme Networks. It provides 12 PoE+ ports for wireless AP, IP camera and IP phone, 36 SFP slots for long-distance fiber access and 2×10G SFP+ uplink ports to core switch. Hardware MACsec supports secure fiber uplink transmission. VOSS OS delivers advanced layer3 routing, VRF and fabric virtualization capability. Hot swappable fan and PSU support online maintenance. This SKU is equipped with Australian standard AC power cord. Widely deployed for large campus, smart building and industrial aggregation network spare replacement.

Installation

Follow ESD protection procedure. Mount switch into standard 19-inch rack. Install SFP/SFP+ transceivers or DAC cables. Connect AU AC power cord. Access console port for VOSS initial configuration, set VLAN, PoE allocation, routing and MACsec policy. Verify port link and PoE power status after power on.

Interface

12×PoE+ RJ45 ports,36×1G SFP slots,2×10G SFP+ uplink ports,USB port,serial console port,OOB management port,1000W AC PSU,hot-swap fan tray,status LED indicators for Extreme Networks EC4400E05-E6.

Feature

Original Extreme Networks EC4400E05-E6 VSP4450GSX-PWR+ aggregation switch,1U,12×PoE+ +36×SFP +2×10G SFP+,hardware MACsec,1000W PoE budget,AU power cord,VOSS OS,hot swappable fan and PSU. This spare unit is used for enterprise campus aggregation and PoE converged network maintenance and hardware replacement.

Diagnostic

Switch boot failure: Check AC power cord connection and power source. PoE port no power: Check PoE power budget and powered device compatibility. SFP/SFP+ port link down: Verify transceiver compatibility, optical power and fiber end face. MACsec negotiation fail: Match MACsec key and configuration on both link ends. Over-temperature alarm: Inspect fan tray operation and rack ventilation.

Product BriefEC4400E05-E6 is Extreme Networks VSP4450GSX-PWR+ 50-port 1U aggregation PoE+ switch with AU power cord, 12 PoE+ ports, 36 SFP, 2×10G SFP+ MACsec uplink and VOSS OS,classic spare for enterprise campus aggregation network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
