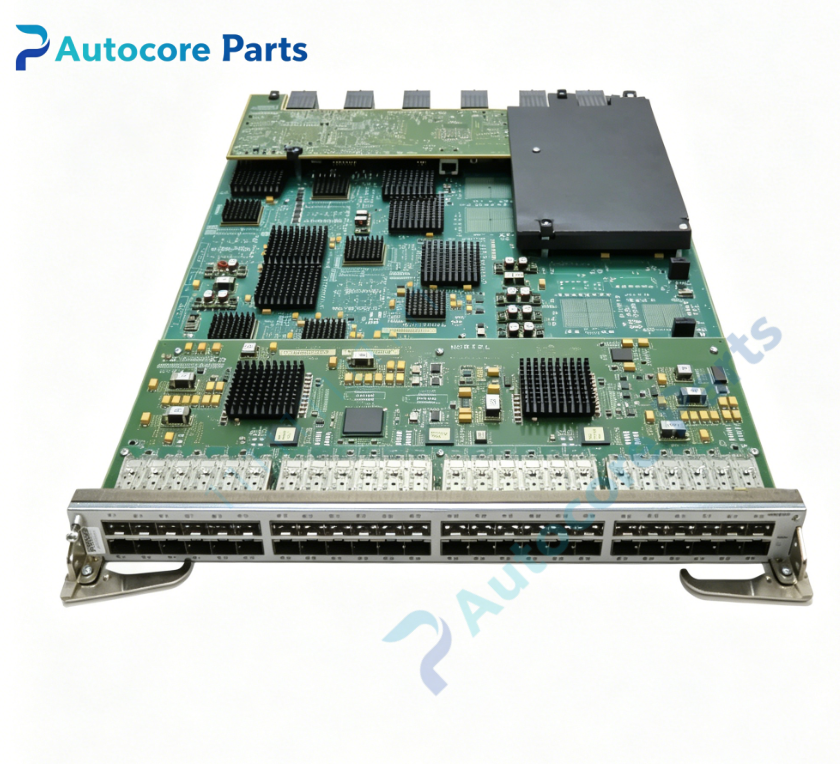

Extreme Networks EC1404002-E6 Gigabit SFP I/O Line Card

Technical SpecificationsModel:EC1404002-E6 Brand:Extreme Networks Product Type:Hot-swappable I/O line card / blade Compatible chassis:VSP 9000 modular chassis switch Ports:48 × SFP slots for 1000BASE-SFP optical transceivers Speed:Wire-speed 1G per port Switching architecture:Non-blocking Minimum OS:ExtremeXOS Max modules per chassis:Depends on VSP9000 chassis slot quantity Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:2.4 kg

System compatibilityEC1404002-E6 is Extreme Networks VSP9048GB gigabit fiber line card for VSP9000 series chassis. It works with VSP9000 management modules,fabric modules,power supplies and fan trays. Compatible with Extreme validated 1G SFP transceivers and fiber patch cords. Widely used for data center aggregation and enterprise fiber access spare replacement.

FunctionEC1404002-E6 provides wire-speed 1G SFP fiber interfaces for VSP9000 chassis. It supports L2 switching, L3 routing, ACL, QoS and multicast. It reports port status,transceiver DDM data,module temperature and power consumption to chassis management module. Used to replace faulty high-density gigabit fiber I/O blades for VSP9000 chassis overhaul.

InstallationHot-swappable replacement. Insert EC1404002-E6 into empty slot of VSP9000 chassis. Tighten captive screws. Insert SFP transceivers and fiber cables. Verify module online status and transceiver DDM readings on ExtremeXOS before putting into production.

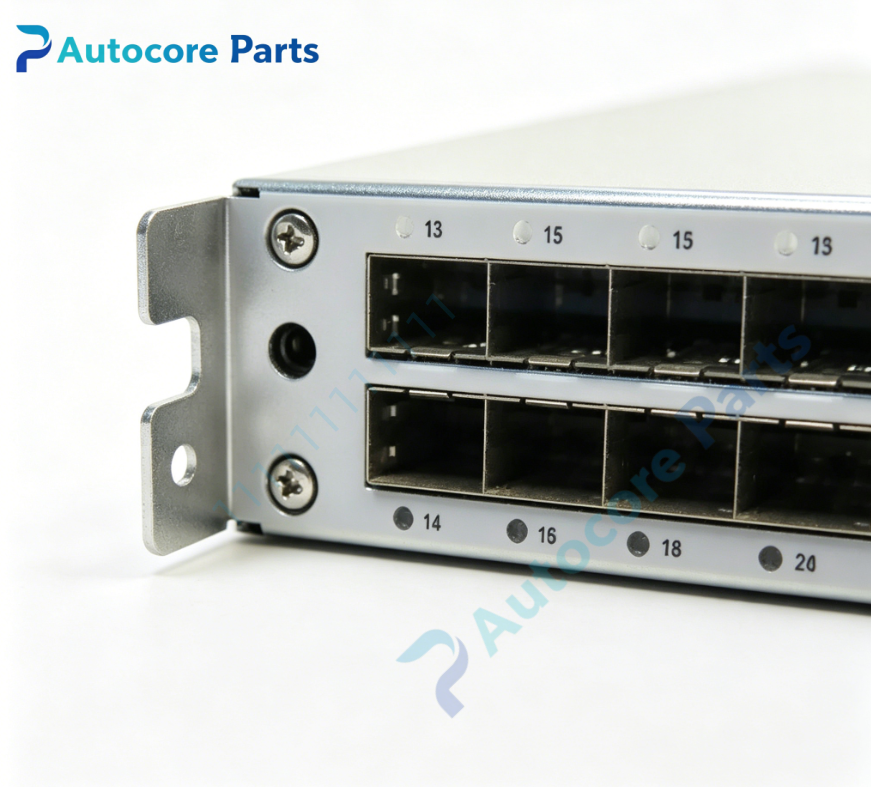

Interface48×SFP front panel slots,module status LEDs,ejector handles for Extreme Networks EC1404002-E6.

FeatureOriginal Extreme Networks VSP9000 series 48-port 1G SFP line card,hot-swappable,non-blocking wire-speed forwarding,transceiver DDM monitoring,ExtremeXOS OS,built-in self-diagnostic function. This spare supports high-density fiber access deployment for enterprise and data center aggregation networks.

DiagnosticModule not detected: check blade seating,captive screws and backplane contact. Port link down: verify SFP transceiver,fiber cable and port admin status. Transceiver no DDM data: confirm Extreme validated SFP transceiver. Over-temperature alarm: check chassis fan tray operation and airflow.

Product BriefEC1404002-E6 is Extreme Networks hot-swappable 48-port 1G SFP fiber line card for VSP9000 chassis,classic spare part for enterprise and data center high-density gigabit fiber aggregation overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
