Extreme Networks C5G124-24P2-G Gigabit PoE+ Stackable Switch

Technical SpecificationsModel:C5G124-24P2-G Brand:Extreme Networks Product Type:1U rackmount stackable Layer2/Layer3 PoE+ access switch Ports:24 × 10/100/1000BASE-T PoE+ RJ45 ports,4 × combo SFP uplink slots PoE standard:IEEE 802.3at PoE+, up to 30W per port Switching capacity:176 Gbps Forwarding rate:131 Mpps MAC address table:32000 entries VLAN:4094 VLAN IDs Redundancy:Supports external EPS-C2 redundant power supply Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:6.21 kg

System compatibilityC5G124-24P2-G belongs to Extreme Networks C5 stackable switch family. It can stack with other C5G124 and C5K175 series switches. Compatible with Extreme validated 1G SFP transceivers and fiber patch cords. Widely used for enterprise campus access, wireless AP and IP camera deployments.

FunctionC5G124-24P2-G is a high-performance L3 managed PoE+ access switch. It supports static routing, VLAN segmentation, STP/RSTP/MSTP, LACP, ACL, QoS, IPv4/IPv6 multicast and SNMP monitoring. It automatically detects powered devices, monitors PoE power budget, port link status, transceiver DOM data and chassis temperature. Used to build stacked resilient access networks.

InstallationMount the switch into 19-inch 1U rack. Connect AC power cord; external redundant power supply can be installed optionally. Insert SFP transceivers for fiber uplink. Connect Cat5e/Cat6 cables to PoE+ RJ45 access ports. Connect console port for initial configuration. Verify boot sequence, port link and PoE status before putting into production.

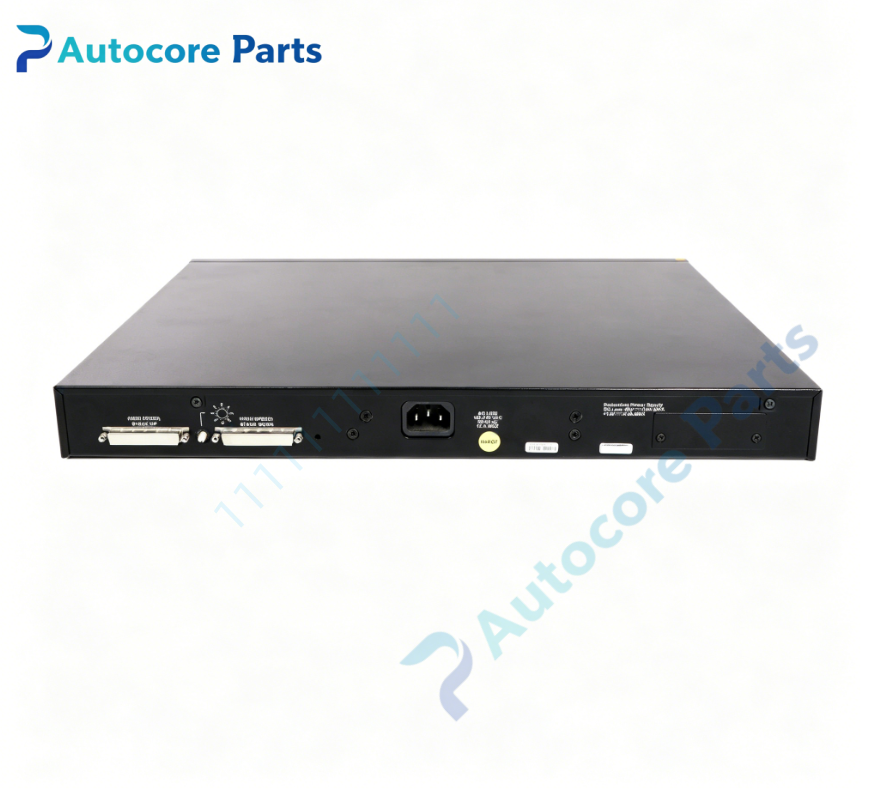

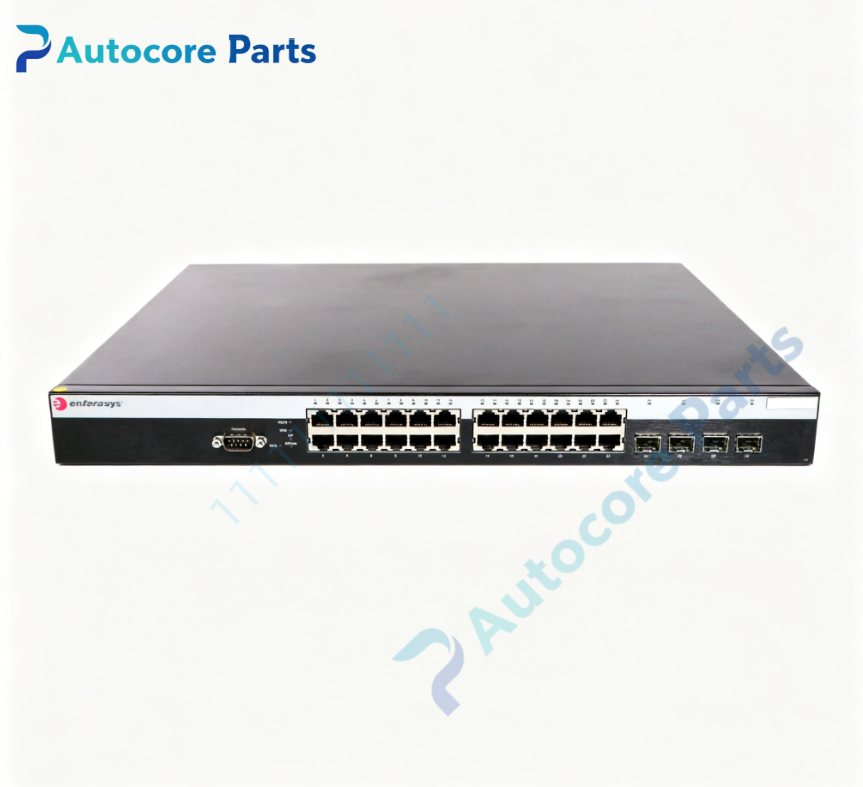

Interface24×PoE+ RJ45 ports,4×combo SFP uplink slots,serial console port,status LEDs,AC power inlet,RPS connector,rack mounting ears for Extreme Networks C5G124-24P2-G.

FeatureOriginal Extreme Networks C5 series 1U rackmount 24-port PoE+ gigabit stackable Layer3 switch, wire-speed forwarding, transceiver DOM monitoring, external redundant power support, built-in self-diagnostic function. This spare supports multi-service voice, wireless and video access deployment for enterprise campus wiring closets.

DiagnosticSwitch fails to boot: check AC power cord and wall power input. PoE port no power: verify PD detection, total PoE budget and port enable status. Port link down: check Cat5e/Cat6 cable, SFP transceiver and port admin status. Transceiver no DOM data: confirm Extreme validated SFP transceiver. Over-temperature alarm: inspect chassis ventilation and clear dust.

Product BriefC5G124-24P2-G is Extreme Networks 1U rackmount 24-port gigabit PoE+ stackable Layer3 managed switch with 4×combo SFP uplink slots, classic spare part for enterprise campus access network overhaul.
