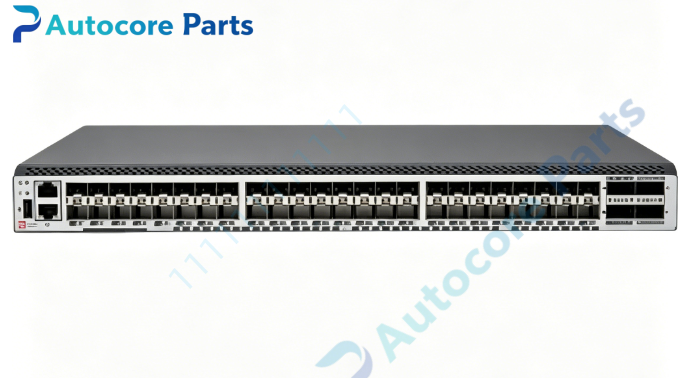

Extreme Networks BR-SLX-9540-48 SLX 9540 Router Switch

Technical SpecificationsModel：BR-SLX-9540-48 (SLX9540-48S) Brand：Extreme Networks (Former Brocade) Product Type: 1U rack-mount fixed form factor data center / service provider router switch

Front Ports:

• 48 × SFP+ slots, support 1GBASE-X /10GBASE-X transceivers

• 6 × QSFP28 slots, support 40G /100GBASE-X modules

• RJ45 management port, USB port, RJ45 console port

• Individual port LED indicators, system health LED

Switching Capacity: 800 Gbps Forwarding Rate: 720 Mpps Packet Buffer: 6GB ultra-deep tunable buffer Max Jumbo Frame: 9216 bytes Routing Protocol: IPv4, IPv6, BGP, OSPF, ISIS, MPLS, EVPN-VXLAN QoS: 8 hardware priority queues per port Power Supply: 1+1 hot-swappable redundant AC/DC PSU Cooling: 4+1 redundant hot-swappable fan modules Software OS: SLX-OS Operating temperature：0℃ ~ +40℃ Weight: Approx 7.3 kg Mounting: Standard 19-inch 1U rack bracket

System compatibility

BR-SLX-9540-48 belongs to Extreme SLX9540 family. Compatible with Extreme certified SFP+,QSFP28 optical transceivers, DAC and AOC cables. Can be deployed as leaf, border router, IXP and colocation interconnection device. Works with SLX series network fabric.

Function

BR-SLX-9540-48 is high-performance 1U switch router for data center and carrier network. It provides 48 10G downlink ports for server or access switch connection, six QSFP28 uplink ports for 40G/100G fabric interconnection. Large deep packet buffer handles burst traffic to reduce packet loss. Supports EVPN-VXLAN, MPLS and full suite of routing protocols for modern data center fabric and WAN edge. Redundant power and fans ensure high availability for 24/7 operation. Widely used for colocation, internet exchange, data center leaf/spine and service provider border routing.

InstallationMount the unit into standard 19-inch equipment rack. Install redundant power supplies and connect power cables. Insert SFP+ / QSFP28 transceivers and fiber/DAC cables. Access console port for initial SLX-OS configuration, configure VLAN, routing, EVPN and QoS policy. Verify port status and routing session via CLI.

Interface48 × SFP+ cages,6 × QSFP28 cages,management RJ45,console port,USB port,status LED,PSU and fan slots for Extreme Networks BR-SLX-9540-48.

FeatureOriginal Extreme Networks BR-SLX-9540-48 SLX9540 switch router,48×10G SFP+ +6×100G QSFP28,800Gbps switching capacity,6GB deep buffer,redundant PSU & fans,SLX-OS EVPN/VXLAN and MPLS support. This spare unit is used for data center fabric,IXP and service provider border network deployment and replacement.

DiagnosticDevice boot failure: Check PSU input power, re-seat power module and fan tray. SFP+/QSFP28 link down: Verify transceiver compatibility, clean fiber end, check DDM optical power readings. High packet loss: Tune buffer allocation and QoS queue scheduling, inspect fiber attenuation. Routing session down: Confirm peer IP reachability, match routing protocol parameters. Overheat alarm: Check fan operation and cabinet airflow.

Product BriefBR-SLX-9540-48 is Extreme SLX9540 1U carrier-grade 48×10G +6×100G switch router with deep buffer,classic spare for data center leaf and internet exchange border network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
