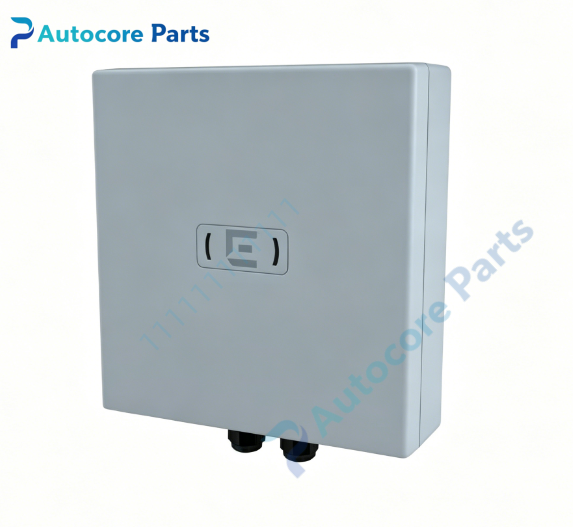

Extreme Networks AP560I-FCC AP560i Wi-Fi 6 Indoor / Outdoor Access Point

Technical SpecificationsModel：AP560I-FCC Brand：Extreme Networks Product Type: IP67 rugged high-density Wi-Fi6 wireless access point, omnidirectional internal antenna design

Radio & WLAN Standard:

• Radio 1: Dual band 2.4GHz /5GHz,4×4 MIMO

• Radio 2: 5GHz dedicated radio,4×4 MIMO

• IoT Radio: 2.4GHz BLE beacon radio for asset positioning Antenna: 8 built-in omnidirectional Wi-Fi antennas +1 integrated BLE antenna Ethernet Ports:

• GE1: 100M/1G/2.5G/5GBASE-T multi-gig RJ45 uplink,PoE input

• GE2: 10/100/1000BASE-T Gigabit RJ45 PoE: IEEE802.3at PoE+ (25W) Enclosure: IP67 weatherproof housing, suitable for indoor or sheltered outdoor deployment (stadium under-seat) Operating temperature：-40℃ ~ +55℃ Storage temperature：-40℃ ~ +70℃ Weight: Approx 4.5 kg Mounting: Pole / wall / under-seat mounting bracket available Management: ExtremeCloud IQ, WiNG controller Security: WPA3,802.1X,WIPS wireless intrusion prevention,802.11r fast roaming Regulatory: FCC US radio domain

System compatibility

AP560I-FCC belongs to Extreme AP560 series, works alongside AP560h directional model. Managed by ExtremeCloud IQ cloud platform or on-prem WiNG controllers. Compatible with 802.3at PoE multi-gig switches. Supports seamless roaming with AP5xx series access points.

Function

AP560I-FCC is stadium-grade Wi-Fi6 access point with omnidirectional built-in antennas, commonly deployed under stadium seats. Tri-radio architecture supports three working modes: traditional 2.4G+5G, sensor scanning mode, or dual-5GHz high-density mode to maximize concurrent user capacity. IP67 casing withstands dust and moisture in harsh venue environments. BLE radio delivers beacon signals for asset tracking and location analytics. 5G multi-gig uplink port provides sufficient bandwidth for massive client traffic in crowded venues. Widely used for stadium, arena, exhibition hall high-capacity Wi-Fi coverage.

InstallationApply ESD protection. Install mounting hardware for under-seat, wall or pole installation. Perform proper lightning grounding for outdoor sheltered locations. Connect CAT6A cable to GE1 port and supply 802.3at PoE+ power. Adopt AP into ExtremeCloud IQ / WiNG controller, configure SSID, RF channel and security profile. Verify wireless client association and coverage after power-up.

Interface5G multi-gig GE1 port, GE2 gigabit port, reset button, dual status LED indicators, ground terminal for Extreme Networks AP560I-FCC.

FeatureOriginal Extreme Networks AP560I-FCC Wi-Fi6 access point,4x4:4 tri-radio,omni internal antenna,IP67 rating,5G multi-gig uplink,WPA3 security,FCC certification,optimized for stadium under-seat high-density deployment. This spare AP is used for large venue wireless coverage upgrade and replacement.

DiagnosticAP undetected: Verify 802.3at PoE power, cable quality and controller network reachability. Low throughput: Enable dual 5GHz radio mode, optimize RF channel planning and reduce co-channel interference. BLE beacon missing: Activate IoT radio in controller AP profile. Radio unstable: Check enclosure seal and ambient temperature, match firmware version with controller. Link flapping: Inspect RJ45 connector, cable integrity and PoE switch port status.

Product BriefAP560I-FCC is Extreme AP560 series IP67 Wi-Fi6 omnidirectional access point for stadium under-seat deployment,classic spare for high-density venue wireless coverage.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
