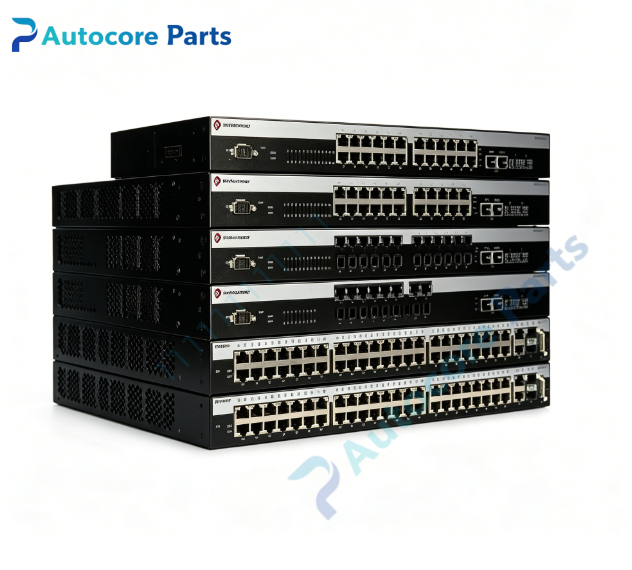

Extreme Networks A4H124-48P Fast Ethernet PoE Stackable Managed Switch

Technical SpecificationsModel:A4H124-48P Brand:Extreme Networks Product Type:1U rackmount stackable Layer2/Layer3 PoE access switch Ports:48 × 10/100BASE-TX PoE RJ45 ports,2 × 1000BASE-X SFP combo slots,2 × 10/100/1000BASE-T gigabit shared stacking/uplink ports PoE standard:IEEE 802.3af Switching capacity:17.6 Gbps Forwarding rate:13.1 Mpps MAC address table:16000 entries VLAN:4094 VLAN IDs Redundancy:Supports external RPS redundant power supply OS:EOS (Enterasys Operating System) Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:5.1 kg

System compatibilityA4H124-48P belongs to Extreme Networks SecureStack A4 family, formerly Enterasys. Compatible with Extreme validated 1G SFP transceivers SX/LX. Up to 8 A4-series switches can be stacked into one logical switch via dedicated gigabit stacking ports. Widely used for legacy enterprise campus PoE access spare replacement for IP phones, wireless APs and IP cameras.

FunctionA4H124-48P is a stackable multi-layer fast ethernet PoE managed switch. It supplies 802.3af power to PoE endpoints. It supports static routing, VLAN segmentation, STP/RSTP, LACP link aggregation, QoS, IGMP snooping, port mirroring, 802.1X and SNMP monitoring. The dual gigabit shared ports can be assigned for uplink or stacking. It monitors port link status, PoE power consumption, module temperature and power supply health, and sends hardware fault alarms. Used for wiring closet PoE access in medium and large enterprise campuses.

InstallationMount the switch on standard 19-inch 1U rack. Connect AC power cord; external RPS redundant power supply is optional. Install SFP transceivers and fiber cables if fiber uplink is required. Connect Cat5 cables to 10/100 PoE RJ45 ports. Connect DB9 serial console port for EOS configuration. Verify boot sequence, port link and PoE function before putting into production.

Interface48×10/100BASE-TX PoE RJ45 ports,2×SFP combo slots,2×1G RJ45 stacking/uplink ports,DB9 serial console port,status LEDs,AC power inlet,RPS connector,rack mounting ears for Extreme Networks A4H124-48P.

FeatureOriginal Extreme Networks SecureStack A4 1U rackmount 48-port fast ethernet stackable PoE switch, shared gigabit uplink/stacking, IEEE802.3af PoE power management, multi-layer policy control, external redundant power support,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise campus wiring closet PoE access deployment.

DiagnosticSwitch fails to boot: check AC power input and power supply connection. PoE port no power: verify PD detection, PoE budget and port admin status. Copper port link down: check Cat5 cable quality and port configuration. SFP module not detected: confirm SFP compatibility and insertion. Stacking failure: verify matching firmware among stacked A4 switches. Over-temperature alarm: inspect chassis ventilation and dust buildup.

Product BriefA4H124-48P is Extreme Networks SecureStack A4 1U rackmount 48-port 10/100BASE-TX stackable Layer3 PoE managed switch with dual gigabit combo uplink/stacking ports, classic spare part for legacy enterprise wiring closet PoE access overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
