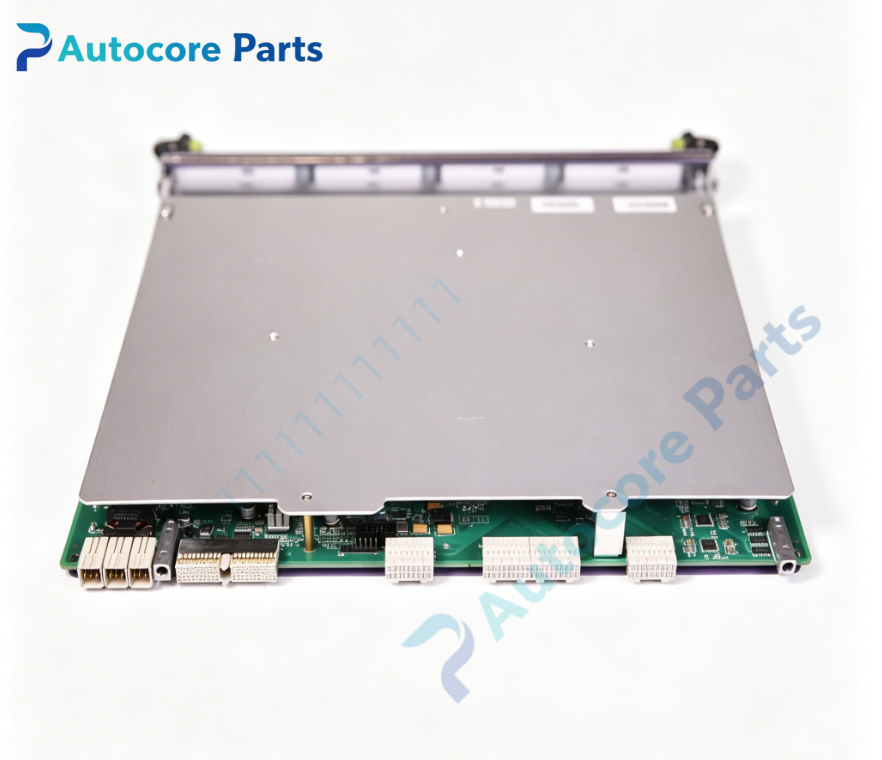

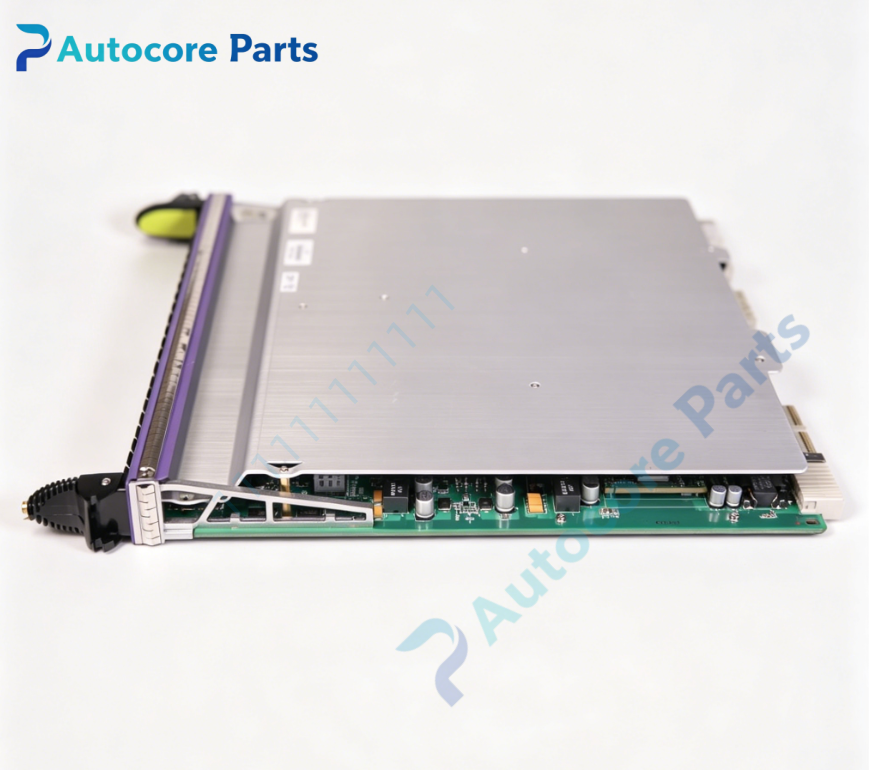

Extreme Networks 8900-10G24X-c 10G SFP+ I/O Line Card

Technical SpecificationsModel:8900-10G24X-c Brand: Extreme Networks Product Type: Hot-swappable Chassis I/O Line Card Compatible chassis: BlackDiamond 8900 Ports:24 × SFP+ slots for 10GBASE-SR/LR/ER transceivers Per-slot rate:10Gbps Power consumption:250W Heat dissipation:853 BTU Switching fabric: Works with 8900-MSM128 management module Supported OS: ExtremeXOS Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:2.3 kg

System compatibility8900-10G24X-c is a 10G high-density line card for Extreme BlackDiamond 8900 chassis core switch. It works with 8900-MSM128 control modules. Compatible with Extreme 10G SFP+ optical transceivers and AOC cables. Widely used for enterprise core and data center aggregation layer spare replacement.

Function8900-10G24X-c provides 24 independent 10G SFP+ ports for the BD8900 chassis. It handles L2 switching, L3 routing, ACL, QoS and traffic statistics for 10G interfaces. It reports port status, transceiver DDM data, module temperature and power consumption to MSM. Used to replace faulty high-density 10G line cards for core chassis overhaul.

InstallationPower off chassis before installation. Insert 8900-10G24X-c into the empty I/O slot of BlackDiamond 8900 chassis. Tighten the captive screws. Insert SFP+ transceivers or AOC cables. Power on chassis, verify module online status on ExtremeXOS. Check port and transceiver DDM readings before putting into production.

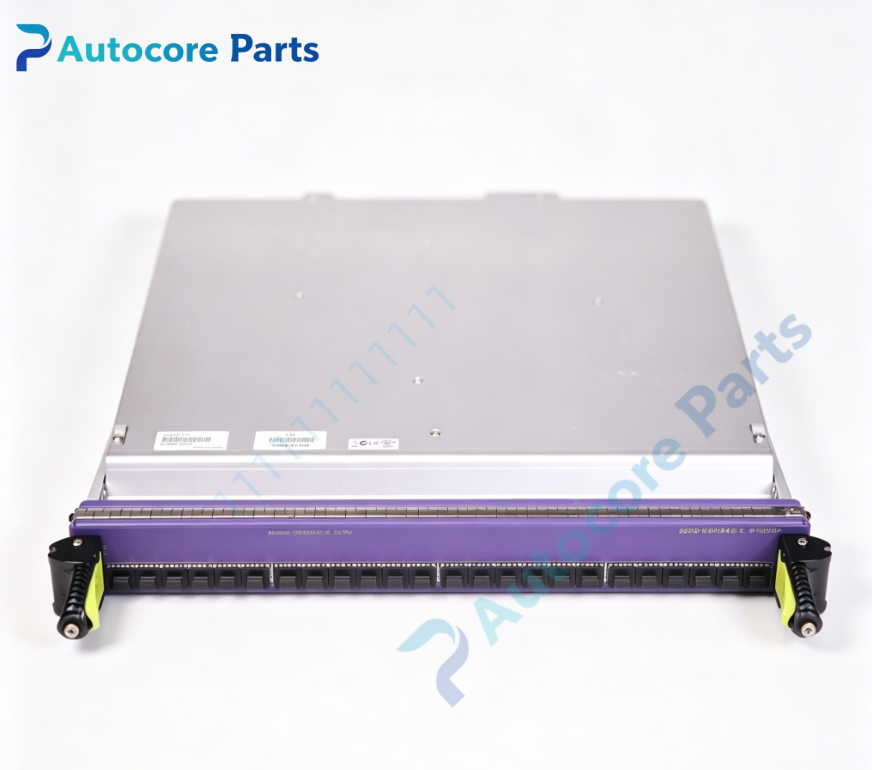

Interface24×SFP+ front panel slots, module status LEDs, ejector handles for Extreme Networks 8900-10G24X-c.

FeatureOriginal Extreme Networks BD8900 24-port 10G SFP+ line card, hot-swappable, supports DDM transceiver monitoring, full L2/L3 feature set, ExtremeXOS OS, built-in self-diagnostic function. This spare supports enterprise core and data center 10G aggregation deployment.

DiagnosticModule not detected: check slot seating, captive screws and chassis power. Port link down: verify SFP+ transceiver, fiber/AOC cable and port admin status. Transceiver no DDM data: confirm compatible Extreme-branded or validated transceiver. Over-temperature alarm: check chassis fan tray and airflow.

Product Brief8900-10G24X-c is Extreme Networks BlackDiamond 8900 chassis 24-port 10G SFP+ hot-swappable I/O line card, 250W power consumption, for core network and data center 10G aggregation, classic spare part for core chassis overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
