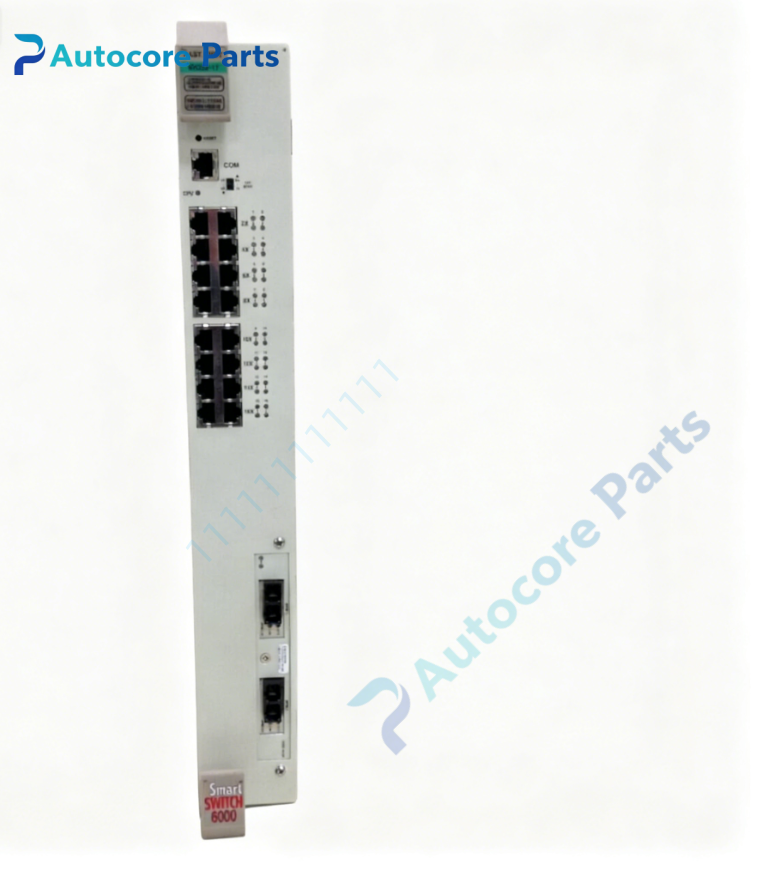

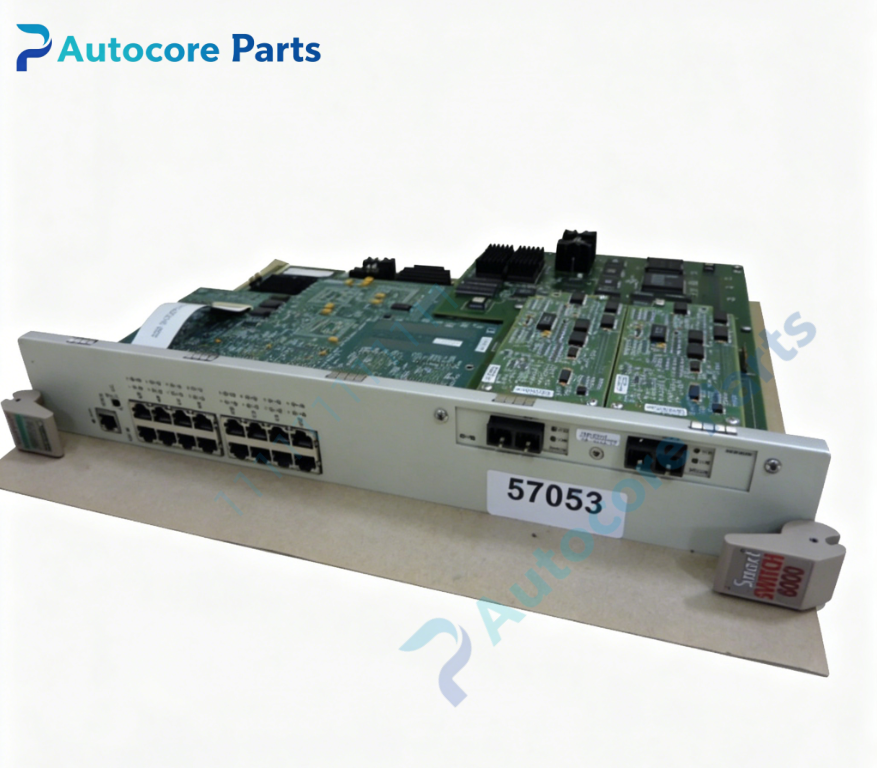

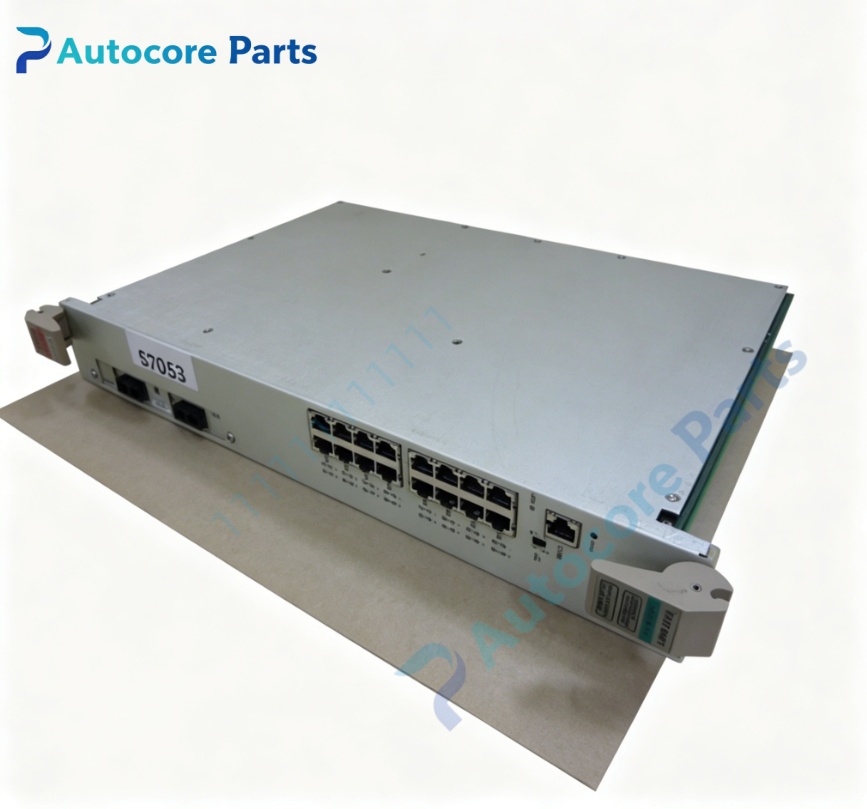

Extreme Networks 6H252-17 Fast Ethernet Fiber I/O Line Card

Technical SpecificationsModel:6H252-17 Brand:Extreme Networks Product Type:Hot-swappable I/O line card / blade Compatible chassis:SmartSwitch 6000, Matrix E7 modular chassis switch Ports:12 × SC 100BASE-FX multimode fiber ports Speed:100Mbps per port Architecture:Non-blocking OS:EOS (Enterasys Operating System) Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:1.2 kg

System compatibility6H252-17 belongs to Extreme Networks SmartSwitch 6000 / Matrix E7 chassis family, formerly Enterasys. It can be inserted into the empty slot of SmartSwitch 6000 and Matrix E7 chassis. It uses multimode fiber cables with SC connectors. Widely used for legacy enterprise building fast fiber access spare replacement.

Function6H252-17 provides 100BASE-FX multimode fiber interfaces for chassis switch. It supports Layer2 switching, VLAN, QoS, IGMP snooping and link aggregation. It monitors port link status, optical signal parameters, module temperature and power consumption, and uploads data to chassis management engine. Used for expanding multi-port fast fiber access ports for old campus chassis switches.

InstallationHot-swappable replacement. Insert 6H252-17 into empty slot of SmartSwitch 6000 / Matrix E7 chassis. Tighten captive screws. Connect multimode fiber patch cords to SC ports. Verify module online status and port link status on EOS before putting into production.

Interface12×SC 100BASE-FX fiber ports,module status LEDs,ejector latches for Extreme Networks 6H252-17.

FeatureOriginal Extreme Networks SmartSwitch 6000 series 12-port 100BASE-FX fiber line card,hot-swappable,multimode SC fiber interface,real-time port health monitoring,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise multimode fiber access network expansion.

DiagnosticModule not detected: check blade seating,captive screws and backplane contact. Fiber port link down: check multimode fiber and clean SC connectors,verify port admin status. Over-temperature alarm: inspect chassis fan tray operation and airflow.

Product Brief6H252-17 is Extreme Networks hot-swappable 12-port 100BASE-FX multimode fiber line card for SmartSwitch 6000 / Matrix E7 chassis,classic spare part for legacy enterprise fast ethernet fiber access overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
