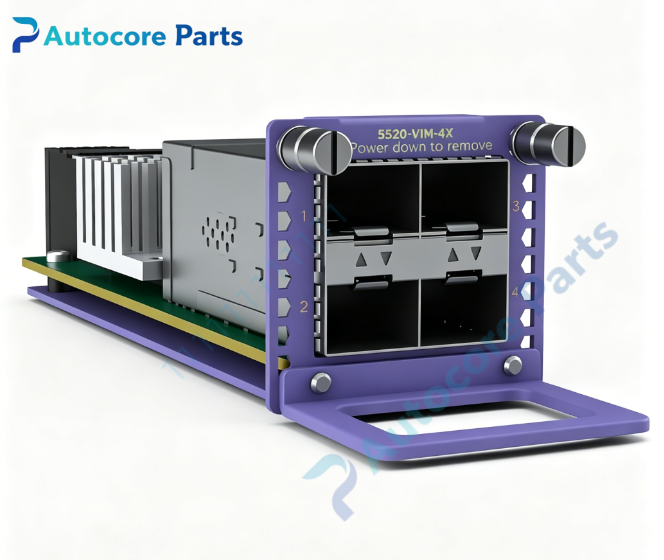

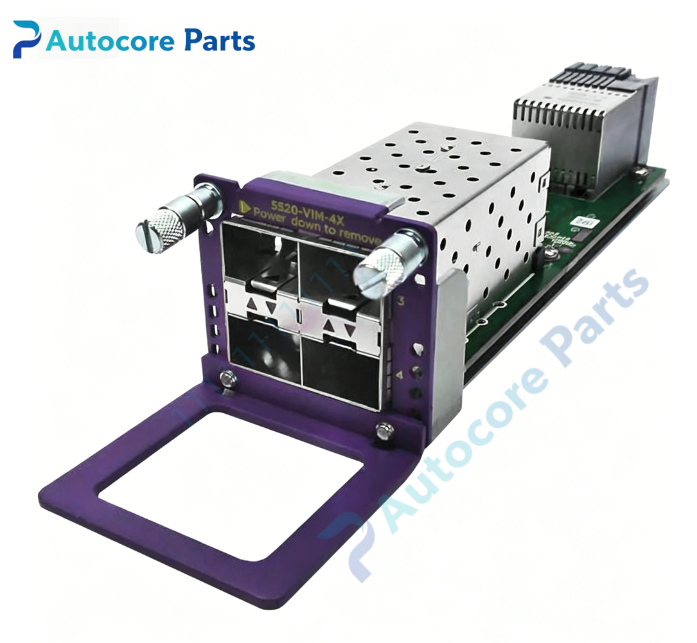

Extreme Networks 5520-VIM-4X Versatile Interface Module

Technical SpecificationsModel：5520-VIM-4X Brand：Extreme Networks Product Type：Hot-pluggable versatile interface module (VIM)

Ports:

• 4 ×1G/10GBASE-X auto-sensing SFP+ slots, transceiver sold separately Rate support：1Gbps,10Gbps MACsec：Not supported Compatibility：Only compatible with Extreme 5520 series switches

Physical Parameter Weight：0.20kg Dimension：40.8mm(H) ×48.8mm(W) ×146.3mm(D) Operating temperature：0℃ ~ +50℃ Storage temperature：-40℃ ~ +70℃ Relative humidity：10%~90%, non-condensing

System compatibility

5520-VIM-4X is dedicated VIM expansion module for ExtremeSwitching 5520 edge and aggregation switch platform. Compatible with Extreme validated 1G SFP and 10G SFP+ optical transceivers and DAC cables. Installed on front VIM slot of 5520 chassis for uplink port expansion. It works with Switch Engine / Fabric Engine OS. Widely used for enterprise campus aggregation network spare replacement.

Function

5520-VIM-4X provides four multi-rate SFP+ interfaces to expand high-speed uplink ports for 5520 series switches. It supports 1G or 10G fiber/copper uplink to core switches. The module monitors port DDM optical data, link status and module temperature, and generates fault alarms. It is applied to enterprise aggregation layer to extend 10G fiber uplink capacity.

Installation

Power off the 5520 host switch. Wear ESD anti-static wrist strap. Remove blank cover plate of VIM slot. Insert 5520-VIM-4X module fully and tighten fixing screws. Install SFP/SFP+ transceivers and cables. Power on chassis, verify module recognition and port status in ExtremeSwitching OS. Confirm uplink works normally before commissioning.

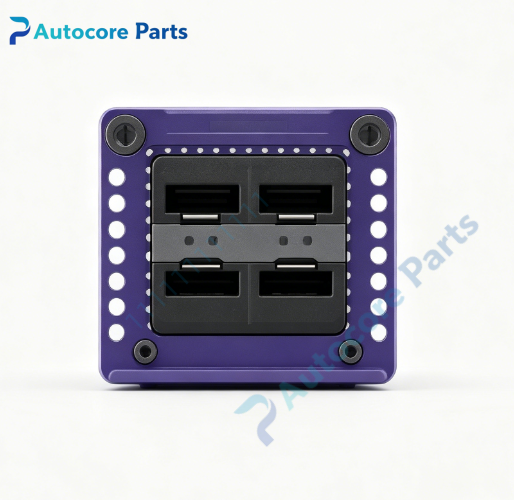

Interface4×SFP+ multi-rate slots,gold finger connector,port status LEDs,locking screws for Extreme Networks 5520-VIM-4X.

FeatureOriginal Extreme 5520 series hot-pluggable VIM expansion module,4×1G/10G SFP+ multi-rate ports,support fiber and DAC direct attach cable,compact size,built-in port diagnostic,easy maintenance. This spare expands 10G uplink interfaces for 5520 enterprise aggregation switches.

DiagnosticModule undetected: Check gold finger cleanliness,slot seating and firmware compatibility. Port link down: Verify SFP+ transceiver, cable quality and port configuration. Low optical power alarm: Dirty fiber endfaces or damaged fiber cables. Transceiver undetected: Confirm Extreme compatible optical module and correct insertion. Over-temperature alarm: Check cabinet ventilation and dust cleaning.

Product Brief5520-VIM-4X is Extreme Networks 5520 series front hot-pluggable versatile interface module with four 1G/10G SFP+ ports,classic spare for uplink port expansion on enterprise 5520 aggregation switches.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
