Extreme Networks 5320-24P-8XE Gigabit PoE+ Edge Switch

Technical SpecificationsModel:5320-24P-8XE Brand: Extreme Networks Product Type: Enterprise Stackable Gigabit PoE+ Access Switch Ports:

• 24 × 10/100/1000BASE-T RJ45, 802.3at PoE+ (30W per port), MACsec capable

• 8 × SFP+ 1/10G uplink ports, 2 ports support stacking, MACsec capable Management ports:

• 1 × RJ45 serial console port

• 1 × USB-A port for file storage

• 1 × USB Micro-B console port Operating system: Switch Engine / Fabric Engine (universal hardware) Management: ExtremeCloud IQ, Site Engine, Platform ONE Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Power: Built-in AC power supply Weight:3.2 kg

System compatibility5320-24P-8XE belongs to Extreme Networks 5320 universal edge switch series. It can be stacked with other 5320 series switches. Compatible with Extreme wireless controllers and PoE powered APs such as WS-AP3825i. Supports cloud and local on-premises management. Widely deployed for campus, office and wiring closet access layer, available as network spare replacement.

Function5320-24P-8XE is enterprise access layer PoE+ switch. It provides gigabit wired access and PoE power supply for IP phones, wireless APs and IP cameras. It supports L2 switching, static routing, ACL, QoS, MACsec link encryption and high-speed stacking. It monitors port status, PoE power consumption, temperature and power supply. It triggers alarms for port down, PoE overload and over-temperature. Used to replace faulty access switches for enterprise wiring closet overhaul.

InstallationPower off before installation. Mount the switch on 19-inch rack. Connect AC power cord. Connect RJ45 cables to PoE endpoints. Insert SFP+ transceivers into uplink/stacking ports if needed. Connect console cable for initial configuration. Verify boot, PoE status and port online status before putting into production.

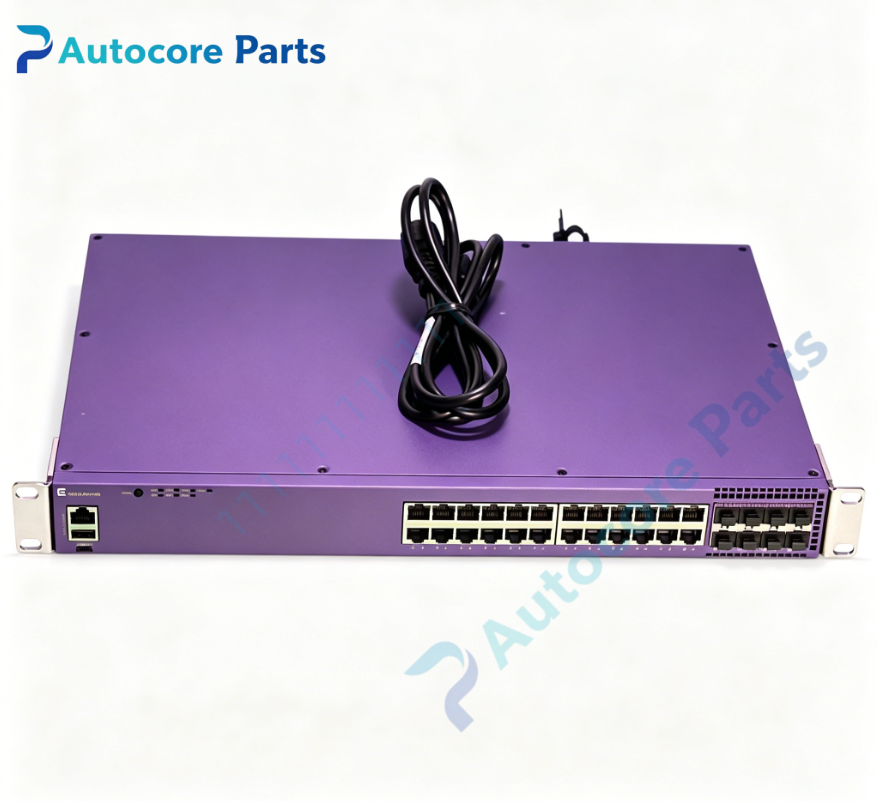

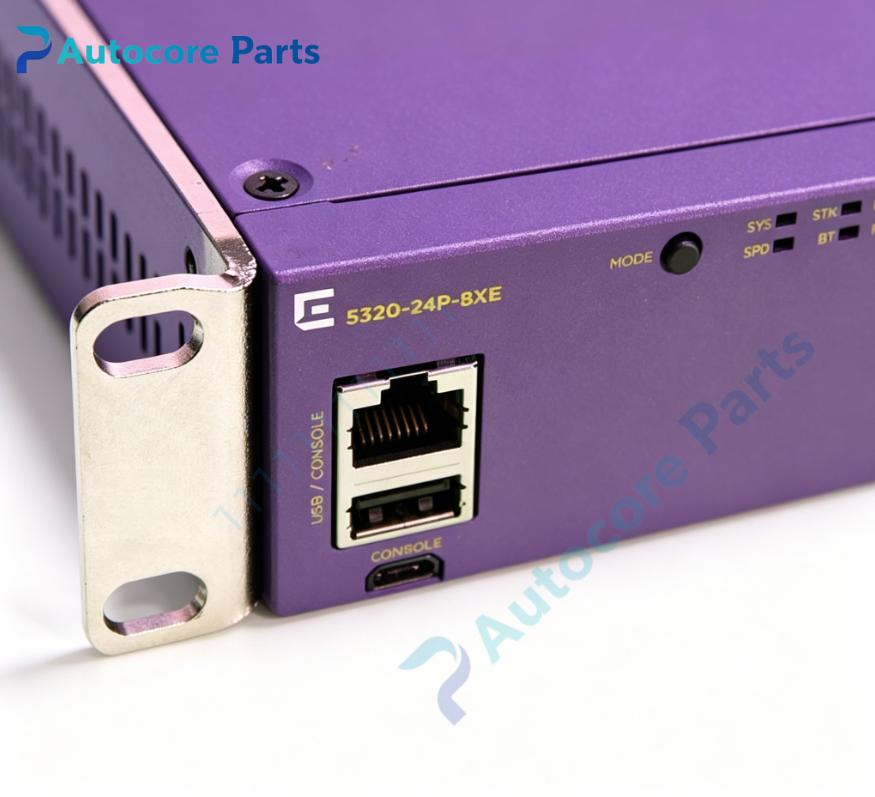

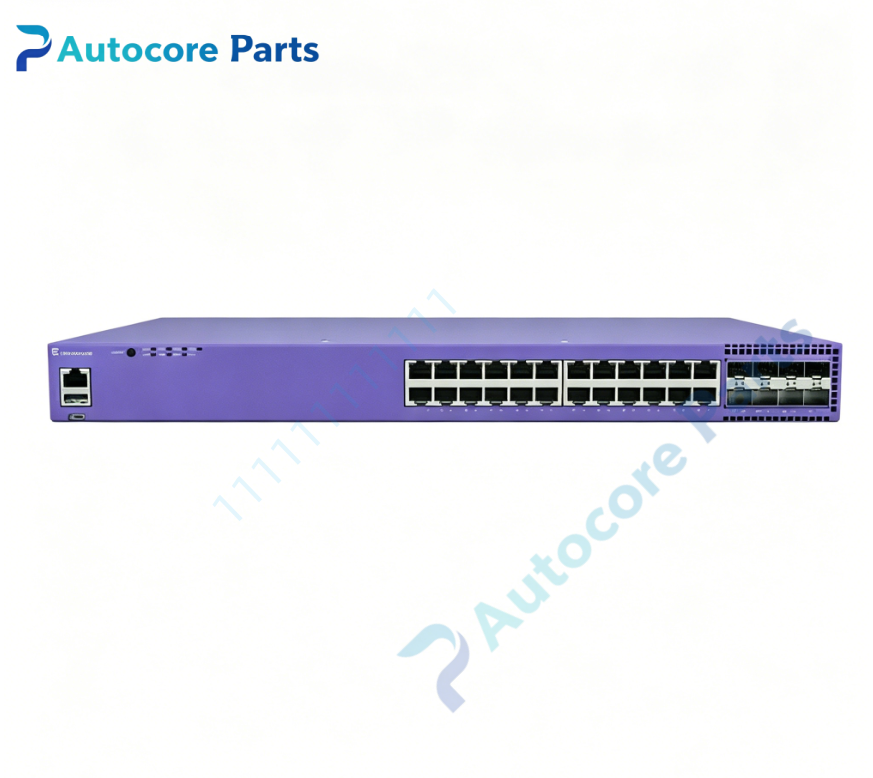

Interface24×PoE+ RJ45 ports, 8×SFP+ slots, RJ45 console, USB-A, USB Micro-B, status LEDs, rack mounting ears for Extreme Networks 5320-24P-8XE.

FeatureOriginal Extreme Networks 5320 series PoE+ switch, universal hardware supporting two operating systems, 30W PoE+, 10G SFP+ uplink, stacking capability, MACsec security encryption, cloud management, built-in self-diagnostic function. This spare serves enterprise access layer deployment.

DiagnosticSwitch fails to boot: check AC power supply and power cord. No PoE output: verify PoE budget and port PoE enable configuration. Port link down: check cable, transceiver and port admin status. Stacking failure: confirm stacking cables, firmware version match and stacking configuration.

Product Brief5320-24P-8XE is Extreme Networks 24-port gigabit PoE+ stackable access switch with 8×1/10G SFP+ uplink ports, supporting MACsec encryption and cloud management, classic spare part for enterprise wiring closet network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
