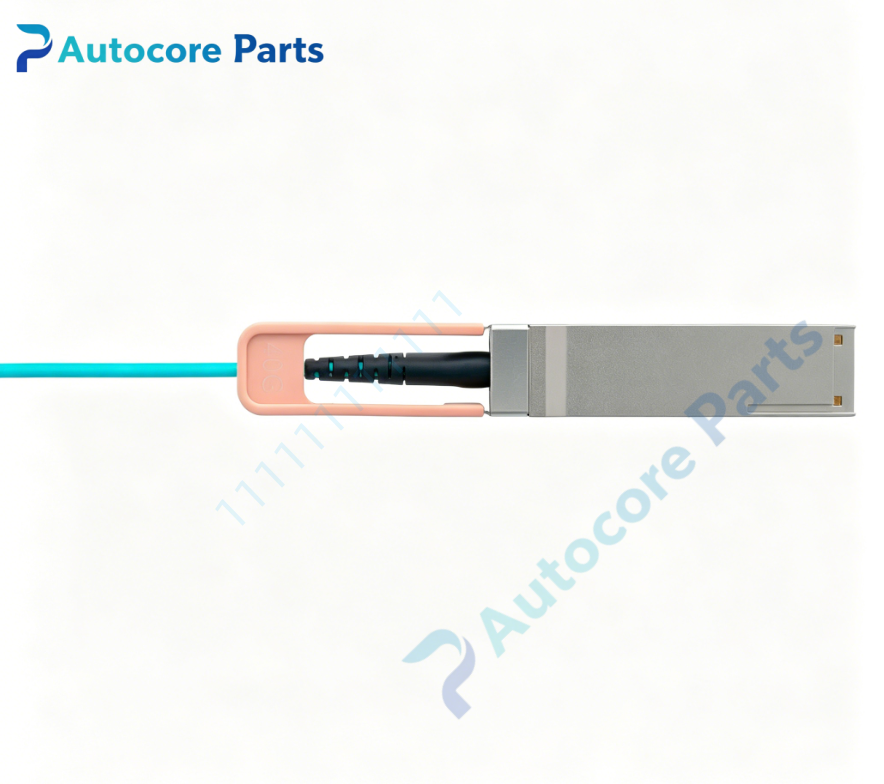

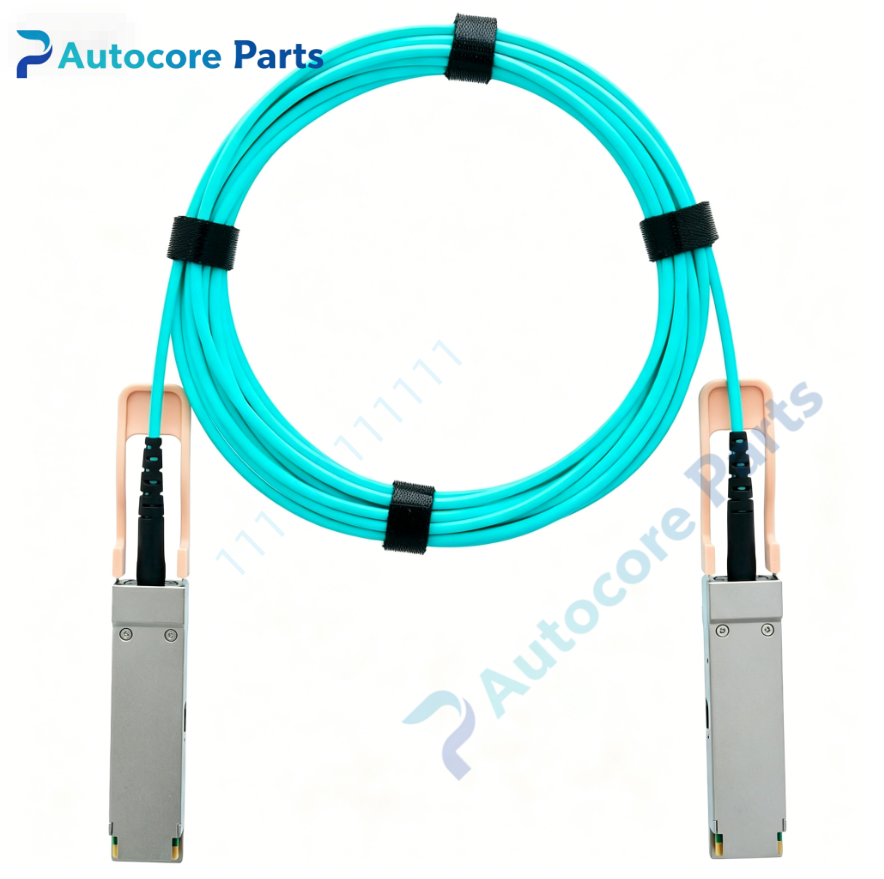

Extreme Networks 40GB-F10-QSFP 40G QSFP+ Active Optical Cable

Technical SpecificationsModel: 40GB-F10-QSFP Brand: Extreme Networks Product Type: QSFP+ to QSFP+ 40G Active Optical Cable (AOC) Mounting: Plug into QSFP+ port of Extreme rack switch Operating temperature: 0℃ ~ +70℃ Storage temperature: -40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Standard:40GBASE-SR4 Wavelength:850nm Fiber type: OM3 / OM4 multimode fiber Length:10 meters Interface: QSFP+ at both ends Digital monitoring: DDM / DOM Weight:0.17 kg

System compatibility40GB-F10-QSFP is Extreme Networks 40G QSFP+ active optical cable. Compatible with Extreme Summit X620, X650, X670, VSP7400, VSP8400 switches with QSFP+ slots. Widely used for rack-to-rack 40G short-distance interconnection inside data center, used for network spare replacement.

Function40GB-F10-QSFP integrates parallel optical transceivers and multimode fiber inside one cable assembly. It converts 4×10G electrical lanes into parallel optical signals for 40G transmission. It supports DDM to monitor transmit optical power, receive power, module temperature and supply voltage. It triggers alarm for optical signal loss, over-temperature and module fault. Used to replace faulty 40G AOC cables in data center fabric network.

InstallationPower off before installation. Insert both QSFP+ ends into the QSFP+ slots of two switches. Lock the latches. Verify module recognition on ExtremeXOS/VOSS, check optical power and port link status before putting into production.

InterfaceDual QSFP+ edge connectors, internal multimode fiber assembly, DDM digital diagnostic interface for Extreme Networks 40GB-F10-QSFP active optical cable.

FeatureOriginal Extreme Networks 40G QSFP+ active optical cable, hot-swappable, 10m length, 4-lane parallel transmission, DDM real-time monitoring, low power consumption, compliant with IEEE 802.3ae standard. This spare supports short-distance 40G interconnection in data center.

DiagnosticModule undetected: check insertion, slot status and switch firmware compatibility. Port link down: verify cable insertion, fiber type, optical power and port administrative status. Link flapping: inspect cable bending, tension and cabinet cable routing.

Product Brief40GB-F10-QSFP is Extreme Networks 10-meter QSFP+ 40GBASE-SR4 active optical cable. It provides plug-and-play 40G parallel fiber interconnection between data center switches, classic spare part for data center 40G network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
