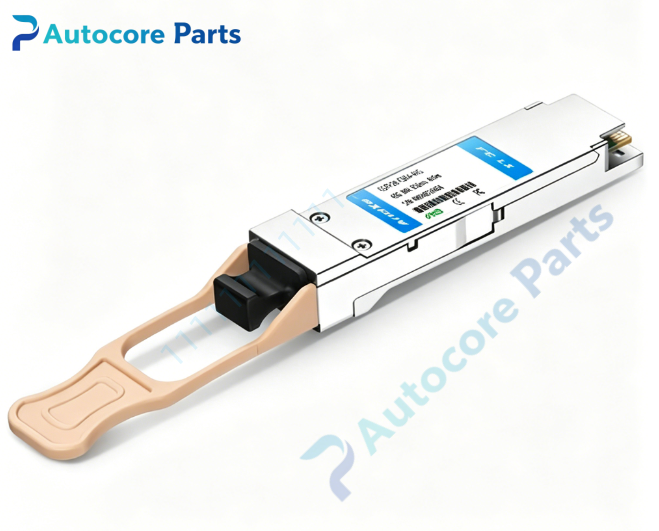

Extreme Networks 40GB-ESR4-QSFP 40G ESR4 QSFP+ Transceiver

Technical SpecificationsModel：40GB-ESR4-QSFP Brand：Extreme Networks Product Type: QSFP+ pluggable optical transceiver

Speed: 40Gbps total (4 lanes ×10.3125Gbps) Wavelength: 850nm VCSEL Fiber: Multi-mode fiber OM3 / OM4 Max Transmission Distance: 300m on OM3;400m on OM4 Connector: MPO (MTP) 12-fiber female Standard: IEEE802.3ba 40GBASE-SR4 compatible, SFF-8436 QSFP+ MSA DDM: Digital Diagnostic Monitoring supported Power Consumption: Typical <1.5W Operating temperature：0℃ ~ +70℃ Installation: Hot-pluggable Part alias: AA1404006-E6

System compatibility

40GB-ESR4-QSFP is Extreme certified QSFP+ optical transceiver. Compatible with Extreme switches with QSFP+ ports including X480,X670V,X590,X690,X870 series. It can run native 40G uplink or breakout mode for 4×10GBASE-SR. Works with MPO-12 parallel multi-mode fiber trunk cables. Verified for SummitStack-V high speed stacking and spine-leaf fabric interconnection.

Function

40GB-ESR4-QSFP is extended reach 40G parallel multi-mode optical module for data center. It uses 4-lane 850nm VCSEL array to transmit 40G signal over MPO multi-mode trunk fiber. In breakout mode, each lane can work independently as 10GBASE-SR to expand 10G port quantity. Widely used for rack-to-rack 40G uplink, leaf-spine interconnection and high-speed stacking in data center. Longer distance than standard SR4 QSFP+ module for medium reach multi-mode fiber links.

Installation

Insert the QSFP+ transceiver fully into switch QSFP+ port. Connect MPO trunk fiber cable to module MPO port. Verify module identification, optical power and link status via ExtremeXOS CLI. Configure port breakout function if 4×10G SR ports required. Keep proper fiber bending radius during cabling.

InterfaceQSFP+ metal housing, MPO female connector, DDM diagnostic circuit, pin contacts for Extreme Networks 40GB-ESR4-QSFP.

FeatureOriginal Extreme Networks 40GB-ESR4-QSFP optical transceiver,40G ESR4 extended range,850nm multi-mode,MPO connector,support native 40G or breakout to 4×10G SR,DDM monitoring,hot pluggable. This spare module is used for data center 40G uplink and switch stacking fiber interconnection.

DiagnosticModule not detected: Confirm fully seated transceiver, check port status and firmware compatibility. Link down: Inspect MPO fiber end face for dirt/scratches, read optical transmit/receive power via DDM. Breakout port failure: Verify MPO trunk cable polarity and port breakout configuration. High temperature alarm: Check ambient temperature and ventilation inside rack. Link flapping: Inspect fiber cable damage, excessive bending or dirty MPO connector.

Product Brief40GB-ESR4-QSFP is Extreme 40G ESR4 QSFP+ multi-mode optical transceiver with MPO interface,classic spare for medium-distance 40G fiber uplink and breakout 10G expansion in data center.
