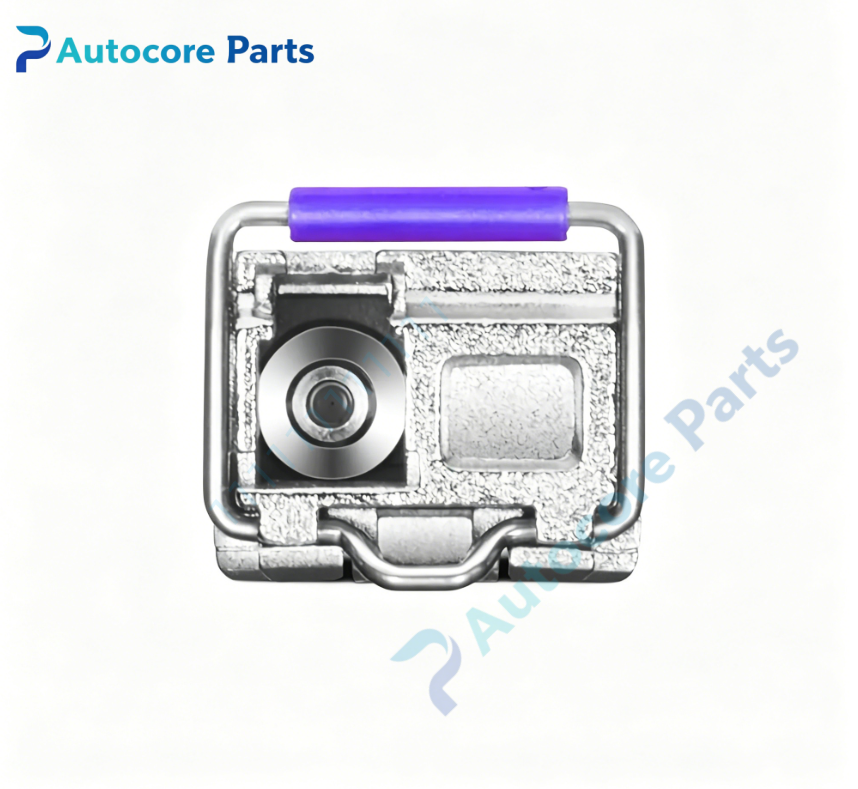

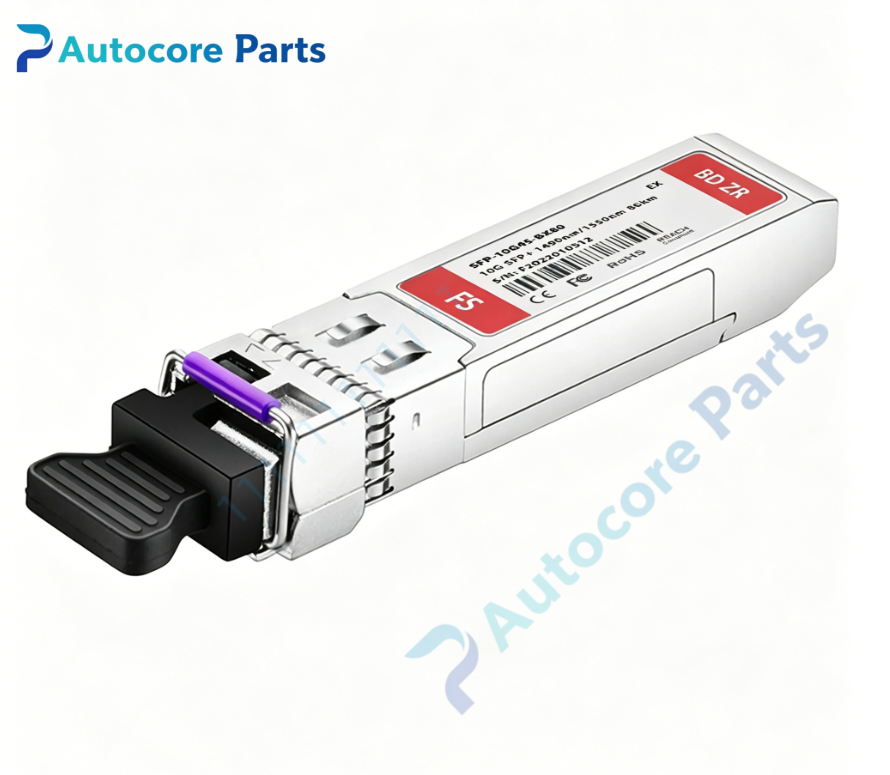

Extreme Networks 10GB-BX80-U SFP+ BiDi Optical Transceiver

Technical SpecificationsModel: 10GB-BX80-U Brand: Extreme Networks Product Type: Hot-swappable SFP+ 10G Bidirectional Optical Transceiver Mounting: Plug into SFP+ port of Extreme switch Operating temperature:0℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Standard:10GBASE-BX Wavelength: TX 1490nm / RX 1550nm Fiber type: OS2 single-mode fiber(SMF) Max distance:80 kilometers Connector: LC duplex Digital monitoring: DDM / DOM Weight:0.04 kg

System compatibility10GB-BX80-U is Extreme Networks SFP+ BiDi single fiber optical transceiver, must be paired with 10GB-BX80-D on the far end. Compatible with Extreme Summit X440-G2, X460-G2, X620, X670, VSP series switches with SFP+ slots. Widely used for long-distance campus, metropolitan and WAN fiber uplink, network maintenance and spare replacement.

Function10GB-BX80-U transmits and receives 10G signals over only one single-mode fiber. It uses wavelength division multiplexing, sending 1490nm optical signal and receiving 1550nm signal. It supports DDM to monitor transmit optical power, receive power, module temperature and supply voltage. It triggers alarm for optical signal loss, over-temperature or module hardware fault. It is used to replace faulty BiDi SFP+ modules for long-distance single-fiber 10G links.

InstallationPower off before installation. Insert SFP+ transceiver into the switch SFP+ slot. Connect LC duplex single-mode fiber cable to module port. Pair with 10GB-BX80-D at the opposite end. Verify module identification by switch OS, check optical power and link status before putting into production.

InterfaceSFP+ edge connector, LC duplex fiber port, DDM digital diagnostic interface for Extreme Networks 10GB-BX80-U optical transceiver.

FeatureOriginal Extreme Networks 10G BiDi SFP+ module, hot-swappable, single fiber transmission saving fiber resources, DDM real-time monitoring, low power consumption, compliant with IEEE 802.3ae standard. This spare supports long-distance WAN and metropolitan fiber network maintenance.

DiagnosticModule undetected: check insertion, slot status and switch firmware compatibility. Link down: verify transceiver pair(U/D matching), single-mode fiber, optical power and port administrative status. Low optical power alarm: check fiber end-face contamination, connector damage and excessive cable bending.

Product Brief10GB-BX80-U is Extreme Networks SFP+ 10G BiDi single-mode optical transceiver, 1490nm TX /1550nm RX, up to 80km over OS2 single fiber, must pair with 10GB-BX80-D, classic spare part for long-distance 10G fiber network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
