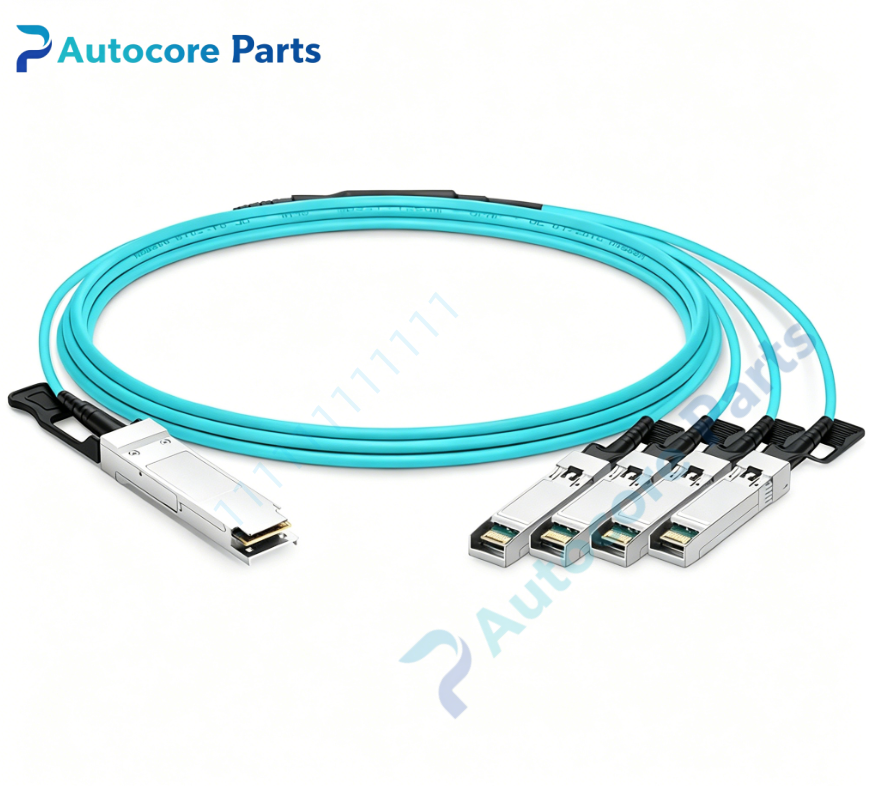

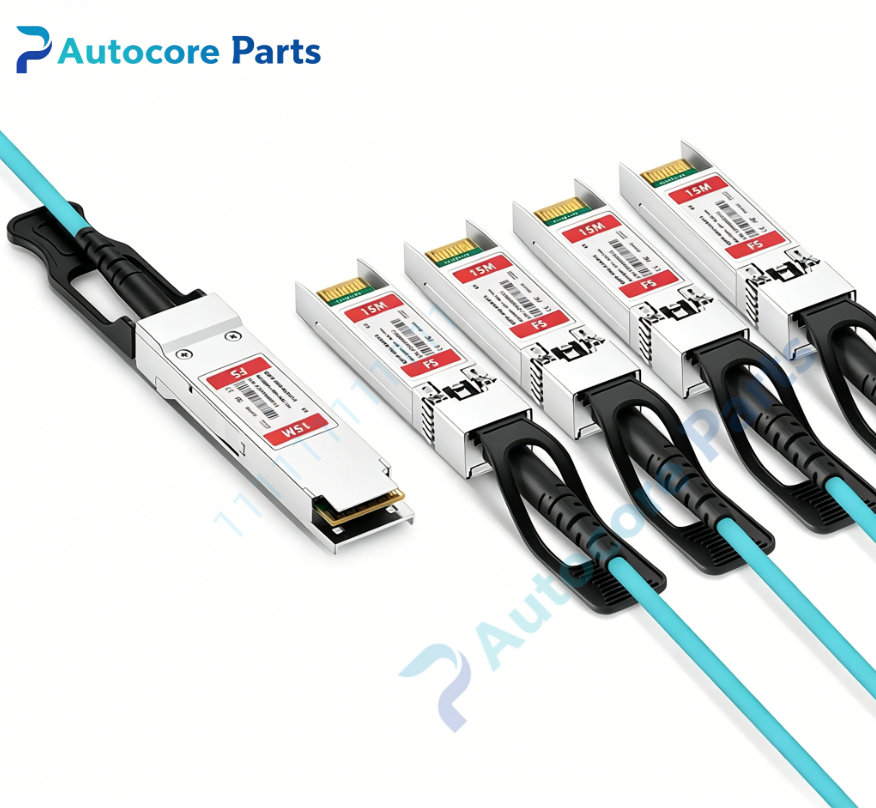

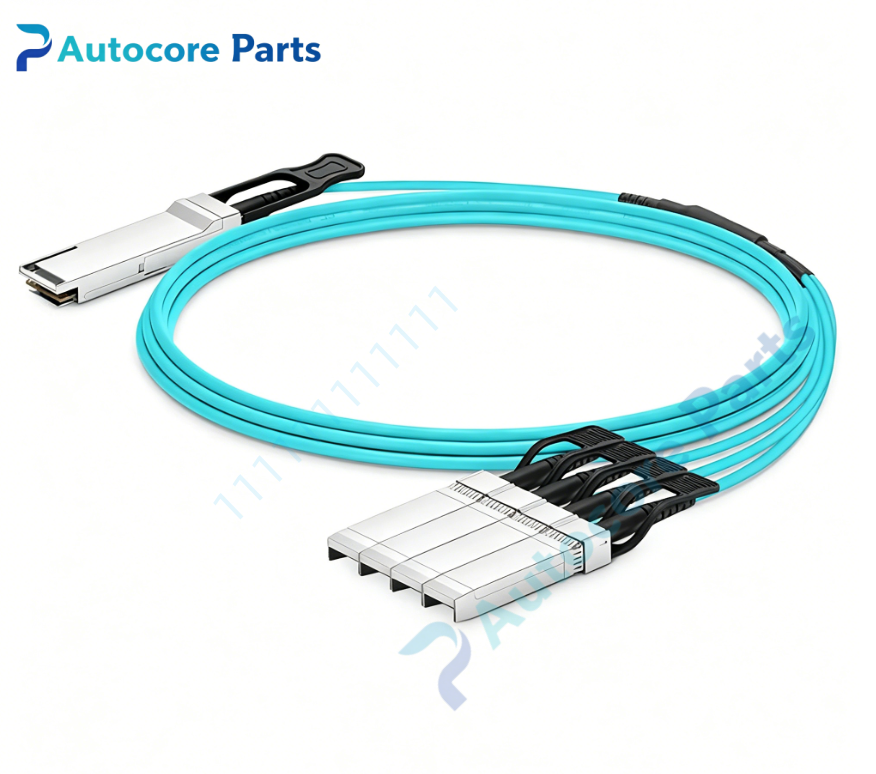

Extreme Networks 10GB-4-F15-QSF Breakout Active Optical Cable

Technical SpecificationsModel: 10GB-4-F15-QSF Brand: Extreme Networks Product Type: QSFP+ to 4×SFP+ Breakout Active Optical Cable(AOC) Mounting: Plug into QSFP+ port of Extreme rack switch Operating temperature:0℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Standard:40GBASE-SR4, breakout to 4×10GBASE-SR Wavelength:850nm Fiber type: OM3 / OM4 multimode fiber Length:15 meters Host interface: QSFP+ Breakout ports: 4×SFP+ Digital monitoring: DDM / DOM Weight:0.21 kg

System compatibility10GB-4-F15-QSF is Extreme Networks QSFP+ 40G to 4×10G breakout active optical cable. Compatible with Extreme Summit X620, X650, X670, VSP7400 switches with QSFP+ slots. Converts one 40G port into four independent 10G channels for server access. Widely used for data center rack interconnection and spare replacement.

Function10GB-4-F15-QSF integrates parallel optical transceivers within the cable assembly. It splits the 40G SR4 parallel optical lanes into four independent 10G transmission channels. It supports DDM to monitor transmit optical power, receive power, module temperature and supply voltage. It triggers alarm for optical signal loss, over-temperature or module hardware fault. Used to replace faulty breakout AOC for 40G port fan-out networking.

InstallationPower off before installation. Insert QSFP+ main end into the switch QSFP+ slot. Plug four SFP+ tails into 10G ports of servers or secondary switches. Verify module identification by ExtremeXOS/VOSS, check optical power and port link status before putting into production.

InterfaceQSFP+ edge connector, four SFP+ edge connectors, internal multimode fiber assembly, DDM digital diagnostic interface for Extreme Networks 10GB-4-F15-QSF breakout active optical cable.

FeatureOriginal Extreme Networks 15m QSFP+ breakout AOC, hot-swappable, 4-lane parallel 10G fan-out, DDM real-time monitoring, low power consumption, compliant with IEEE 802.3ae standard. This spare supports medium-distance 40G port breakout deployment inside data centers.

DiagnosticModule undetected: check insertion, slot status and switch firmware compatibility. Port link down: verify SFP+ tails, fiber path, optical power and port breakout configuration. Link flapping: inspect cable bending, cable tension and cabinet cable routing.

Product Brief10GB-4-F15-QSF is Extreme Networks 15-meter QSFP+ to 4×SFP+ breakout active optical cable. It breaks one 40G QSFP+ port into four independent 10G ports, classic spare part for data center fan-out network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
