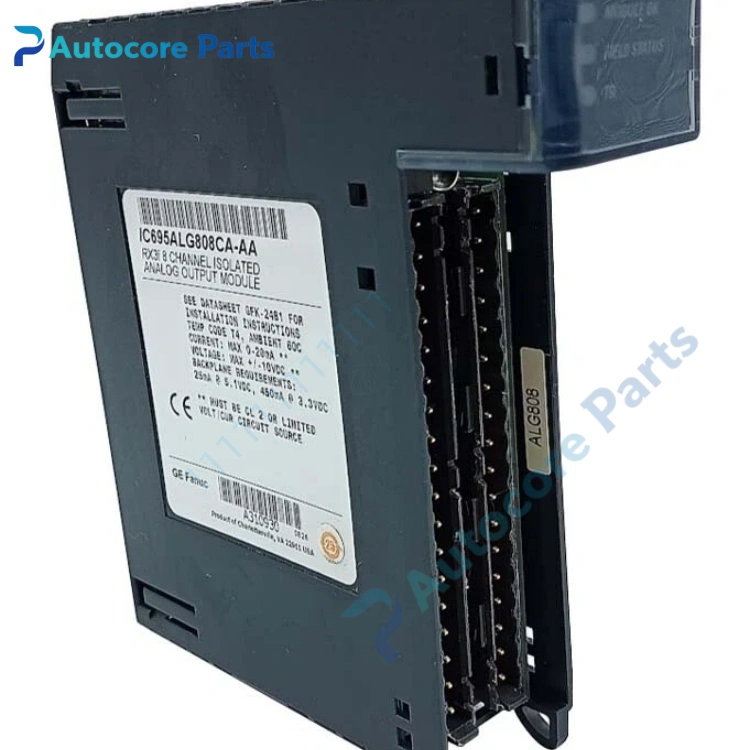

Emerson IC695ALG808CA Analog Output Module

Feature & Principle

It is Emerson PACSystems RX3i series 8-channel isolated analog output module, CA stands for conformal coated version. Each channel can be independently configured for voltage or current signal output. It converts digital signals from backplane bus into standard analog signals to control valves, regulators and frequency converters. Built-in channel diagnosis, overvoltage protection, supports hot swap, suitable for humid, dusty and corrosive industrial environments.

Specifications

Model: IC695ALG808CA Brand: Emerson (GE Fanuc) Series: PACSystems RX3i Channel: 8 isolated channels Signal range: ±10V, 0~10V, 0~20mA, 4~20mA Resolution: 15bit (±10V / 4-20mA), 14bit (0-10V) Update time: 8ms for all channels External power: 24VDC Coating: Conformal coating Installation: RX3i universal backplane rack Application: Petrochemical, water treatment, offshore and heavy industry DCS control cabinet Certification: CE, UL, ATEX, DNV

Components & Diagnostics

DAC conversion chip, isolation circuit, backplane gold finger, terminal circuit, status LED, protective coating. Common faults: output signal drift, no analog output, channel fault alarm, module cannot be identified.

Product Brief

IC695ALG808CA analog output module, Emerson RX3i conformal coated analog spare widely used for process control cabinet overhaul and replacement.
