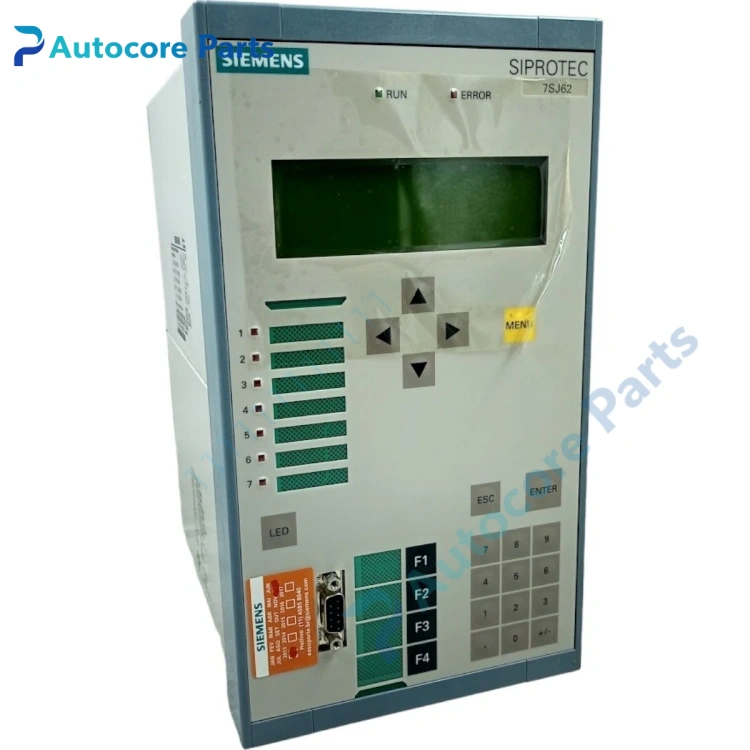

Siemens 7SJ6236 Protection Relay

Feature & Principle

It is Siemens SIPROTEC 4 series numerical feeder protection relay. It adopts microprocessor technology, integrates phase overcurrent, earth fault, directional overcurrent, breaker failure protection functions. It supports IEC/ANSI inverse time curves, collects voltage and current signals for power measurement, event recording and fault waveform capture. It can communicate with SCADA system, parameter configuration and fault analysis by DIGSI software. This model has been discontinued, used for substation feeder maintenance replacement.

Specifications

Model: 7SJ6236 Brand: Siemens Series: SIPROTEC 4 Main function: Overcurrent, earth fault, directional protection, measurement, control Communication: IEC60870-5-103, Modbus optional Power supply: 24/48/110/220V AC/DC Installation: Panel mounting Application: Medium voltage feeder, motor, generator protection cabinet Certification: CE, IEC61850 optional

Components & Diagnostics

Signal sampling unit, main CPU, display panel, communication circuit, status LED, relay output contact. Common faults: communication offline, measurement deviation, false protection tripping, parameter loss, power supply failure.

Product Brief

7SJ6236 protection relay, Siemens SIPROTEC4 feeder overcurrent protection spare widely used for substation medium voltage cabinet overhaul and replacement.
