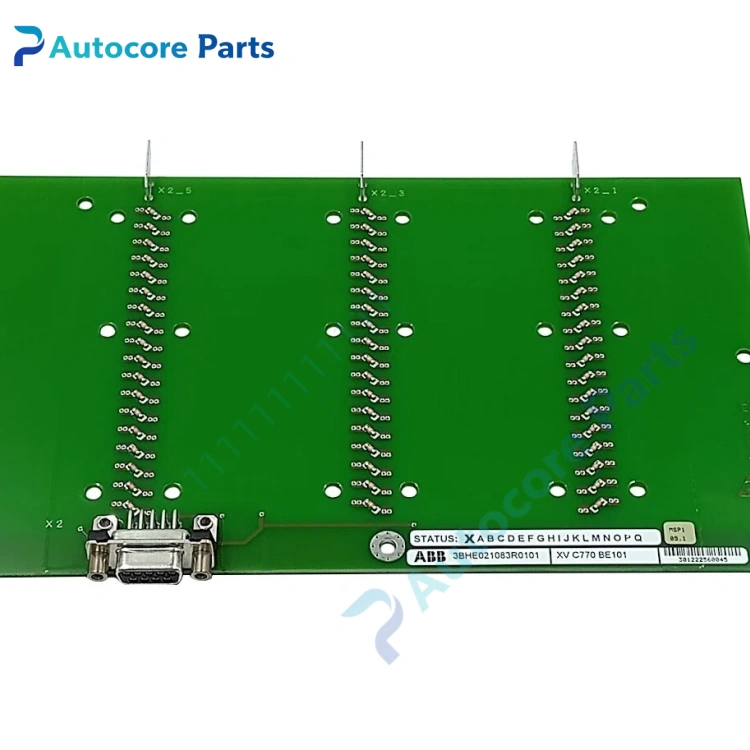

ABB 3BHE021083R0101 Drive Power Board

Feature & Principle

It is ABB XVC770BE101 supporting isolated power board, used in ACS6000 high-power medium voltage frequency converter. It provides multi-channel stable isolated power supply for IGBT gate drive circuit. Cooperate with the drive board to receive optical fiber PWM signal, complete IGBT turn-on and turn-off control, integrate DESAT short-circuit protection, active Miller clamp and fault feedback function, improve the safety and stability of power devices. This spare is mainly used for maintenance replacement of old medium voltage drive system.

Specifications

Model: 3BHE021083R0101 Brand: ABB Matching model: XVC770BE101 Application system: ACS6000 medium voltage inverter Function: Isolated power supply for IGBT gate drive Installation: Power unit plug-in Protection: Short circuit detection, drive fault feedback Certification: CE

Components & Diagnostics

High-frequency isolation transformer, rectifier circuit, electrolytic capacitor, sampling circuit, status LED, terminal. Common faults: capacitor aging, no output power, unstable drive voltage, power supply failure alarm.

Product Brief

3BHE021083R0101 drive power board, ABB ACS6000 medium voltage inverter IGBT drive spare widely used for high-power speed control cabinet overhaul and replacement.
